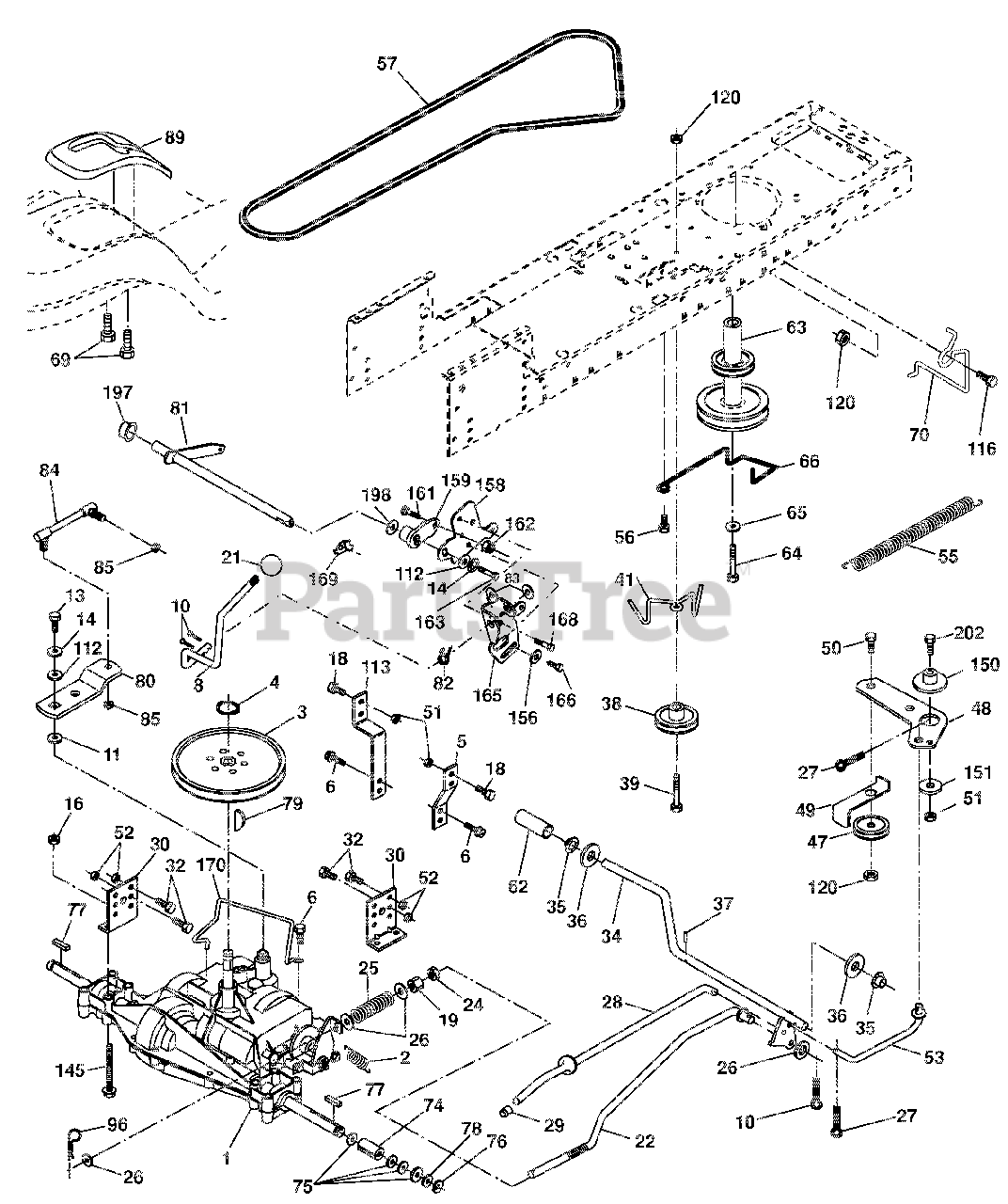

936061 (960160028-00) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Drive Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

Drive Parts Diagram

  • Title

1

TRANSAXLE PEERLESS 206-545C (165670) (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

Note: (165670) (ORDER PARTS FROM TRANSAXLE MANUFACTURER.)

$

$

Not available

2

Ariens 21547061

Spring Return Brake T/a Zinc

$

$

Not available

3

Ariens 21546071

PULLEY.TRANSAXLE.18/20"TIRES

$45.99

$

In Stock, only 1 left!

0

4

Ariens 21546052

Ring, Retainer

$

$

Not available

5

Ariens 21547062

Strap Torque 30 Degrees

$7.99

$

In Stock, only 3 left!

0

6

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

In Stock, only 2 left!

0

8

Ariens 21547063

Rod Shift Fender Adjust Lt

$

$

Not available

10

Ariens 21547064

Pin Cotter 1/8 x 1 Cad

$

$

Not available

11

Ariens 21546027

WASHER.PLATE.SHF..388 SQ.HOLE

$6.49

$

In Stock, only 2 left!

0

13

Ariens 21546800

BOLT.1/4-28 UNF.GR8.W/PATCH

$5.99

$

In Stock, only 2 left!

0

14

Ariens 21546001

Washer, Lock 1/4

$11.99

$

In Stock, only 1 left!

0

16

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

18

Ariens 21547065

Bolt, Fin Hex 3/8-16 unc x 1

$

$

Not available

19

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

21

Ariens 21547066

Knob

$7.99

$

In Stock, only 1 left!

0

22

Ariens 21547067

Rod Brake Blk Zinc 26 840

$

$

Not available

24

Ariens 21546778

Nut, Hex, Jam 3/8-16
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 21547068

Spring Rod Brake 2 00 Zinc

$6.49

$

In Stock, only 1 left!

0

26

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 5

0

27

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

28

Ariens 21547069

Rod Brake Parking LT/YT

$

$

Not available

29

Ariens 21547070

Cap Brake Parking

$

$

Not available

30

Ariens 21547898

BRACKET

$6.49

$

Usually ships in 4-12 days

0

32

Ariens 21546804

Bolt, Hex Head 5/16-18 x 3/4

$5.99

$

In Stock, only 4 left!

0

34

Ariens 21547072

Shaft Asm Pedal Foot

$

$

Not available

35

Ariens 21546061

BEARING.NYLON.BLK..629 ID.

$

$

Not available

36

Ariens 21547073

Washer 21/32 x 1 x 16 Ga.

$

$

Not available

37

Ariens 21547896

PIN.ROLL.3/16X1

$

$

Not available

38

Ariens 21547075

Pulley Composite Flat

$31.99

$

Usually ships in 4-12 days

0

39

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$4.99

$

In Stock, Qty 10

0

41

Ariens 21547076

Keeper Belt Flat Idler

$

$

Not available

47

Ariens 21547077

Pulley Idler V Groove

$37.99

$

In Stock, only 1 left!

0

48

Ariens 21547078

Bellcrank Asm

$8.99

$

Usually ships in 4-12 days

0

49

Ariens 21547079

Retainer Belt Style Spring

$6.49

$

Usually ships in 4-12 days

0

50

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

51

Ariens 21546785

Nut, Hex, Crownlock 3/8-16

$3.99

$

Usually ships in 4-12 days

0

52

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

53

Ariens 21547080

Link Clutch

$19.99

$

Usually ships in 4-12 days

0

55

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$11.99

$

Usually ships in 4-12 days

0

56

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

57

Ariens 21547082

V-Belt Ground Drive
(Superseded to 21547026)

$51.99

$

In Stock, Qty 8

0

62

Ariens 21547538

COVER PEDAL BLK ROUND

$6.49

$

Usually ships in 4-12 days

0

63

Ariens 21547083

Engine Pulley

$87.99

$

In Stock, only 1 left!

0

64

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

65

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

66

Ariens 21547084

Keeper Belt Engine Foolproof

$

$

Not available

69

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

70

Ariens 21547085

Guide Belt Mower Drive RH

$

$

Not available

74

Ariens 21546087

SPACER.AXLE.HYDRO/PEERLES

$7.49

$

In Stock, only 2 left!

0

75

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$3.49

$

Usually ships in 4-12 days

0

76

Ariens 21546051

E-RING.#5133-75
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

77

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

In Stock, only 4 left!

0

78

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

79

Ariens 21547897

KEY.WOODRUFF

$6.49

$

Usually ships in 4-12 days

0

80

Ariens 21547899

ARM.SHIFT

$10.99

$

Usually ships in 4-12 days

0

81

Ariens 21547898

BRACKET

$6.49

$

Usually ships in 4-12 days

0

82

Ariens 21547089

Spring Torsion T/a

$

$

Not available

83

Ariens 21547090

Washer 17/32 x 3/4 x 16 Ga.

$6.99

$

Usually ships in 4-12 days

0

84

Ariens 21547902

LINK

$

$

Not available

85

Ariens 21546119

NUT.LOCK.CENTER.1/4-28 FNTHD.
(Superseded to 06533400)

$1.99

$

In Stock, Qty 10

0

89

Ariens 21547903

CONSOLE.SHIFT

$

$

Not available

96

Ariens 21547536

RETAINER SPRING
(Superseded to 21546739)

$

$

Not available

112

Ariens 21546275

WASHER.9/32 X 3/4 X 10 GA.

$8.99

$

In Stock, only 1 left!

0

113

Ariens 21547093

Strap Torque LT

$

$

Not available

116

Ariens 21547039

Bolt, Carriage 3/8-16 x 1

$

$

Not available

120

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

145

Ariens 21547614

BOLT 5/16-18 X 2 1/2 G.5

$

$

Not available

150

Ariens 21547095

Spacer Retainer

$6.49

$

Usually ships in 4-12 days

0

151

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

156

Ariens 21547096

Washer Srrted 5/16ID x 1.125

$

$

Not available

158

Ariens 21547904

BRACKET
(Superseded to 21547097)

$6.99

$

Usually ships in 4-12 days

0

159

Ariens 21547098

Hub Tapered Flange Shift Lt

$9.49

$

Usually ships in 4-12 days

0

161

Ariens 21547099

Bolt Rdhd Sqnk 1/4-20 x 3/4

$

$

Not available

162

Ariens 21547100

Nut Crownlock 1/4-20 unc
(Superseded to 21546980)

$4.99

$

Usually ships in 4-12 days

0

163

Ariens 21547101

Bolt Hex Fin 1/4-20 unc x 1 Gr
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

165

Ariens 21547905

BRACKET
(Superseded to 21547102)

$

$

Not available

166

Ariens 21547103

Screw 5/16-18 x 5/8

$

$

Not available

168

Ariens 21547104

Bolt Shoulder 5/16-18 x .561

$

$

Not available

169

Ariens 21547105

Plate Fastening

$5.99

$

Usually ships in 4-12 days

0

170

Ariens 21547106

Keeper Belt Transaxle Gear

$25.99

$

In Stock, only 1 left!

0

197

Ariens 21547107

Nyliner Snap-In

$11.99

$

Usually ships in 4-12 days

0

198

Ariens 21547108

Washer Nyliner

$

$

Not available

202

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0
