936061 (960160028-00) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Chassis Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

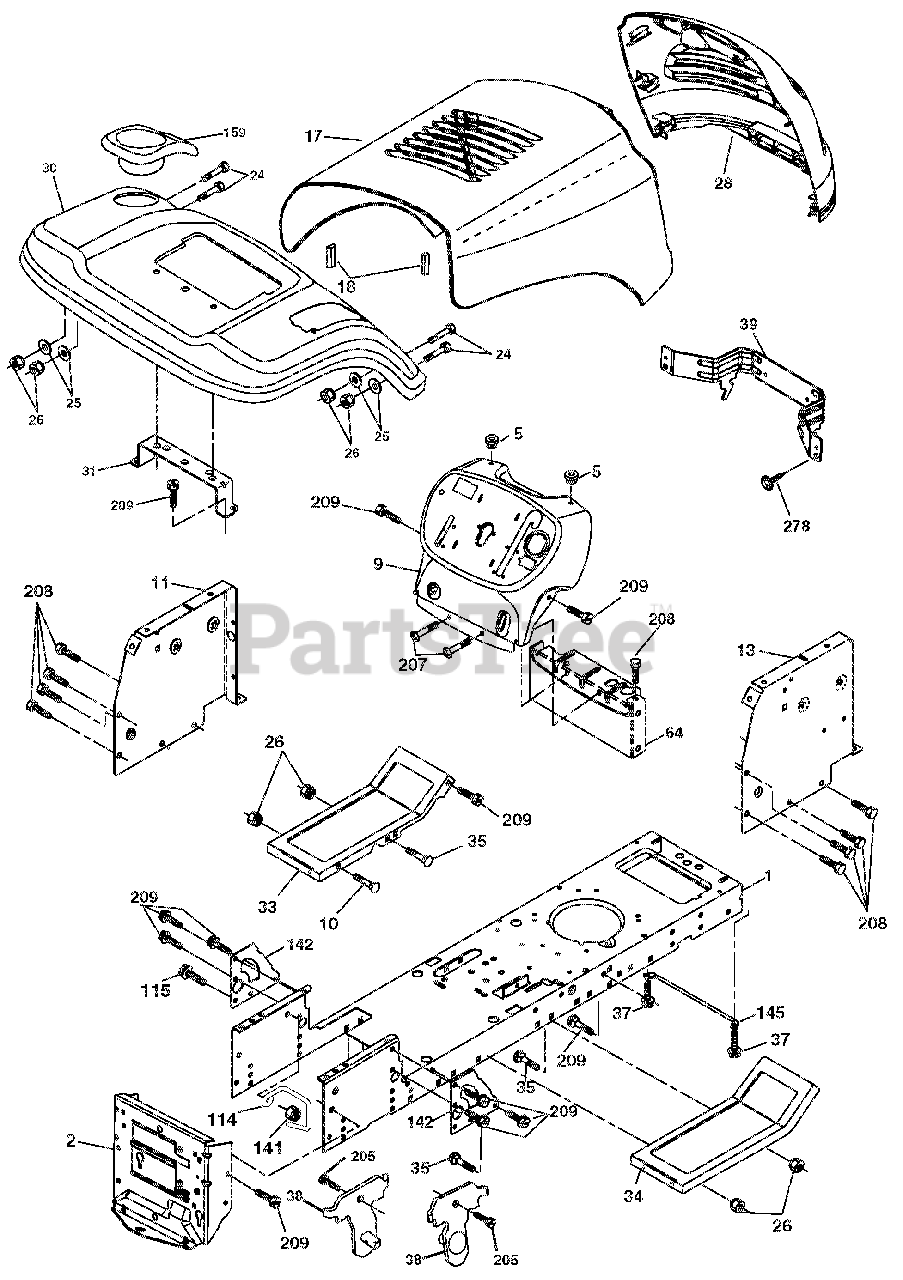

Chassis Parts Diagram

  • Title

1

Ariens 21547035

Chassis

$

$

Not available

2

Ariens 21547036

Drawbar, Stretch

$

$

Not available

5

Ariens 21547037

Bumper, Hood/Dash

$

$

Not available

9

Ariens 21547038

Dash

$44.99

$

Usually ships in 4-12 days

0

10

Ariens 21547041

Panel Slkscr Dash RH
(Superseded to 21548119)

$21.99

$

Usually ships in 4-12 days

0

11

Ariens 21547040

Panel Dash LH

$14.99

$

Usually ships in 4-12 days

0

13

Ariens 21547041

Panel Slkscr Dash RH
(Superseded to 21548119)

$21.99

$

Usually ships in 4-12 days

0

17

Ariens 21547890

HOOD

$

$

Not available

18

Ariens 21546230

BUMPER.HOOD.LARGE. 1.75"

$7.49

$

In Stock, only 2 left!

0

24

Ariens 21547043

Bolt Fin Hex 3/8-16 unc x 1 Gr

$

$

Not available

25

Ariens 21546283

Washer 13/32 x 13/16 x 12 Ga.
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

28

Ariens 21547891

GRILLE

$141.99

$

Usually ships in 4-12 days

0

30

Ariens 21547893

FENDER
(Superseded to 21547046)

$133.99

$

Usually ships in 4-12 days

0

31

Ariens 21547047

Bracket Fender Repl 109873X

$

$

Not available

33

Ariens 21547925

FOOTREST LH

$

$

Not available

34

Ariens 21547926

FOOTREST RH

$22.99

$

Usually ships in 4-12 days

0

35

Ariens 21547050

Bolt Rdhd Sht Sqnk 3/8-16 x 3/

$3.49

$

In Stock, only 1 left!

0

37

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

38

Ariens 21547051

Bracket Asm. Pivot Mower

$

$

Not available

39

Ariens 21547052

Bracket Pivot

$28.99

$

Usually ships in 4-12 days

0

64

Ariens 21547053

Dash Lower

$20.99

$

Usually ships in 4-12 days

0

114

Ariens 21547894

KEEPER.BELT.REAR

$

$

Not available

115

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

141

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

142

Ariens 21547054

Plate Reinforcement

$

$

Not available

145

Ariens 21546636

ROD.PIVOT.HOOD

$

$

Not available

159

Ariens 21547895

CUPHOLDER

$

$

Not available

205

Ariens 21547056

Screw Thdrol 3/8-16 x 1/2
(Superseded to 07412900)

$1.49

$

In Stock, Qty 20+

0

207

Ariens 21547057

Screw 5/16-18 x 1/2
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

208

Ariens 21546208

SCREW.THDROL.3/8-16X1/2.TYT.BL

$6.49

$

Usually ships in 4-12 days

0

209

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

212

Ariens 21547058

Insert Lens Reflect

$14.99

$

Usually ships in 4-12 days

0

278

Ariens 21546675

Screw

$

$

Not available

- -

Ariens 21547059

Plug Button Blk 359 Dia Choke

$

$

Not available

- -

Ariens 21547060

Plug Dome Plastic

$

$

Not available
