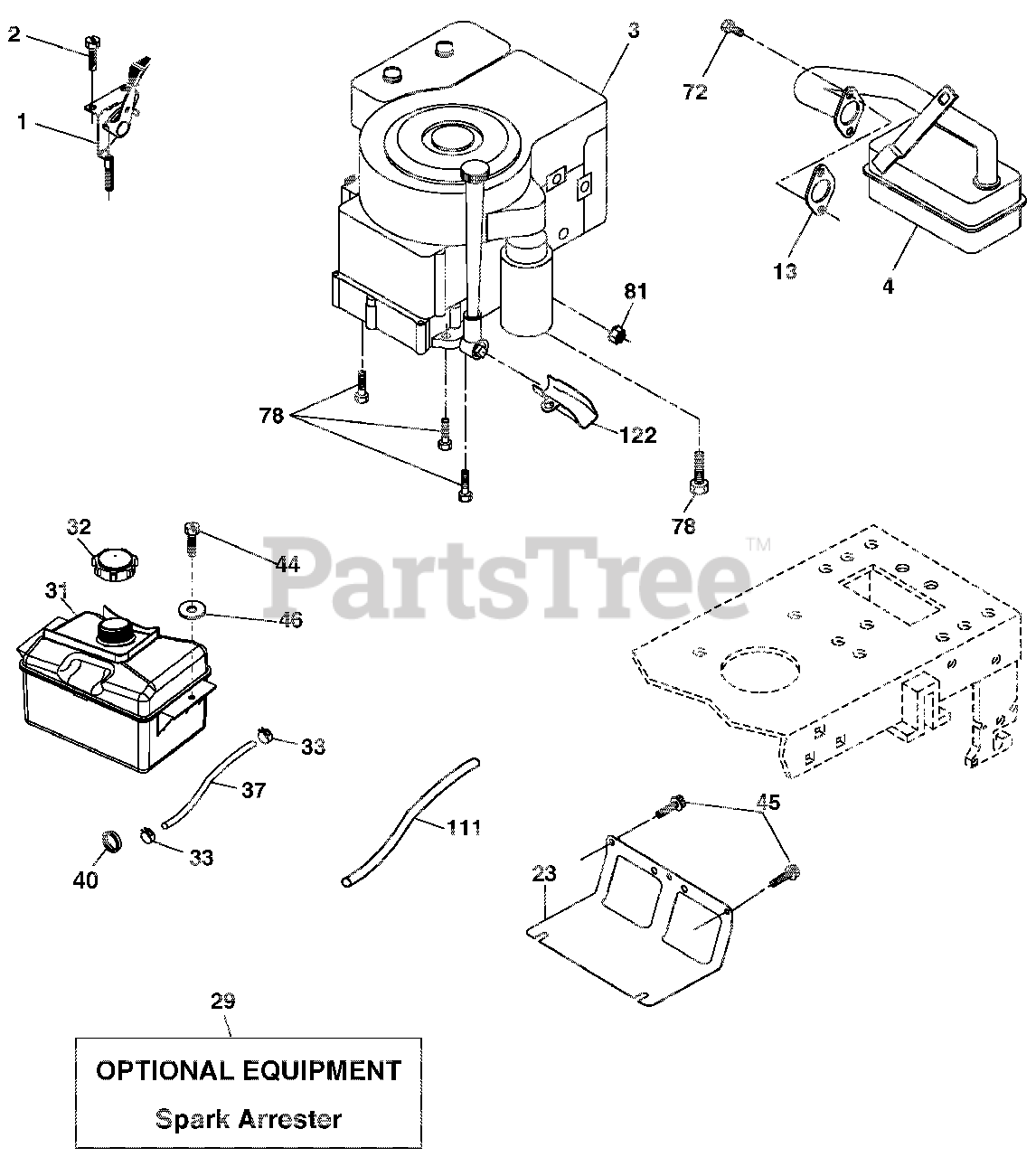

936060 (960160027-02) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Engine Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

Engine Parts Diagram

  • Title

1

Ariens 21547109

Control Th/ch Flag

$

$

Not available

2

Ariens 21546210

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 4-12 days

0

3

ENGINE, B&S 31C707-3346-G5(438207) (ORDER PARTS FROM ENGINE MANUFACTURER.)

Note: (438207) (ORDER PARTS FROM ENGINE MANUFACTURER.)

$

$

Not available

4

Ariens 21547110

Muffler Exhaust B&S

$45.99

$

In Stock, only 3 left!

0

13

Ariens 21547111

Gasket Eng 1 313 Id Tin Plated
(Superseded to 21547224)

$5.49

$

In Stock, Qty 20+

0

23

Ariens 21547112

Shield BRN/DBR Guard

$

$

Not available

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

31

Ariens 21547828

TANK FUEL

$87.99

$

In Stock, only 1 left!

0

32

Ariens 21548118

CAP.FUEL
(Superseded to 21547731)

$37.99

$

Usually ships in 4-12 days

0

33

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

40

Ariens 21547114

Bushing Snap Nyl Blk Fuel Line

$

$

Not available

44

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

45

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

72

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, only 4 left!

0

78

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

81

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

111

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0

122

Ariens 21547116

Extension Drain Oil

$40.99

$

In Stock, Qty 8

0
