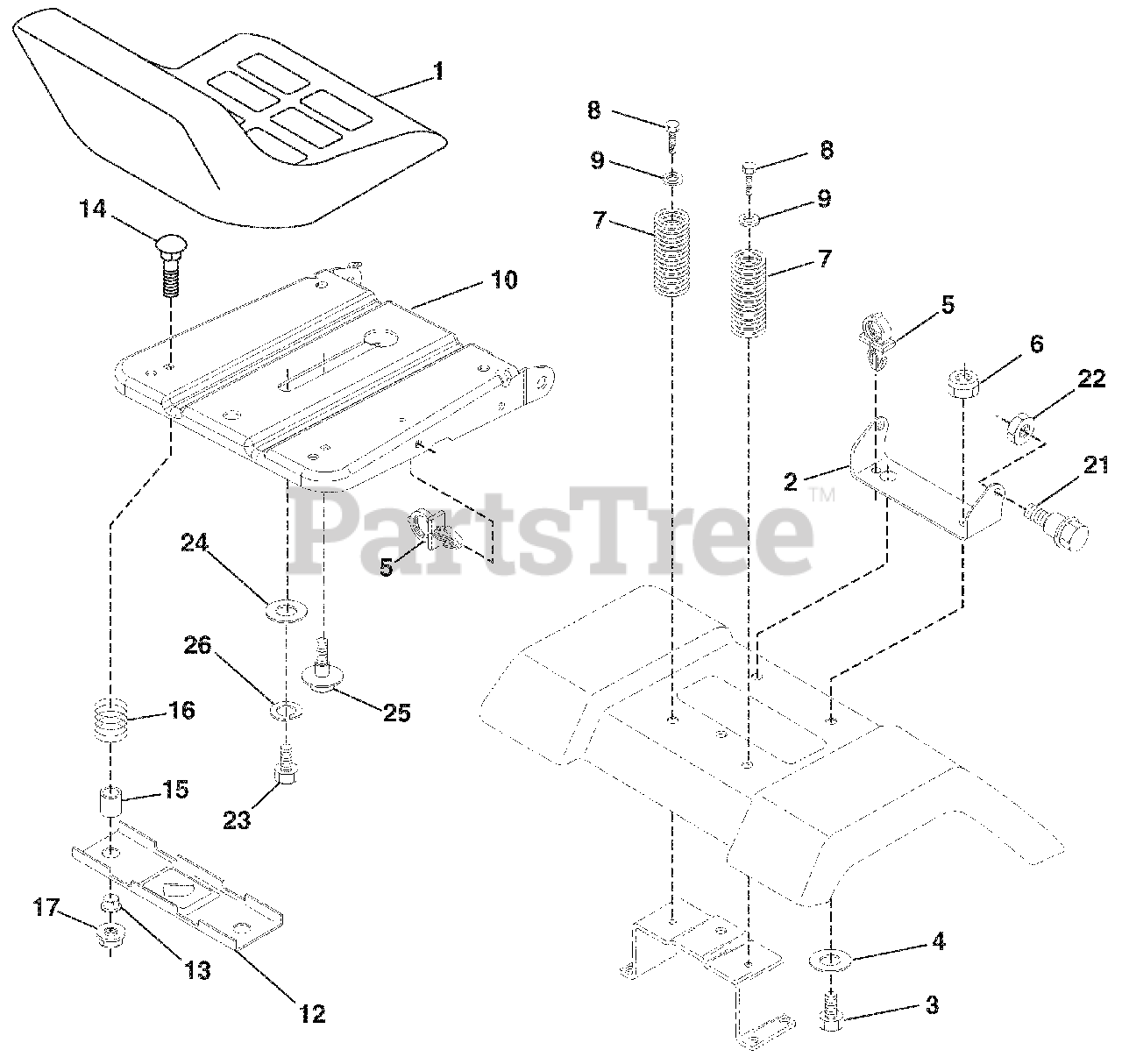

936060 (960160027-00) - Ariens 42" Lawn Tractor, Briggs & Stratton, Gear Seat Parts Diagram

42" Lawn Tractor, Briggs & Stratton, Gear

Seat Parts Diagram

  • Title

1

Ariens 21547913

SEAT

$206.99

$

Usually ships in 4-12 days

0

2

Ariens 21547156

Bracket Seat Pivot

$6.49

$

Usually ships in 4-12 days

0

3

Ariens 21547157

Bolt Hex 3/8 - 16 x 1

$5.49

$

In Stock, only 1 left!

0

4

Ariens 21547158

Washer 13/32 x 1 x10 Ga.

$

$

Not available

5

Ariens 21546110

CLIP.PUSH-IN.HINGED

$

$

Not available

6

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 21546074

SPRING.SEAT.CPRSN.2.250.BLK.ZI
(Superseded to 21549013)

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 2 left!

0

9

Ariens 21547159

Washer 13/32 x 1 x 14 Ga.

$

$

Not available

10

Ariens 21547160

Pan Pnt Seat

$

$

Not available

12

Ariens 21547161

Bracket Pnt Mounting Switch

$

$

Not available

13

Ariens 21546065

BUSHING.SNAP.BLK.NYL..50 ID.

$6.49

$

Usually ships in 4-12 days

0

14

Ariens 21546759

BOLT.RDHD.SHT.NK.1/4-20X1-1/2

$

$

Not available

15

Ariens 21546086

SPACER.SPLIT..28X.96.YEL.ZINC

$13.99

$

In Stock, only 2 left!

0

16

Ariens 21547162

Spring Cprsn

$9.49

$

In Stock, only 2 left!

0

17

Ariens 21546073

NUT.LOCK.1/4 LGE.FLG.GR.5.ZINC

$

$

Not available

21

Ariens 21546189

BOLT.SHLD.5/16-18 UNC-2A.BLK D

$6.49

$

Usually ships in 4-12 days

0

22

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 21547163

Bolt Hex

$11.99

$

In Stock, only 1 left!

0

24

Ariens 21546290

WASHER.17/32 X 1-3/16 X 12 GA.

$7.49

$

In Stock, only 1 left!

0

25

Ariens 21547164

Bolt Shoulder 5/16-18 x .62

$6.49

$

In Stock, only 1 left!

0

26

Ariens 21547165

Washer Lock Hvy Hlcl Spr 1/2

$9.49

$

In Stock, only 1 left!

0
