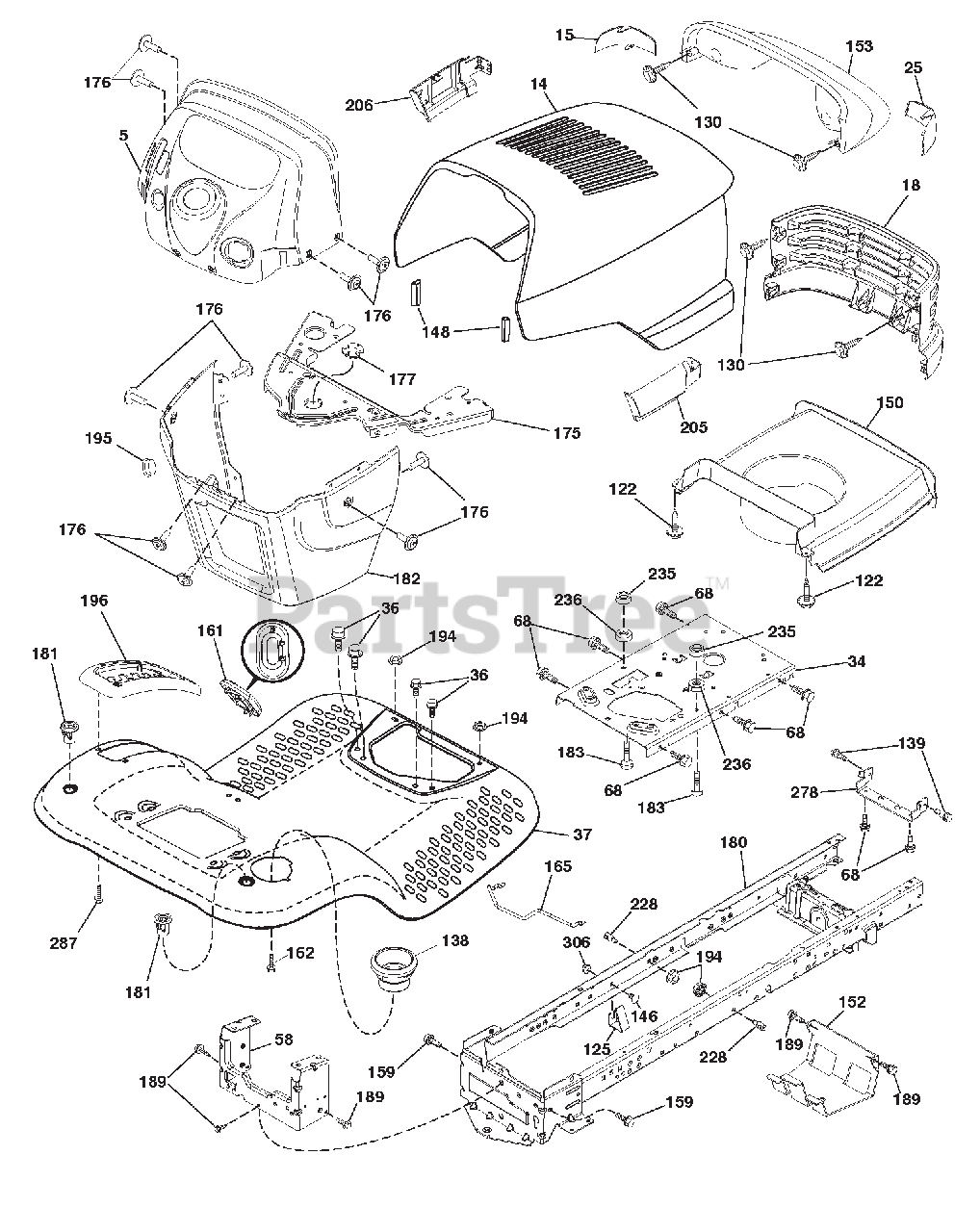

936059 (960460039-00) - Ariens 54" Lawn Tractor, 25hp Kohler, Hydro Chassis Parts Diagram

54" Lawn Tractor, 25hp Kohler, Hydro

Chassis Parts Diagram

  • Title

5

Ariens 21547776

DASH

$

$

Not available

14

Ariens 21547739

HOOD

$

$

Not available

15

Ariens 21547543

LENS ELITE ARIENS BLACK

$

$

Not available

18

Ariens 21547703

GRILLE

$

$

Not available

25

Ariens 21547544

LENS ELITE HUSQ CLEAR RH

$75.99

$

Usually ships in 4-12 days

0

34

Ariens 21546384

PLATE.ENGINE.WELDED.CHASSIS

$50.99

$

Usually ships in 4-12 days

0

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21547936

FENDER

$

$

Not available

58

Ariens 21546643

DRAWBAR.UPPER.2PC.SML.FENDER

$

$

Not available

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

122

Ariens 21547529

SCREW TO 32 X 5/8

$

$

Not available

125

Ariens 21548397

CLIP.FUEL.LINE

$

$

Not available

130

Ariens 21546675

Screw

$

$

Not available

138

Ariens 21547560

CUPHOLDER TL TEX 428

$7.99

$

Usually ships in 4-12 days

0

139

Ariens 21547301

BOLT SHOULDER 5/16-18

$

$

Not available

146

Ariens 21548398

BOLT

$

$

Not available

148

Ariens 21547545

BUMPER HOOD LARGE 1.75

$

$

Not available

150

Ariens 21547552

AIR DUCT ENGINE ELITE SV

$

$

Not available

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

153

Ariens 21547530

ASM LIGHT BOX

$

$

Not available

159

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

161

Ariens 21547807

WINDOW FUEL

$8.99

$

Usually ships in 4-12 days

0

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

165

Ariens 21546413

SUPPORT.TANK.REAR.W/TEX

$

$

Not available

175

Ariens 21547554

CROSSMEMBER LT

$29.99

$

Usually ships in 4-12 days

0

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$10.99

$

Usually ships in 4-12 days

0

177

Ariens 21546356

BUSHING.STEERING.YT/GT

$6.99

$

In Stock, Qty 15

0

180

Ariens 21546670

CHASS.WLDMT.TL.12GA/2PC.18/22"

$258.99

$

Usually ships in 4-12 days

0

181

Ariens 21547557

BUSHING MNT FEND CRGO BLK TEX

$6.49

$

Usually ships in 4-12 days

0

182

Ariens 21547553

DASH TOWER LT CCS

$64.99

$

Usually ships in 4-12 days

0

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

195

Ariens 21547532

PLUG HOLE DASH TOWER

$

$

Not available

196

Ariens 21547871

CONSOLE ASM.DECKLFT.BL/RBT.TLT

$

$

Not available

205

Ariens 21547701

SKIRT SIDE RH

$

$

Not available

206

Ariens 21547702

SKIRT SIDE LH
(Superseded to 21547550)

$

$

Not available

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.49

$

Usually ships in 4-12 days

0

278

Ariens 21547317

X-PIECE HOOD

$

$

Not available

287

Ariens 21546204

SCREW.HEX.WASHEAD.1/4-20 X 3/8

$6.49

$

In Stock, only 2 left!

0

306

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0
