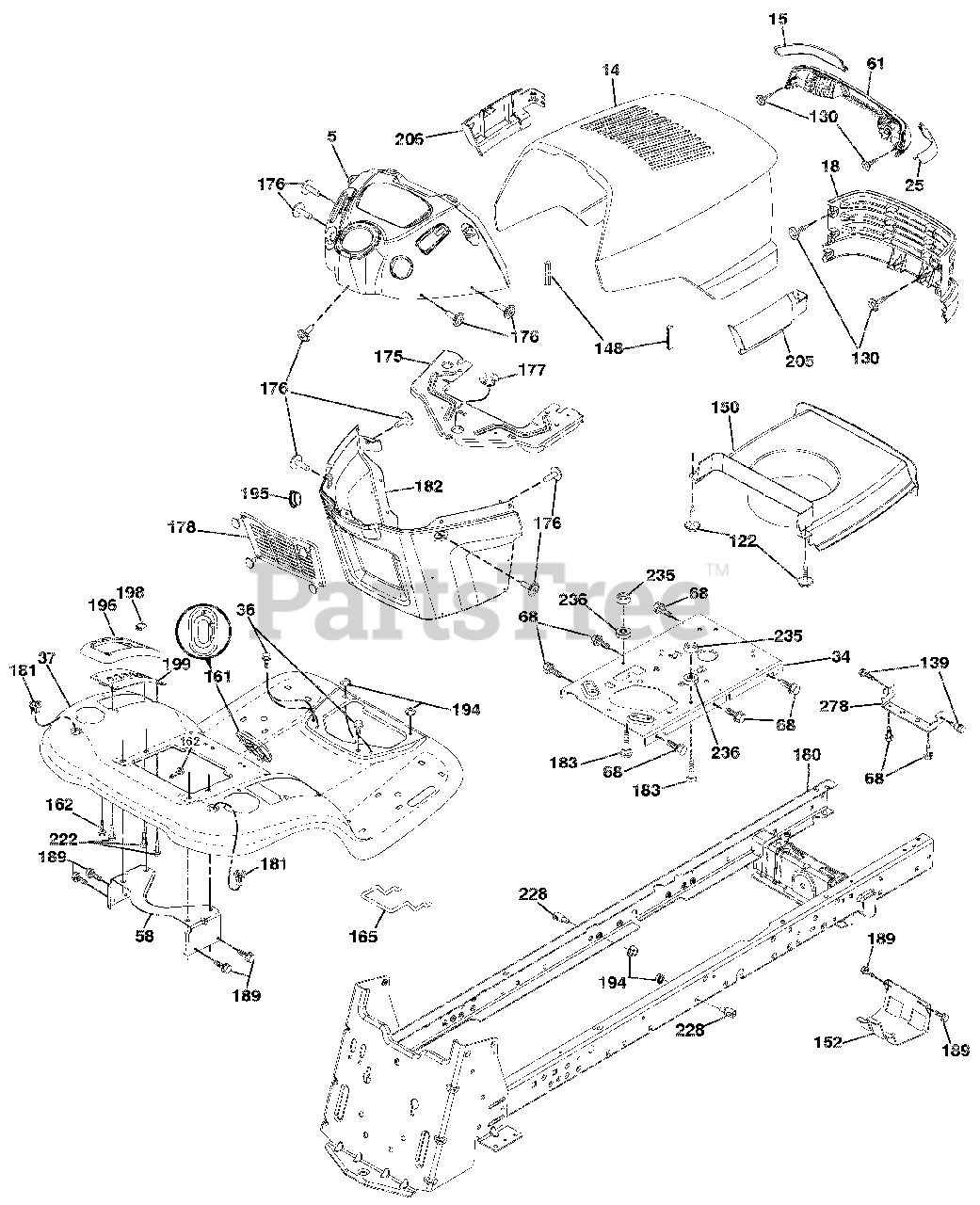

936054 (960460027-00) - Ariens 54" Lawn Tractor, 25hp Kohler, Gear Chassis Parts Diagram

54" Lawn Tractor, 25hp Kohler, Gear

Chassis Parts Diagram

  • Title

5

Ariens 21547776

DASH

$

$

Not available

14

Ariens 21547739

HOOD

$

$

Not available

15

Ariens 21547543

LENS ELITE ARIENS BLACK

$

$

Not available

18

Ariens 21547763

GRILLE

$

$

Not available

25

Ariens 21547544

LENS ELITE HUSQ CLEAR RH

$75.99

$

Usually ships in 4-12 days

0

34

Ariens 21546384

PLATE.ENGINE.WELDED.CHASSIS

$50.99

$

Usually ships in 4-12 days

0

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21547783

FENDER

$

$

Not available

58

Ariens 21547310

FENDER SUPPORT BRACKET

$

$

Not available

61

Ariens 21547530

ASM LIGHT BOX

$

$

Not available

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

122

Ariens 21547529

SCREW TO 32 X 5/8

$

$

Not available

130

Ariens 21546675

Screw

$

$

Not available

139

Ariens 21547301

BOLT SHOULDER 5/16-18

$

$

Not available

148

Ariens 21547545

BUMPER HOOD LARGE 1.75

$

$

Not available

150

Ariens 21547552

AIR DUCT ENGINE ELITE SV

$

$

Not available

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

161

Ariens 21547778

CONSOLE FUEL WINDOW

$

$

Not available

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

165

Ariens 21546413

SUPPORT.TANK.REAR.W/TEX

$

$

Not available

175

Ariens 21547554

CROSSMEMBER LT

$29.99

$

Usually ships in 4-12 days

0

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$10.99

$

Usually ships in 4-12 days

0

177

Ariens 21546356

BUSHING.STEERING.YT/GT

$6.99

$

In Stock, Qty 15

0

178

Ariens 21547531

CARGO ASM NET

$

$

Not available

180

Ariens 21547315

CHASSIS

$362.99

$

Usually ships in 4-12 days

0

181

Ariens 21547557

BUSHING MNT FEND CRGO BLK TEX

$6.49

$

Usually ships in 4-12 days

0

182

Ariens 21547553

DASH TOWER LT CCS

$64.99

$

Usually ships in 4-12 days

0

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

195

Ariens 21547532

PLUG HOLE DASH TOWER

$

$

Not available

196

Ariens 21547777

CONSOLE ASM. DECK LIFT

$

$

Not available

198

Ariens 21547784

INDICATOR DECK LIFT

$17.99

$

Usually ships in 4-12 days

0

199

Ariens 21547316

PLATE DECK LIFT

$

$

Not available

205

Ariens 21547549

SKIRT SIDE RH ELITE HUSQ 428
(Superseded to 21547679)

$

$

Not available

206

Ariens 21547550

SKIRT SIDE LH ELITE 428

$

$

Not available

222

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.49

$

Usually ships in 4-12 days

0

278

Ariens 21547317

X-PIECE HOOD

$

$

Not available

- -

Ariens 21547533

PLUG CRUISE CONTORL

$

$

Not available
