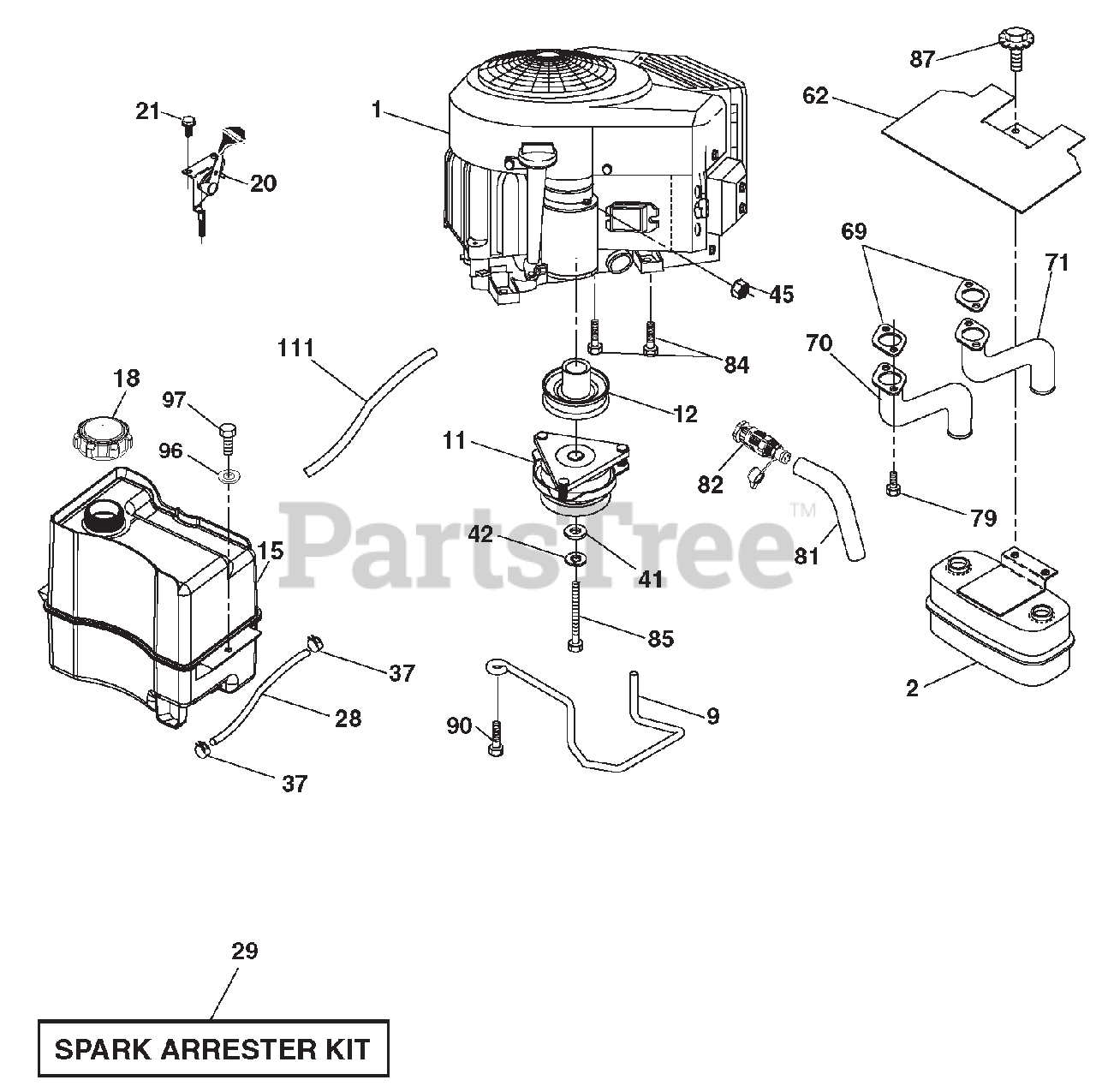

936053 (960460026-02) - Ariens 46" Lawn Tractor, 22hp Briggs & Stratton, Hydro Engine Parts Diagram

46" Lawn Tractor, 22hp Briggs & Stratton, Hydro

Engine Parts Diagram

  • Title

1

ENGINE BRIGGS MODEL NO. 407777-1580-G1(442256) (ORDER PARTS FROM ENGINE MANUFACTURER)

Note: (442256) (ORDER PARTS FROM ENGINE MANUFACTURER)

$

$

Not available

2

Ariens 21546118

MUFFLER ASM.TWIN.LO-TONE

$74.99

$

Usually ships in 4-12 days

0

9

Ariens 21546327

KEEPER.BELT.ENGINE.4.25"NSTG
(Superseded to 21548399)

$

$

Not available

11

Ariens 21546552

CLUTCH.ELECTRIC.LT.1"CRANK

$399.99

$

Usually ships in 4-12 days

0

12

Ariens 21546604

PULLEY.ENGINE.TUFFTORQE.1"CRK.

$

$

Not available

15

Ariens 21547650

TANK FUEL SIDE FILL 3.OO GA.

$

$

Not available

18

Ariens 21547651

CAP FUEL

$63.99

$

In Stock, only 1 left!

0

20

Ariens 21547806

CONTROL THROTTLE/CHOKE

$30.99

$

In Stock, only 1 left!

0

21

Ariens 21546675

Screw

$

$

Not available

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

62

Ariens 21547370

SHIELD.HEAT.MUFFLER.

$

$

Not available

69

Ariens 21547297

GASKET MUFFLER

$

$

Not available

70

Ariens 21548498

EXHAUST TUBE LH

$

$

Not available

71

Ariens 21548499

EXHAUST TUBE RH

$

$

Not available

79

Ariens 21547307

SCREW SOCKET HEAD 5/16-18 X 1

$6.99

$

Usually ships in 4-12 days

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$6.99

$

In Stock, only 4 left!

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

87

Ariens 21547321

BOLT.5/16-18 UNC X 1 W/SEMS.BL

$6.49

$

Usually ships in 4-12 days

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

111

Ariens 21547652

PURGE.LINE.CARB 3/16
(Superseded to 21546660)

$25.99

$

Usually ships in 4-12 days

0
