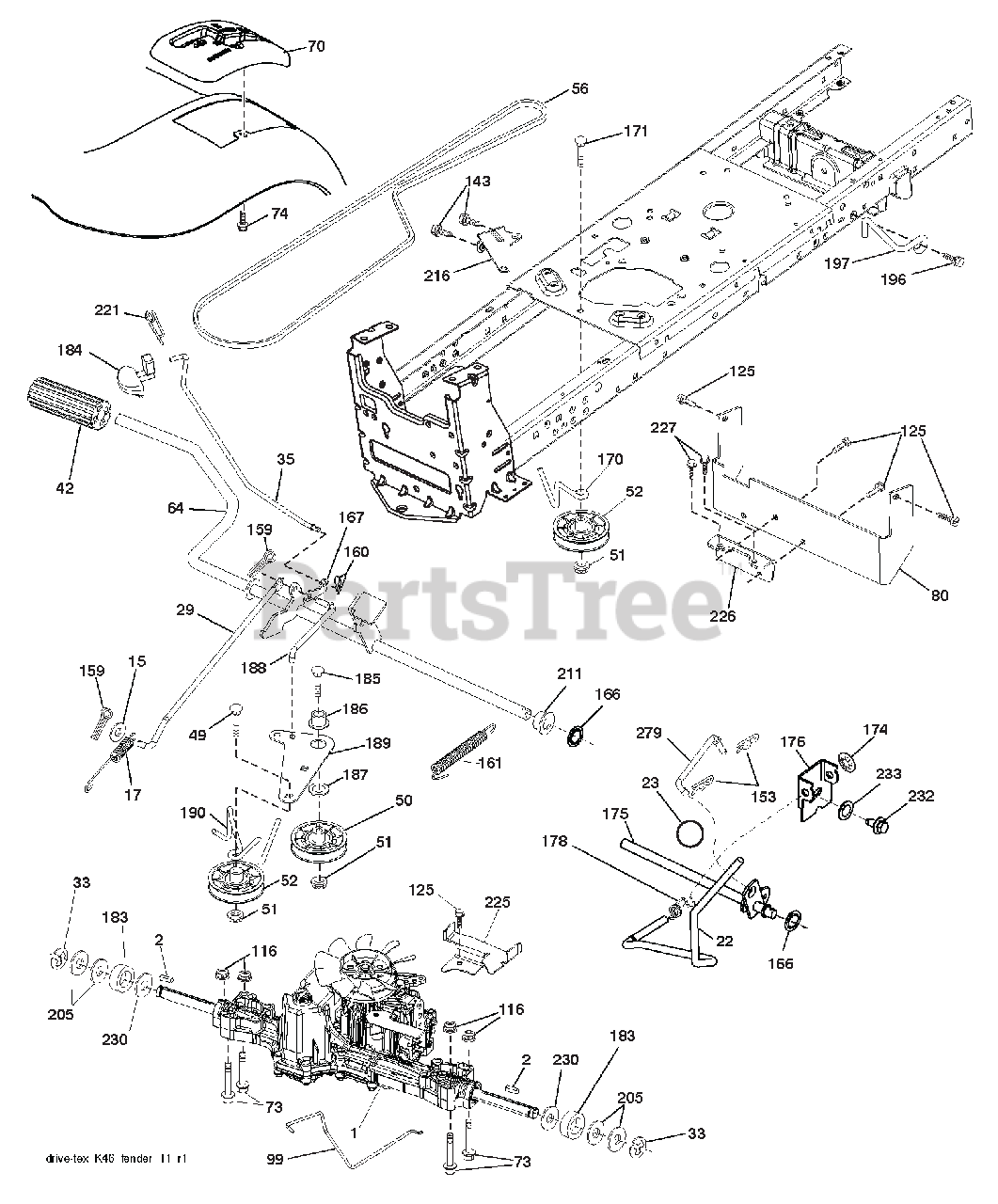

936053 (960460026-01) - Ariens 46" Lawn Tractor, 22hp Briggs & Stratton, Hydro Drive Parts Diagram

46" Lawn Tractor, 22hp Briggs & Stratton, Hydro

Drive Parts Diagram

  • Title

1

Ariens 21547826

TRANSAXLE, TUFFTORQ K46BA
(Superseded to 21548048)

Note: (408214) (ORDER PARTS FROM TRANSAXLE MANUFACTURER)

$

$

Not available

2

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

In Stock, only 4 left!

0

15

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 5

0

17

Ariens 21546654

SPRING.BRAKE.K46.GREEN

$7.99

$

In Stock, only 1 left!

0

22

Ariens 21546450

ROD.SHIFT.FENDER.TLT.2006

$234.99

$

Usually ships in 4-12 days

0

23

Ariens 21546844

KNOB DELUXE

$

$

Not available

29

Ariens 21546593

ROD.BRAKE.K46

$34.99

$

Usually ships in 4-12 days

0

33

Ariens 21546051

E-RING.#5133-75
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 21547556

ROD BRAKE PARKING LT TEX

$

$

Not available

42

Ariens 21547538

COVER PEDAL BLK ROUND

$6.49

$

Usually ships in 4-12 days

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$20.99

$

In Stock, Qty 16

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$22.99

$

Usually ships in 4-12 days

0

56

Ariens 21546080

V-BELT.MOWER.92.40.42/K46

$30.99

$

Usually ships in 4-12 days

0

64

Ariens 21546387

SHAFT ASM.PEDAL.BRAKE CONTROL

$

$

Not available

70

Ariens 21547563

CONSOLE SHIFT STL HYD BLACK TX

$23.99

$

Usually ships in 4-12 days

0

73

Ariens 21546798

BOLT.HEX.FLGHD.5/16-18.GR.5

$4.99

$

Usually ships in 4-12 days

0

74

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

80

Ariens 21547733

STRAP.TORQUE.K46/18"TEX

$

$

Not available

99

Ariens 21546674

ROD.SPRING.BYPASS.K46.LT.Z

$13.99

$

Usually ships in 4-12 days

0

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

143

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

153

Ariens 21547536

RETAINER SPRING
(Superseded to 21546739)

$

$

Not available

159

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

Note: (M).DIA.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$11.99

$

Usually ships in 4-12 days

0

166

Ariens 21547349

NUT PUSH .625

$6.49

$

In Stock, only 2 left!

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.99

$

Usually ships in 4-12 days

0

170

Ariens 21547311

KEEPER BELT CENTERSPAN

$7.49

$

In Stock, only 1 left!

0

171

Ariens 21546767

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2
(Superseded to 06203200)

$2.99

$

In Stock, Qty 20+

0

174

Ariens 21546431

NUT.PUSH..500

$6.49

$

In Stock, only 2 left!

0

175

Ariens 21547558

SHAFT ARM SHIFT

$25.99

$

Usually ships in 4-12 days

0

176

Ariens 21546394

ARM.CLEVIS.ROD.SHIFT

$

$

Not available

178

Ariens 21546445

SPRING.SHIFT.GT.2006

$

$

Not available

183

Ariens 21546087

SPACER.AXLE.HYDRO/PEERLES

$7.49

$

In Stock, only 2 left!

0

184

Ariens 21547738

HANDLE.PARKING BRAKE.

$

$

Not available

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$4.99

$

In Stock, Qty 10

0

186

Ariens 21546328

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$24.99

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$

$

Not available

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.99

$

In Stock, only 2 left!

0

196

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

197

Ariens 21546374

LINK.CLUTCH.ANTI-ROTATIN.1"CRK

$8.99

$

In Stock, only 4 left!

0

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

211

Ariens 21546393

BUSHING.SHAFT.BRAKE.HAND CONTR

$6.49

$

In Stock, only 1 left!

0

216

Ariens 21546385

BRACKET.PULLEY.IDLER.WTEX

$7.49

$

Usually ships in 4-12 days

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.49

$

In Stock, only 2 left!

0

225

Ariens 21546589

KEEPER.BELT.TRANSAXLE.K46

$

$

Not available

226

Ariens 21546575

BRACKET.MOUNT.TORQUE.K46.TLT

$18.99

$

Usually ships in 4-12 days

0

227

Ariens 21547613

SCREW 5/16-18 X 3/4

$

$

Not available

230

Ariens 21546272

WASHER.HARDEN..793 X 1.637X060

$4.99

$

In Stock, Qty 20+

0

232

Ariens 21546818

BOLT.FIN HEX.7/16-14X1 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

233

Ariens 21546609

WASHER.SERRATED

$

$

Not available

279

Ariens 21547580

LINK SHIFT T/A

$

$

Not available
