936052 (960460025-00) - Ariens 42" Lawn Tractor, 22hp Briggs & Stratton, Hydro Seat Parts Diagram

42" Lawn Tractor, 22hp Briggs & Stratton, Hydro

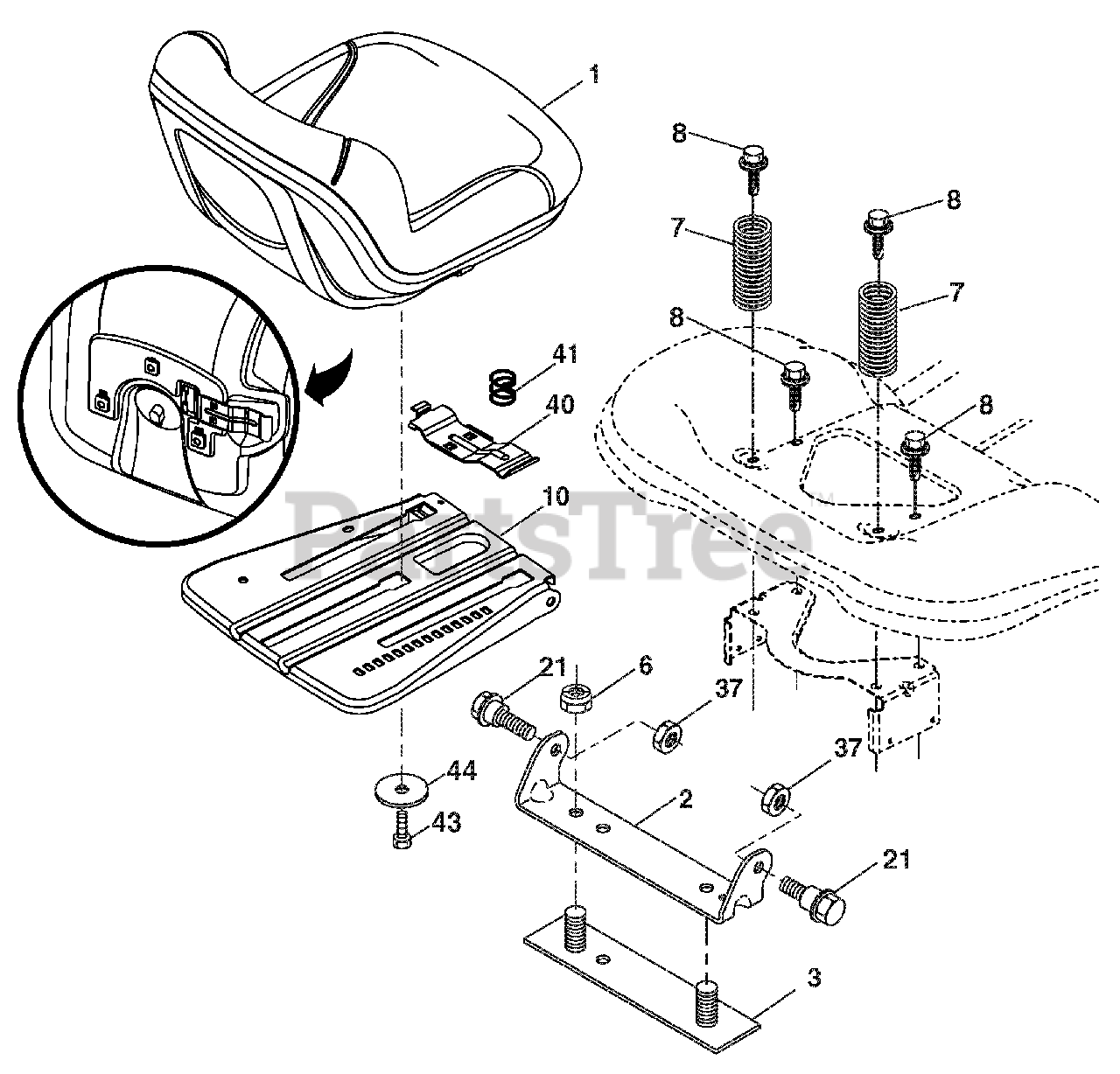

Seat Parts Diagram

  • Title

1

Ariens 21546703

SEAT.TA150.KB/SLD.BLK.ARIENS

$

$

Not available

2

Ariens 21546216

BRACKET.PIVOT.FENDER.2002

$

$

Not available

3

Ariens 21546101

STRAP ASM.FENDER.94

$

$

Not available

6

Ariens 21546787

Locknut, Washer Insert 3/8-16
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 21546074

SPRING.SEAT.CPRSN.2.250.BLK.ZI
(Superseded to 21549013)

$13.99

$

Usually ships in 4-12 days

0

8

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 6

0

10

Ariens 21546414

PAN ASM.SEAT.3PT.

$

$

Not available

21

Ariens 21546189

BOLT.SHLD.5/16-18 UNC-2A.BLK D

$6.49

$

Usually ships in 4-12 days

0

37

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

40

Ariens 21546451

HANDLE.SLIDE.SEAT.TEX.MILSCO

$

$

Not available

41

Ariens 21546473

SPRING.LATCH.SEAT.TEX

$6.49

$

Usually ships in 4-12 days

0

43

Ariens 21546810

BOLT.FIN.HEX.3/8-16UNC X 3/4
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 21546288

WASHER.13/32 X 2 3/8 X 12GA.

$

$

Not available
