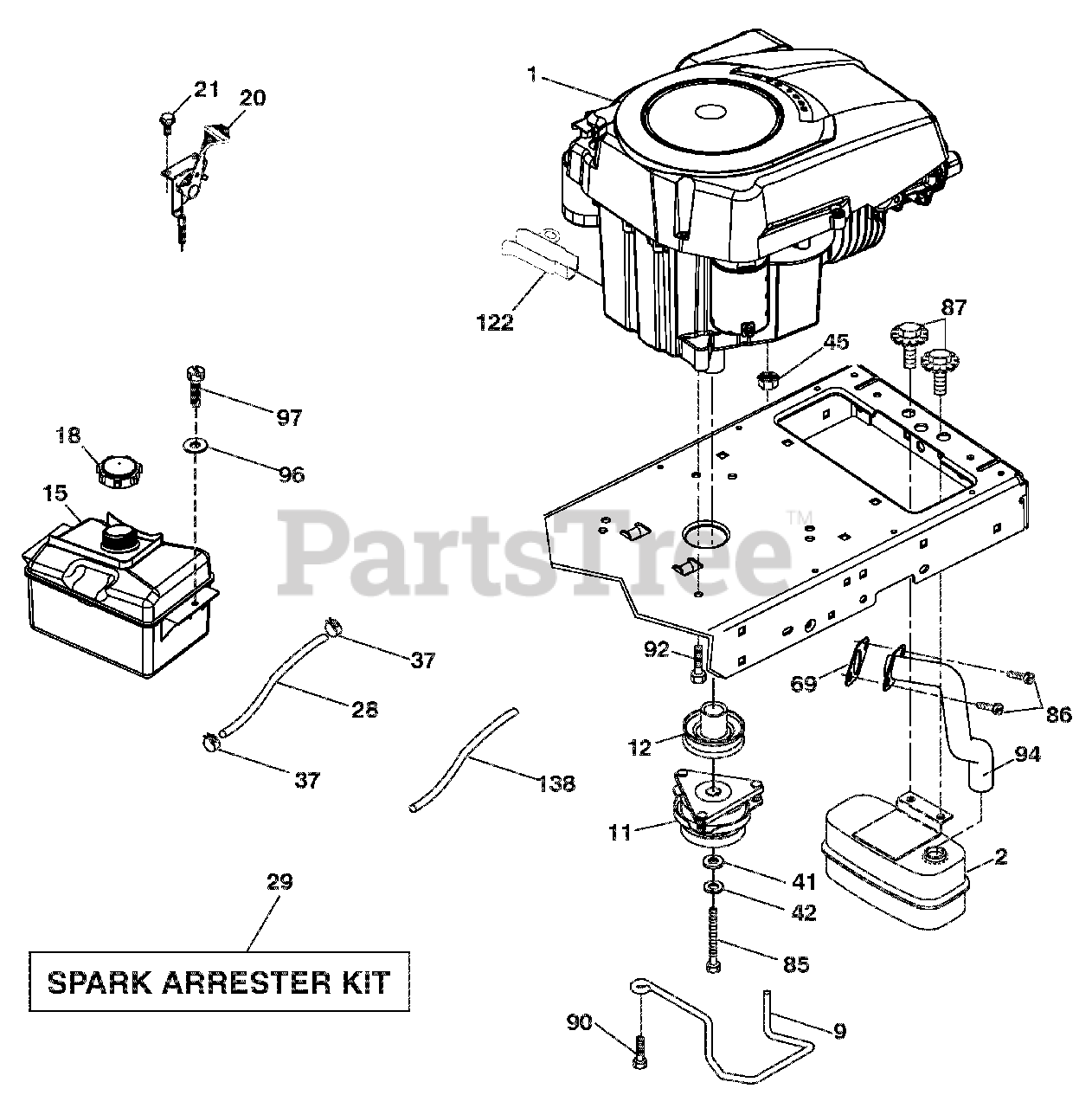

936051 (960460024-01) - Ariens 42" Lawn Tractor, 19hp Kohler, Hydro Engine Parts Diagram

42" Lawn Tractor, 19hp Kohler, Hydro

Engine Parts Diagram

  • Title
1

Ariens 21547795

ENGINE KOHL MOD NO. SV590-0218

Note: (438346) (ORDER PARTS FROM ENGINE MANUFACTURER)

$

$

Not available

2

Ariens 21546269

MUFFLER.SINGLE.CYL.KOHL.COURAG

$45.99

$

In Stock, only 2 left!

0

9

Ariens 21546327

KEEPER.BELT.ENGINE.4.25"NSTG
(Superseded to 21548399)

$

$

Not available

11

Ariens 21547726

CLUTCH OGURA

$399.99

$

Usually ships in 4-12 days

0

12

Ariens 21546604

PULLEY.ENGINE.TUFFTORQE.1"CRK.

$

$

Not available

15

Ariens 21547730

TANK.FUEL.2.5.GAL.
(Superseded to 21547650)

$

$

Not available

18

Ariens 21547731

CAP FUEL

$37.99

$

Usually ships in 4-12 days

0

20

Ariens 21547796

CONTROL THROTTLE/CHOKE

$60.99

$

Usually ships in 4-12 days

0

21

$

$

Not available

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

41

Ariens 21546077

WASHER.1-1/2 ODX15/32 IDX.250

$6.99

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

69

Ariens 21546232

GASKET.KOHLER.SV.I.

$4.99

$

Usually ships in 4-12 days

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

86

Ariens 21547307

SCREW SOCKET HEAD 5/16-18 X 1

$6.99

$

Usually ships in 4-12 days

0

87

Ariens 21547321

BOLT.5/16-18 UNC X 1 W/SEMS.BL

$6.49

$

Usually ships in 4-12 days

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

92

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

94

Ariens 21546268

TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 21548567)

$51.99

$

Usually ships in 4-12 days

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

122

Ariens 21547116

Extension Drain Oil

$40.99

$

In Stock, Qty 8

0

138

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0
