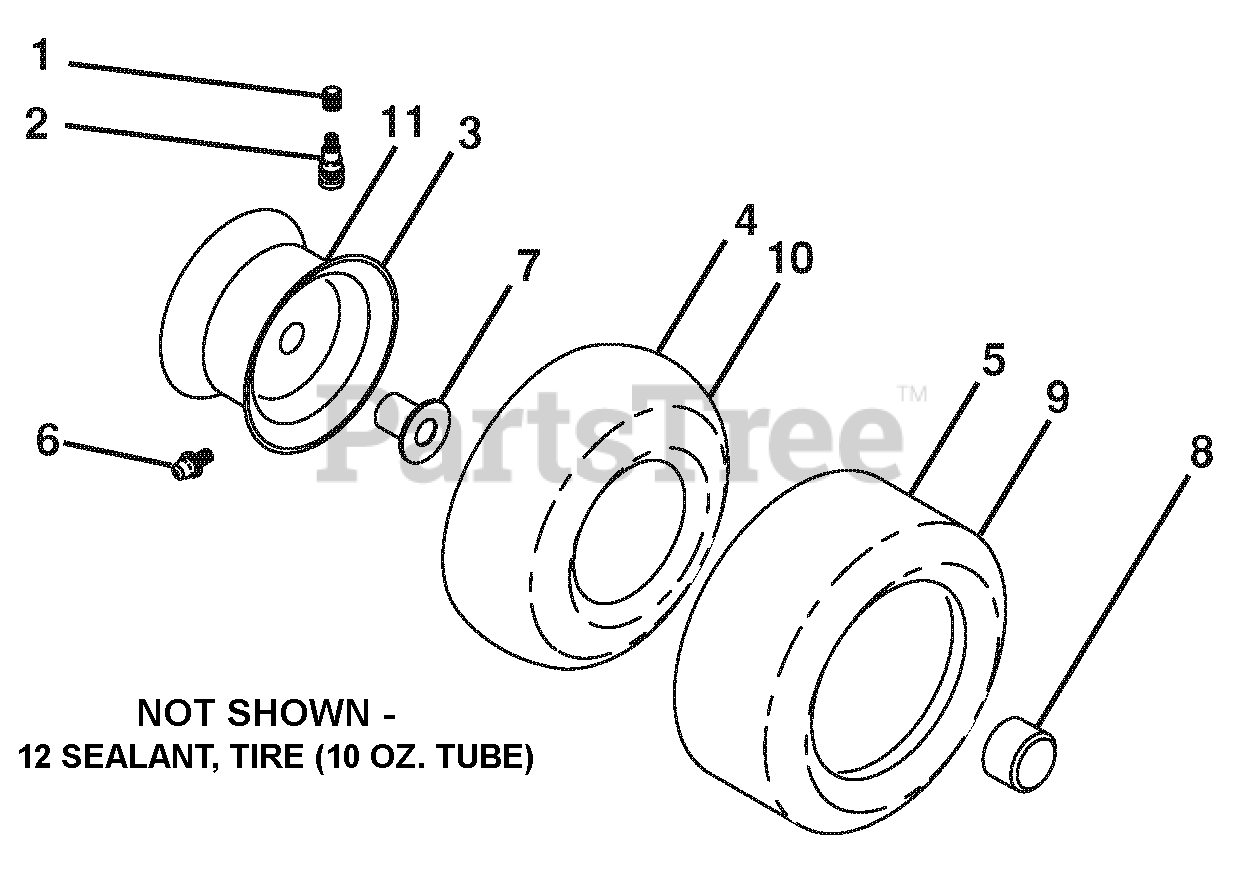

936048 (960460010-00) - Ariens 42" Lawn Tractor, 19.5hp Briggs & Stratton, Hydro Wheels And Tires Parts Diagram

42" Lawn Tractor, 19.5hp Briggs & Stratton, Hydro

Wheels And Tires Parts Diagram

  • Title

1

Ariens 21546747

CAP.VALVE.TIRE

$4.99

$

In Stock, Qty 20+

0

2

Ariens 21546751

STEM.VALVE

$9.99

$

In Stock, Qty 20+

0

3

Ariens 21547254

Rim.Asm.6"Front(w.Grey).643
(Superseded to 21547813)

Note: (W.GREY).643

$102.99

$

In Stock, Qty 20+

0

4

Ariens 21546748

TUBE.INNER.FRONT.#35060

Note: (SERVICE ITEM ONLY)

$37.99

$

In Stock, Qty 14

0

5

Ariens 21546034

TIRE.F.TS.15 X 6.0 - 6.SERVICE

$129.99

$

Usually ships in 4-12 days

0

6

Ariens 21546547

FITTING.GREASE

Note: (FRONT WHEEL ONLY)

$6.99

$

In Stock, Qty 20+

0

7

Ariens 21546832

BEARING.FLANGE

Note: (FRONT WHEEL ONLY)

$9.49

$

In Stock, Qty 20+

0

8

Ariens 21547255

Cap.Hub.Axle.W.Gry.1.50 X 1.00

$

$

Not available

9

Ariens 21546685

TIRE.R.TS-LT.18X9.5-8.C.SERV.
(Superseded to 21547456)

$

$

Not available

10

Ariens 21546755

TUBE.REAR.9.5 X 8.SERVICE
(Superseded to 21547539)

Note: (SERVICE ITEM ONLY)

$

$

Not available

11

Ariens 21547256

Rim Asm.8"Rear.W.Gry.Srvce.643
(Superseded to 21548754)

$

$

Not available

12

Ariens 21546845

SEALANT, TIRE (10 OZ. TUBE)
(Superseded to 21549051)

Note: (10 OZ. TUBE)(NOT SHOWN)

$

$

Not available
