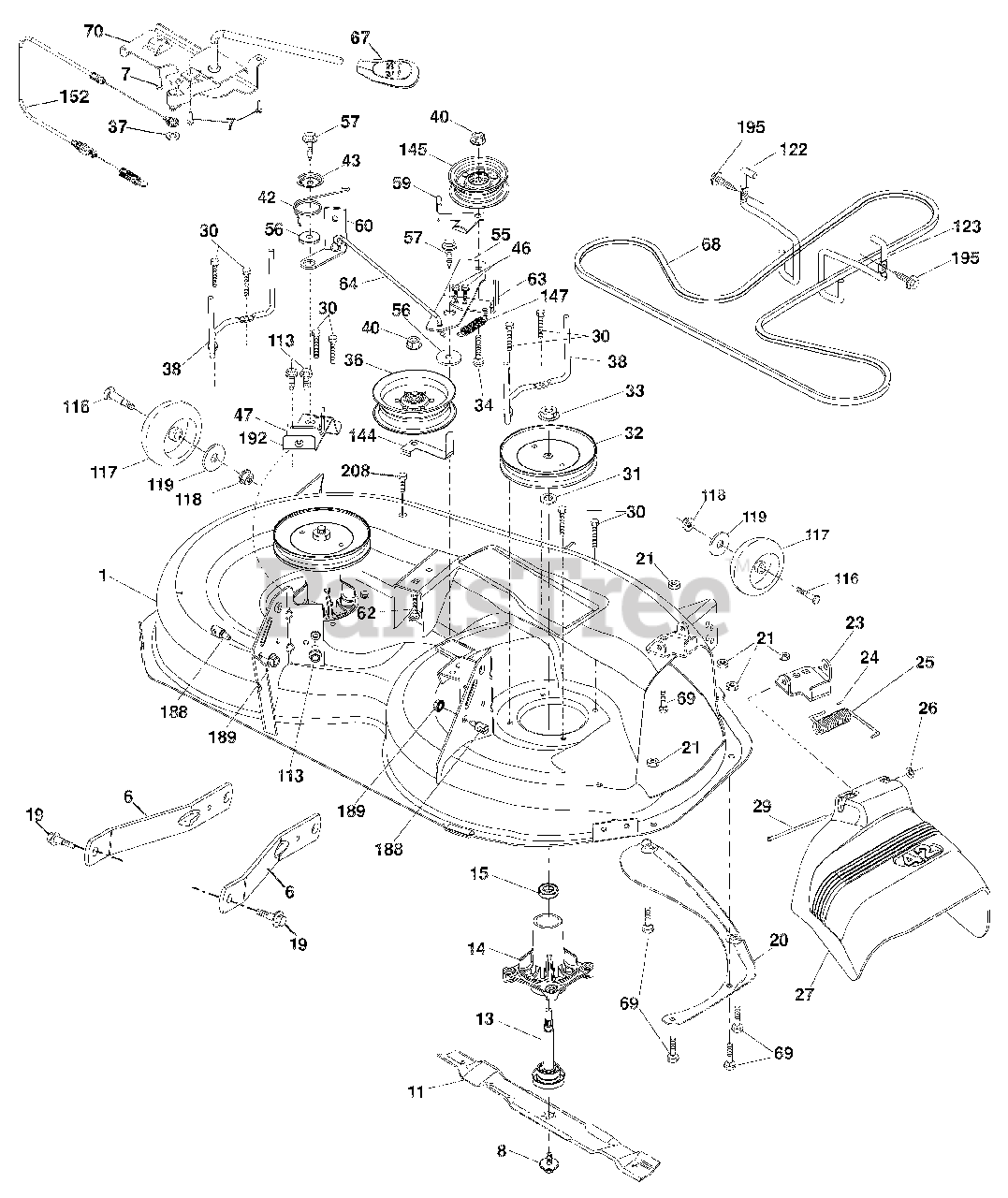

936048 (960460010-00) - Ariens 42" Lawn Tractor, 19.5hp Briggs & Stratton, Hydro Mower Deck Parts Diagram

42" Lawn Tractor, 19.5hp Briggs & Stratton, Hydro

Mower Deck Parts Diagram

  • Title

1

Ariens 21547805

DECK.PNT.WELDMENT.42"

$426.99

$

Usually ships in 4-12 days

0

1

Ariens 21547239

DECK.SVC.42"HP.CC.NGWB.TX.431

$

$

Not available

6

Ariens 21546347

ARM.SUSPENSION.MOWER.REAR.LD

$9.49

$

Usually ships in 4-12 days

0

7

Ariens 21546675

Screw

$

$

Not available

8

Ariens 21546301

BOLT/WASHER ASM.7/16-20.UNF

$8.99

$

Usually ships in 4-12 days

0

11

Ariens 21546095

BLADE.MOWER.42"HI LIFT PREMIUM

$20.99

$

In Stock, Qty 20+

0

11

Ariens 21547024

BLADE, HUSQ MULCH KIT

$

$

Not available

11

Ariens 21547233

BLADE 42" MULCHING PREMIUM
(Superseded to 21547024)

$

$

Not available

11

Ariens 21547174

Blade 42SP" 3N1
(Superseded to 21547175)

$20.99

$

In Stock, Qty 10

0

11

Ariens 21547175

Blade 42SP" 3N1 Premium

$20.99

$

In Stock, Qty 10

0

13

Ariens 21546300

SHAFT ASM.MNDRL.N/GREASEABLE38
(Superseded to 21549012)

$56.99

$

In Stock, Qty 20+

0

14

Ariens 21546238

HOUSING.MANDREL.4PT.SERVICE
(Superseded to 21549012)

$56.99

$

In Stock, Qty 20+

0

15

Ariens 21546046

BEARING.BALL.MANDREL
(Superseded to 05418800)

$9.49

$

In Stock, Qty 20+

0

19

Ariens 21546411

BOLT.SHOULDER

$7.49

$

In Stock, Qty 20+

0

20

Ariens 21546144

BAFFLE.VORTEX.42.STD/HEAVY DTY

$

$

Not available

21

Ariens 21546784

Nut, Hex, Crownlock 5/16-18

$3.99

$

Usually ships in 4-12 days

0

23

Ariens 21546296

BRACKET.DEFLECTOR.38/42"2005

$9.49

$

In Stock, Qty 7

0

24

Ariens 21546025

CAP.SLEEVE..80X.112.BLK.MOWER

$4.99

$

In Stock, Qty 20+

0

25

Ariens 21546416

SPRING.TORSION.DFL.38/42/46.GR

$10.99

$

In Stock, Qty 17

0

26

Ariens 21546045

NUT.PUSH.PHOS.& OIL

$3.99

$

Usually ships in 4-12 days

0

27

Ariens 21546305

SHIELD.DEFLECTOR.MOWER 42"BLK

$44.99

$

Usually ships in 4-12 days

0

29

Ariens 21546081

ROD.HINGE.42/46"

$

$

Not available

30

Ariens 21546192

SCREW.THD ROLL.DOD PT.HEX
(Superseded to 21548816)

$4.99

$

In Stock, Qty 20+

0

31

Ariens 21546253

WASHER.SPACER.MANDREL

$4.99

$

In Stock, Qty 8

0

32

Ariens 21546446

PULLEY.MANDREL.5.438 PD.42"

$14.99

$

In Stock, Qty 20+

0

32

Ariens 21546299

MANDREL ASM.SUB.N-GRS.4 BOLT
(Superseded to 21549012)

$56.99

$

In Stock, Qty 20+

0

32

PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

Note: PULLEY/NUT/WASHER AND BLADE BOLT/WASHERS NOT INCLUDED)

$

$

Not available

33

Ariens 21546554

NUT.FLANGE.LOCK.TOP

$

$

Not available

34

Ariens 21546765

BOLT.CARR.SH.3/8-16X1-1/2.GR5
(Superseded to 06224200)

$3.99

$

In Stock, only 2 left!

0

36

Ariens 21546440

PULLEY.IDLER.4.50.RAW

$39.99

$

In Stock, Qty 20+

0

37

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 5

0

38

Ariens 21546487

KEEPER.BELT.LH.MANDREL.42/46"
(Superseded to 21547367)

$7.99

$

In Stock, Qty 12

0

40

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 21546478

SPRING.TORSION.BRAKE

$6.49

$

In Stock, Qty 8

0

43

Ariens 21546423

SPRING.TORSION.RETAINER

$6.49

$

In Stock, Qty 8

0

46

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

47

Ariens 21546421

BRACKET.CLUTCH.CABLE

$

$

Not available

55

Ariens 21547834

IDLER.ARM

$

$

Not available

56

Ariens 21546482

SPACER.RETAINER

$6.99

$

In Stock, Qty 11

0

57

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

59

Ariens 21546103

GUARD.TUV.IDLER

$

$

Not available

60

Ariens 21546429

ARM.BRAKE.MOWER.42"

$14.99

$

In Stock, Qty 15

0

62

Ariens 21546767

BOLT.RD.HD.SQ.NK.3/8-16UNC X 2
(Superseded to 06203200)

$2.99

$

In Stock, Qty 20+

0

63

Ariens 21546499

ARM.BRAKE.MOWER

$17.99

$

In Stock, Qty 20+

0

64

Ariens 21547237

LINKAGE.BRAKE

$24.99

$

Usually ships in 4-12 days

0

67

Ariens 21546476

HANDLE.CLUTCH.CABLE.LT TEX.428

$

$

Not available

68

Ariens 21547238

BELT.DRIVE.100.97"
(Superseded to 21547025)

$51.99

$

In Stock, Qty 20+

0

69

Ariens 21546770

BOLT.RDHD.SQNK.5/16-18 X 5/8
(Superseded to 596136401)

$3.99

$

In Stock, Qty 20+

0

70

Ariens 21546474

CLUTCH ASM.MANUAL.LT.TEX

$80.99

$

In Stock, only 1 left!

0

113

Ariens 21546179

BOLT.5/16-18HEX.WHS.HD.LCKSERR

$7.49

$

In Stock, Qty 12

0

116

Ariens 21546741

BOLT.SHLD."A"2.41."B"1.66

$

$

Not available

117

Ariens 21546267

WHEEL.GAGE.HALF.SPOKED

$11.99

$

Usually ships in 4-12 days

0

118

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

119

Ariens 21546281

Washer 3/8 x 7/8 x 14 Ga.
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

122

Ariens 21546424

KEEPER.BELT.ENGINE.LH.LT.TEX

$7.49

$

In Stock, Qty 6

0

123

Ariens 21546426

KEEPER.BELT.ENGINE.RH.LT.TEX

$7.99

$

In Stock, only 1 left!

0

144

Ariens 21546489

KEEPER.BELT.MOWER
(Superseded to 21546490)

$6.49

$

Usually ships in 4-12 days

0

145

Ariens 21546308

PULLEY.IDLER 48"PRIMARY

$31.99

$

In Stock, Qty 5

0

147

Ariens 21546579

SPRING.RETURN

$5.99

$

In Stock, Qty 7

0

152

Ariens 21546635

CABLE.CLUTCH.MANUAL.W/SPR.
(Superseded to 21547599)

$34.99

$

In Stock, only 1 left!

0

188

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

189

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

192

Ariens 21546428

BRACKET.BRAKE.STAND.LH

$

$

Not available

195

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

208

Ariens 21546208

SCREW.THDROL.3/8-16X1/2.TYT.BL

$6.49

$

Usually ships in 4-12 days

0
