936046 (960160021-00) - Ariens 42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear Steering Parts Diagram

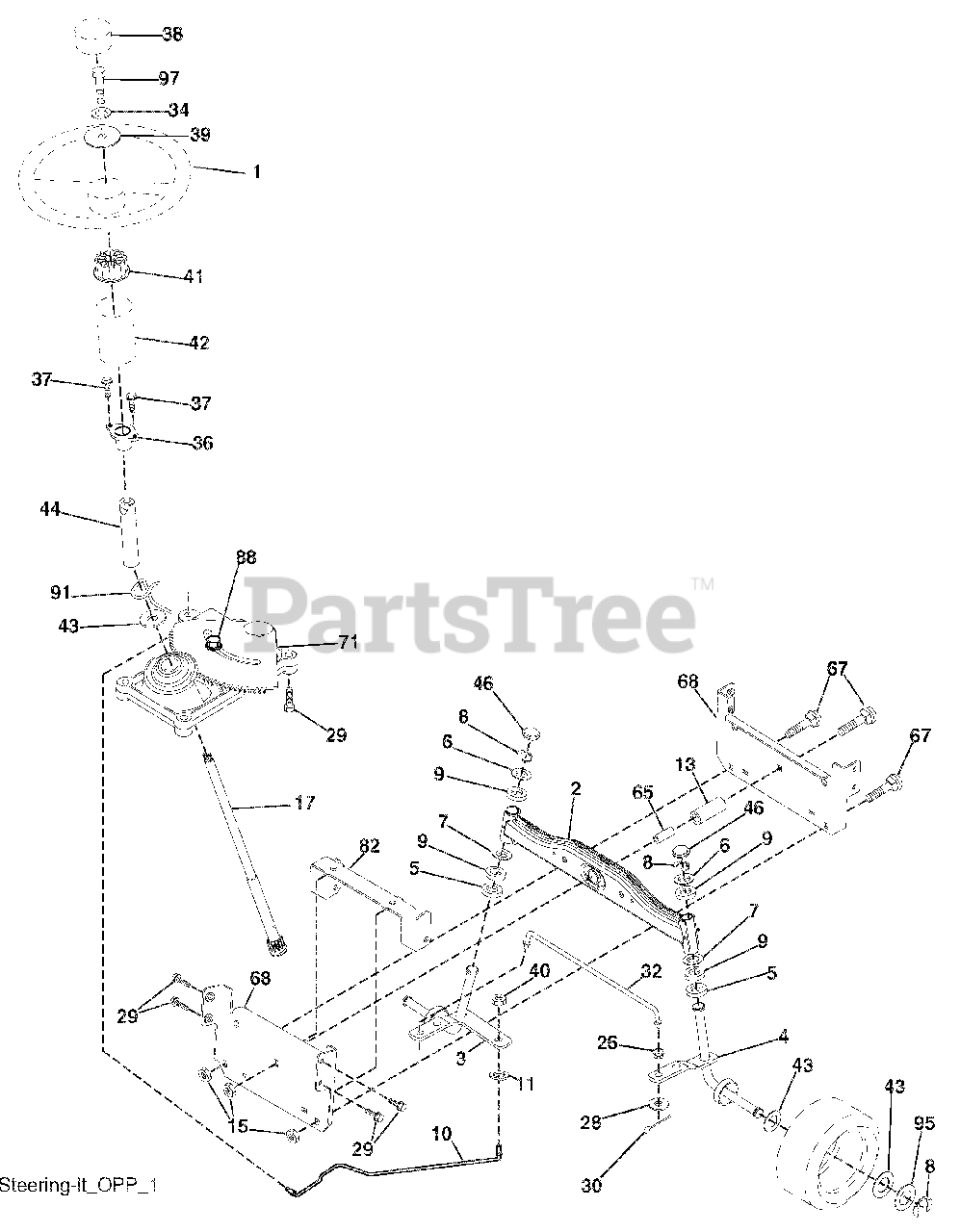

42" Lawn Tractor, 17.5hp Briggs & Stratton, Gear

Steering Parts Diagram

  • Title

1

Ariens 21547117

Wheel Steering

$

$

Not available

2

Ariens 21546681

AXLE ASM.WELDED

$

$

Not available

3

Ariens 21547118

Spindle Asm LH

$

$

Not available

4

Ariens 21547119

Spindle Asm RH

$

$

Not available

5

Ariens 21546750

WASHER.THRUST..75 X 1.230

$7.49

$

In Stock, Qty 17

0

6

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 19

0

7

Ariens 21547120

Washer 27/32 x 1-1/4 x 16 Ga.

$6.49

$

In Stock, only 2 left!

0

8

Ariens 21546053

RING.KLIP.#T5304-75

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 21546550

BEARING.COL.STRG.BLK.

$4.99

$

In Stock, Qty 20+

0

10

Ariens 21547121

Link Drag

$68.99

$

Usually ships in 4-12 days

0

11

Ariens 21546003

Washer, Lock 3/8
(Superseded to 21546909)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 21547122

Spacer Brace Axle

$

$

Not available

15

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 21547123

Shaft Asm Strg

$

$

Not available

26

Ariens 21547124

Bushing Link Drag Blk LR

$5.99

$

In Stock, only 2 left!

0

28

Ariens 21547125

Washer 13/32 x 7/8 x 16 Ga.

$6.49

$

In Stock, only 4 left!

0

29

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

32

Ariens 21547126

Rod Tie Wire Form 19 75 Mech

$34.99

$

In Stock, only 2 left!

0

34

Ariens 21546002

Washer, Lock 5/16

$5.99

$

Usually ships in 4-12 days

0

36

Ariens 21547127

Bushing Strg 5/8 Id Dash

$10.99

$

In Stock, Qty 13

0

37

Ariens 21547128

Screw

$7.49

$

In Stock, only 2 left!

0

38

Ariens 21547129

Cap Wheel Steer

$7.49

$

Usually ships in 4-12 days

0

39

Ariens 21546280

WASHER.11/32ID X2 3/8OD X 12GA

$9.49

$

Usually ships in 4-12 days

0

40

Ariens 21546782

NUT.CROWNLOCK.3/8-24

$4.99

$

Usually ships in 4-12 days

0

41

Ariens 21546234

ADAPTER.WHEEL.STRG..760
(Superseded to 21548917)

$9.49

$

In Stock, only 3 left!

0

42

Ariens 21547130

Boot Dash Mtl Steering Blk
(Superseded to 21547906)

$8.99

$

In Stock, only 1 left!

0

43

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$3.49

$

Usually ships in 4-12 days

0

44

Ariens 21547131

Extension Steering

$17.99

$

In Stock, only 1 left!

0

46

Ariens 21546064

CAP.SPINDLE.FR.TOP.BLK.

$4.99

$

In Stock, Qty 8

0

65

Ariens 21547132

Spacer Brace Axle

$6.99

$

Usually ships in 4-12 days

0

67

Ariens 21547213

Bolt Rdhd Sgnk 3/8-16 x 2-1/4

$

$

Not available

68

Ariens 21547134

Brace Axle

$

$

Not available

71

Ariens 21547135

Steering Asm.

$182.99

$

In Stock, only 3 left!

0

82

Ariens 21547136

Bracket Susp Chassis Front

$26.99

$

Usually ships in 4-12 days

0

88

Ariens 21547137

Bolt Shoulder 7/16-20

$

$

Not available

91

Ariens 21547138

Clip Steering

$19.99

$

Usually ships in 4-12 days

0

95

Ariens 21546272

WASHER.HARDEN..793 X 1.637X060

$4.99

$

In Stock, Qty 20+

0

97

Ariens 21547139

Bolt 5/16-18 x 14 w/Patch

$4.99

$

Usually ships in 4-12 days
