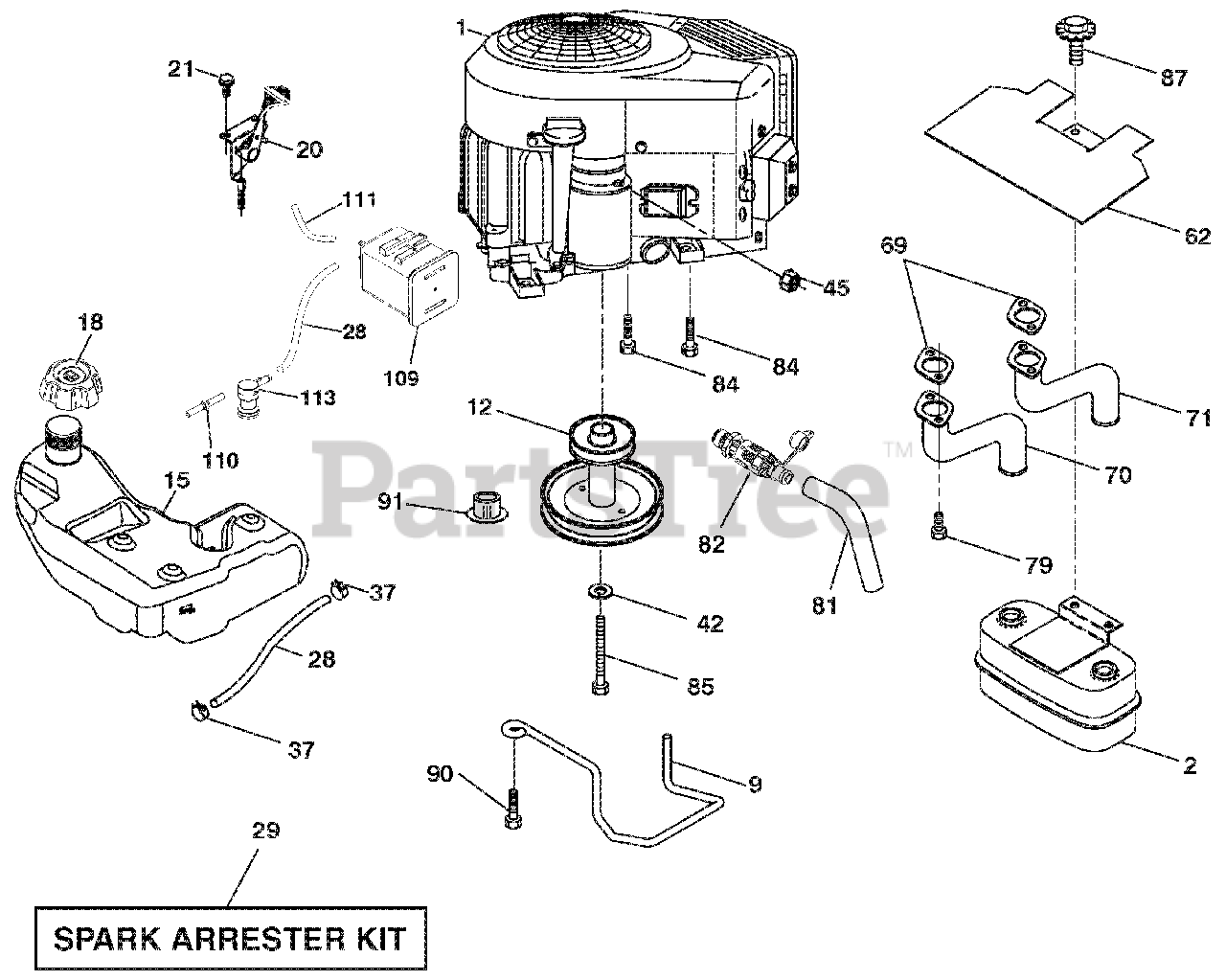

936045 (960460016-00) - Ariens 42" Lawn Tractor, 20hp Briggs & Stratton Hydro Engine Parts Diagram

42" Lawn Tractor, 20hp Briggs & Stratton Hydro

Engine Parts Diagram

  • Title

1

ENGINE BRIGGS MODEL NO. 406777-1404-G1 (ORDER PARTS FROM ENGINE MANUFACTURER)

Note: (ORDER PARTS FROM ENGINE MANUFACTURER)

$

$

Not available

2

Ariens 21546118

MUFFLER ASM.TWIN.LO-TONE

$74.99

$

Usually ships in 4-12 days

0

9

Ariens 21546327

KEEPER.BELT.ENGINE.4.25"NSTG
(Superseded to 21548399)

$

$

Not available

12

Ariens 21547006

PULLEY ENGINE

$

$

Not available

15

Ariens 21547344

TANK.FUEL.ASM.3.00 GA.

$

$

Not available

18

Ariens 21547353

CAP FUEL

$

$

Not available

20

Ariens 21547402

CONTROL THROTTLE/CHOKE
(Superseded to 21547806)

$30.99

$

In Stock, only 1 left!

0

21

Ariens 21546675

Screw

$

$

Not available

28

Ariens 21546570

LINE.FUEL.64"REAR.EMIS.CA.LP

$22.99

$

In Stock, only 1 left!

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

62

Ariens 21546113

SHIELD.HEAT.MUFFLER.CV-INTEK

$

$

Not available

69

Ariens 21547297

GASKET MUFFLER

$

$

Not available

70

Ariens 21547295

EXHAUST TUBE LH

$

$

Not available

71

Ariens 21547296

EXHAUST TUBE RH

$

$

Not available

79

Ariens 21547307

SCREW SOCKET HEAD 5/16-18 X 1

$6.99

$

Usually ships in 4-12 days

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$6.99

$

In Stock, only 4 left!

0

82

Ariens 21547348

VALVE OIL DRAIN

$18.99

$

In Stock, only 4 left!

0

84

Ariens 21547225

Screw 3/8-16 x <
(Superseded to 21547081)

$10.99

$

In Stock, Qty 7

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

87

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

91

Ariens 21546246

BUSHING.1.375OD.HEYCO 2210

$7.99

$

In Stock, only 1 left!

0

109

Ariens 21546657

CANISTER.CARBON.FILTER ASM.TEX

$

$

Not available

110

Ariens 21547341

VALVE.ASM.ANTI-SLOSH

$

$

Not available

111

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0

113

Ariens 21547343

VALVE.SLANT.CARTIDGE

$

$

Not available
