936043 (960460018-00) - Ariens 54" Lawn Tractor, 25hp Kohler, Hydro Chassis Parts Diagram

54" Lawn Tractor, 25hp Kohler, Hydro

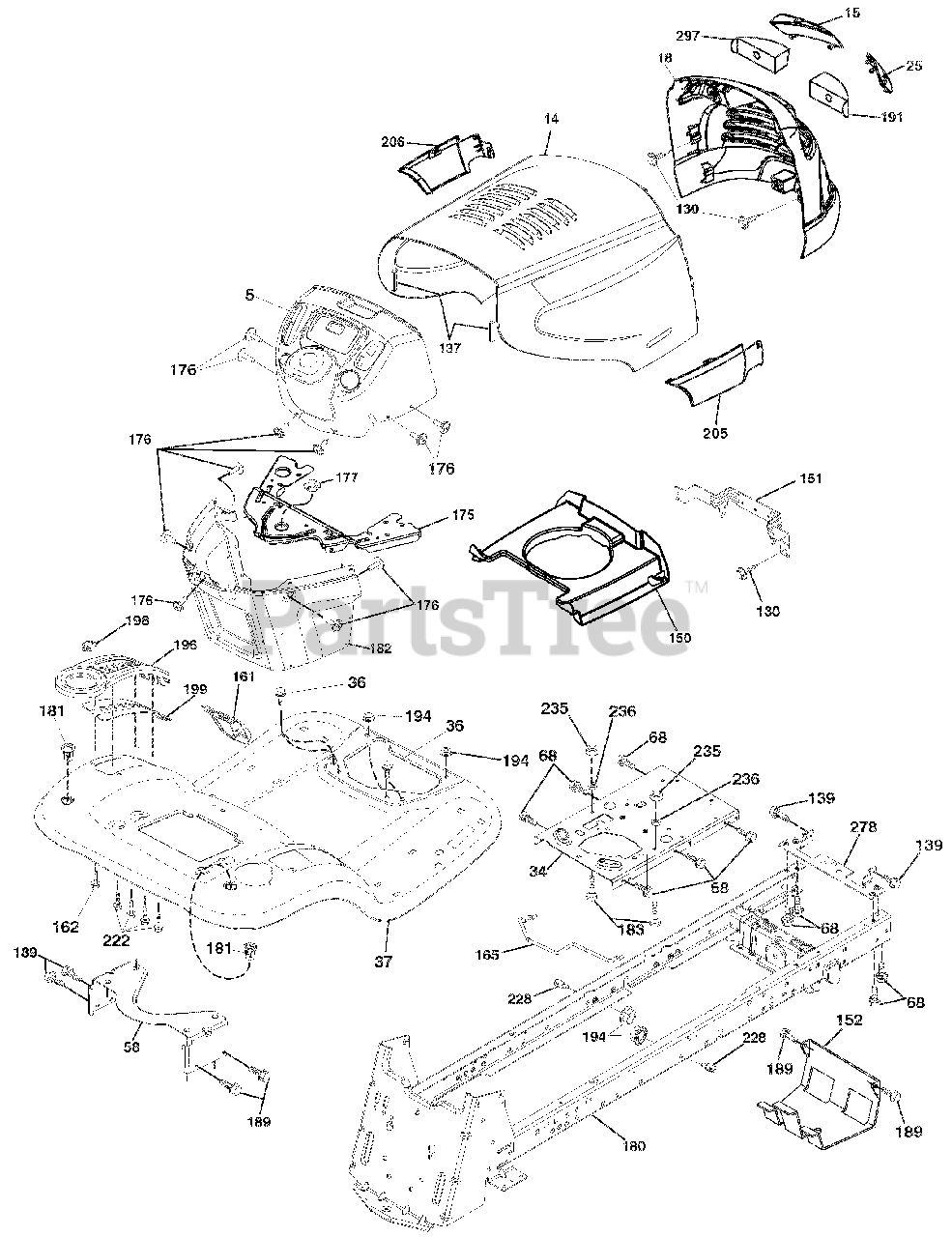

Chassis Parts Diagram

  • Title

5

Ariens 21546507

DASH.UPPER.TEX.ELITE.EL.CK.428

$

$

Not available

14

Ariens 21546867

HOOD

$101.99

$

Usually ships in 4-12 days

0

15

Ariens 21546261

LENS.ELITE-HUSQ.CLEAR.LH

$18.99

$

In Stock, only 1 left!

0

18

Ariens 21547260

GRILL, ARIENS TRACTOR 432256

$

$

Not available

25

Ariens 21546260

LENS.ELITE-HUSQ.CLEAR.RH

$18.99

$

Usually ships in 4-12 days

0

34

Ariens 21546384

PLATE.ENGINE.WELDED.CHASSIS

$50.99

$

Usually ships in 4-12 days

0

36

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

37

Ariens 21547397

FENDER

$

$

Not available

58

Ariens 21547310

FENDER SUPPORT BRACKET

$

$

Not available

68

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

130

Ariens 21546675

Screw

$

$

Not available

137

Ariens 21546230

BUMPER.HOOD.LARGE. 1.75"

$7.49

$

In Stock, only 2 left!

0

138

Ariens 21546721

KIT.BUMPER.HD.2009

$216.99

$

Usually ships in 4-12 days

0

139

Ariens 21547301

BOLT SHOULDER 5/16-18

$

$

Not available

150

Ariens 21546273

AIR DUCT.ENGINE.ELITE-SV

$

$

Not available

151

Ariens 21546626

BRACKET.PIVOT.LASR/ELTE/HUSQLT

$31.99

$

Usually ships in 4-12 days

0

152

Ariens 21546501

SHIELD.BROWNING.W/TEX

$

$

Not available

161

Ariens 21547393

WINDOW FUEL

$6.49

$

Usually ships in 4-12 days

0

162

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

165

Ariens 21546413

SUPPORT.TANK.REAR.W/TEX

$

$

Not available

175

Ariens 21546317

CROSSMEMBER.LT

$

$

Not available

176

Ariens 21546562

SCREW.#10-24X5/8.RND.QUDRX.GIM

$10.99

$

Usually ships in 4-12 days

0

177

Ariens 21546356

BUSHING.STEERING.YT/GT

$6.99

$

In Stock, Qty 15

0

180

Ariens 21547315

CHASSIS

$362.99

$

Usually ships in 4-12 days

0

181

Ariens 21546304

BUSHING.MNT.FEND.CRGO.BLK.TEX

$

$

Not available

182

Ariens 21546302

DASH LOWER.LT.CCS

$

$

Not available

183

Ariens 21547383

BOLT.FIN.HEX.5/16-18 UNC X1-1/

$

$

Not available

189

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

191

Ariens 21546678

INSERT.REFLECTIVE.RH.

$

$

Not available

194

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

196

Ariens 21547396

CONSOLE ASM. DECK LIFT

$

$

Not available

198

Ariens 21546435

INDICATOR.DECK LFT.STGT/LT.505

$

$

Not available

199

Ariens 21547316

PLATE DECK LIFT

$

$

Not available

205

Ariens 21546262

SKIRT.SIDE.RH.ELITE HUSQ.428

$11.99

$

Usually ships in 4-12 days

0

206

Ariens 21546263

SKIRT.SIDE.LH.ELITE HUSQ.428

$

$

Not available

222

Ariens 21546091

SCREW.THD.ROLL.1/4-20 X 5/8
(Superseded to 07400135)

$2.49

$

In Stock, Qty 6

0

228

Ariens 21546343

STUD.FASTNER.W/'D'ANTI-ROTATIO

$

$

Not available

235

Ariens 21546619

SPACER.FENDER

$

$

Not available

236

Ariens 21546793

NUT.CENTER LOCK.5/16-18 UNC
(Superseded to 06500522)

$1.49

$

Usually ships in 4-12 days

0

278

Ariens 21547317

X-PIECE HOOD

$

$

Not available

297

Ariens 21546264

INSERT.LENS.RFLCT.ELT-HUSQ.

$18.99

$

Usually ships in 4-12 days

0
