936041 (960460005-00) - Ariens 42" Lawn Tractor, 19hp Kohler, Hydro Mower Lift Parts Diagram

42" Lawn Tractor, 19hp Kohler, Hydro

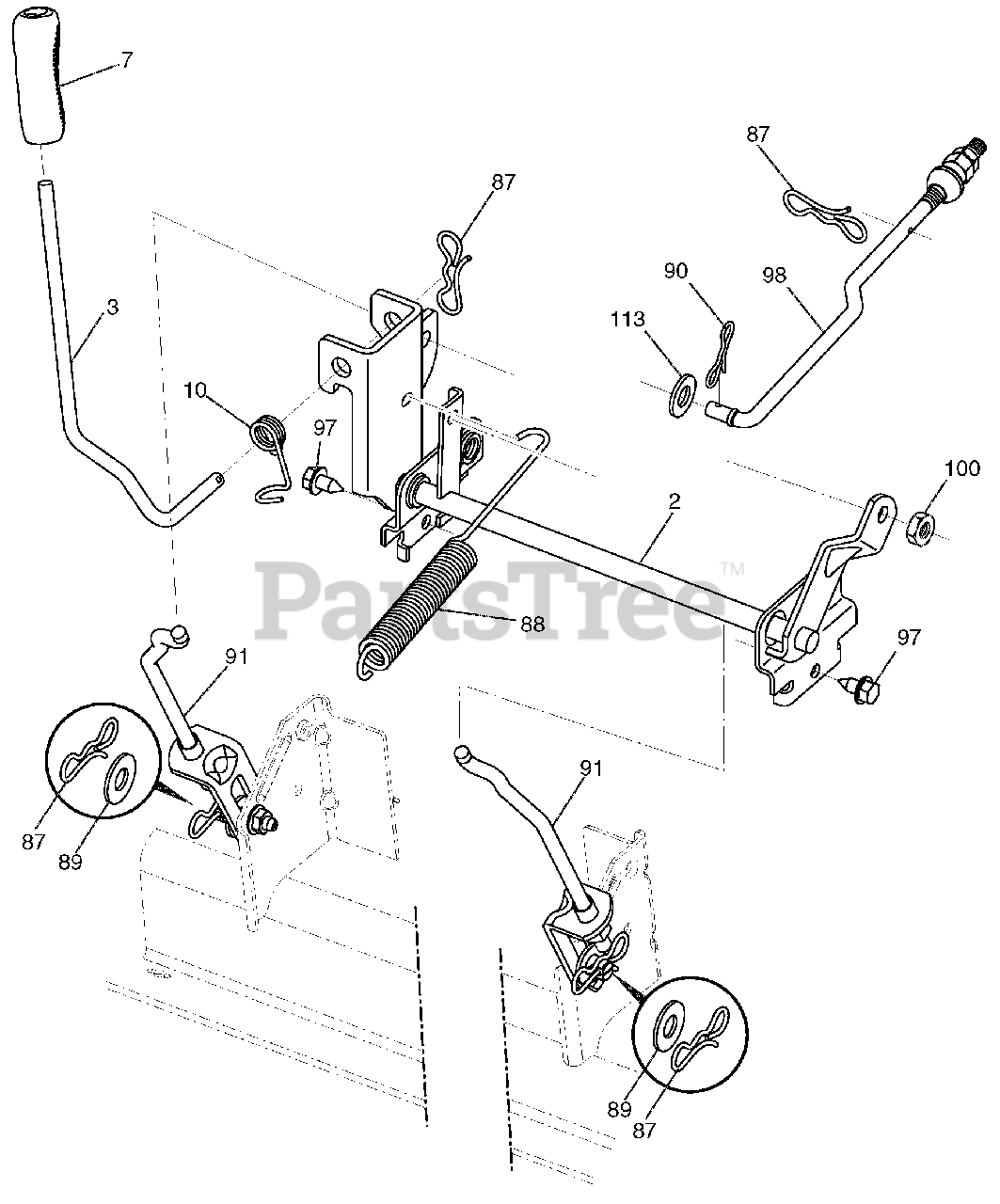

Mower Lift Parts Diagram

  • Title

2

Ariens 21546355

SHAFT ASM.LIFT.CROSS.HD.

$

$

Not available

3

Ariens 21546358

LEVER.LIFT.HANDLE.LT

$

$

Not available

7

Ariens 21546408

GRIP.LEVER..5625 ID.BLACK 428
(Superseded to 21547565)

$

$

Not available

10

Ariens 21546397

SPRING.TORSION.HANDLE.LIFT

$6.49

$

In Stock, only 2 left!

0

87

Ariens 21546322

PIN.COTTER.7/16.BOW TIE LOCK

$3.99

$

In Stock, only 1 left!

0

88

Ariens 21546638

SPRING.LIFT ASSIST

$11.99

$

In Stock, Qty 6

0

89

Ariens 21546292

WASHER.CLEAR ZINC

$6.49

$

In Stock, Qty 20+

0

90

Ariens 21546321

PIN.COTTER.5/16.BOW TIE LOCK

$3.99

$

Usually ships in 4-12 days

0

91

Ariens 21546344

LINK ASM.LIFT.LH.REAR

$

$

Not available

97

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

98

Ariens 21546360

LINK ASM.SUSP.FRONT.MWR.11

$

$

Not available

100

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.49

$

In Stock, Qty 9

0

113

Ariens 21546290

WASHER.17/32 X 1-3/16 X 12 GA.

$7.49

$

In Stock, only 1 left!

0
