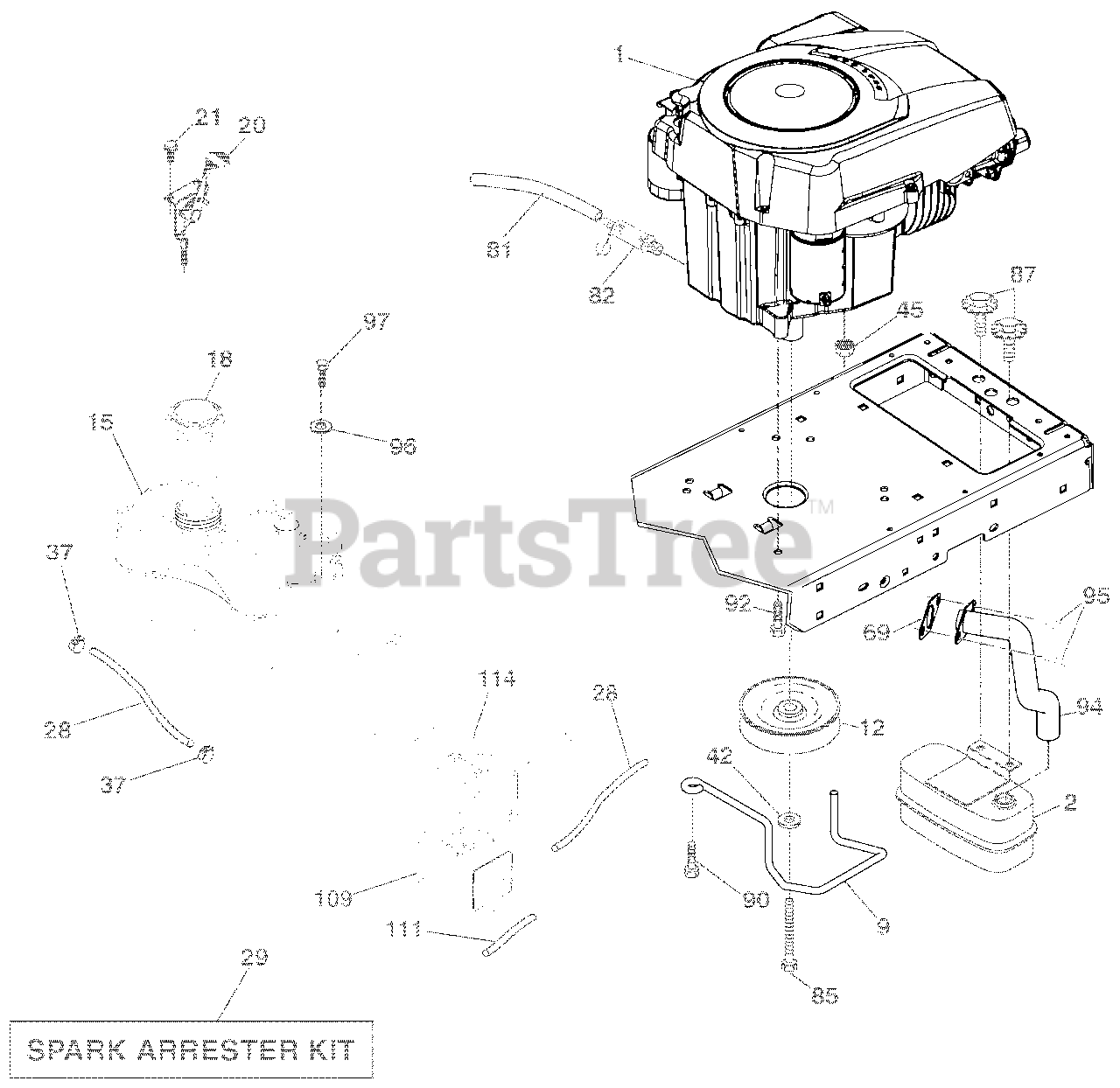

936041 (960460005-00) - Ariens 42" Lawn Tractor, 19hp Kohler, Hydro Engine Parts Diagram

42" Lawn Tractor, 19hp Kohler, Hydro

Engine Parts Diagram

  • Title

1

Engine Kohler Model No. Sv590

$

$

Not available

2

Ariens 21546269

MUFFLER.SINGLE.CYL.KOHL.COURAG

$45.99

$

In Stock, only 2 left!

0

9

Ariens 21546326

KEEPER.BELT.ENGINE.3.25"NSTL

$13.99

$

In Stock, only 1 left!

0

12

Ariens 21546580

PULLEY.ENGINE
(Superseded to 21548992)

$

$

Not available

15

Ariens 21546686

TANK ASM.FUEL.1.50.CARB.CA.SVC
(Superseded to 21547954)

$

$

Not available

18

Ariens 21546656

CAP ASM.FUEL.TETHER

$

$

Not available

20

Ariens 21546206

CONTROL.TH/CK.COBRA.BS.EEC.428
(Superseded to 21547727)

$37.99

$

Usually ships in 4-12 days

0

21

Ariens 21546675

Screw

$

$

Not available

28

Ariens 21546571

LINE.FUEL.22"FRONT.EMIS.CA.LP

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 21546090

KIT.SPARK ARRESTOR(392390 B&S)

Note: (392390 B&S)

$

$

Not available

37

Ariens 21546069

CLAMP.HOSE.BLK.

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546004

WASHER.LOCK.HVY HLCL.SPR.7/16
(Superseded to 21547501)

$3.49

$

Usually ships in 4-12 days

0

45

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

69

Ariens 21546232

GASKET.KOHLER.SV.I.

Note: (20-041-12)

$4.99

$

Usually ships in 4-12 days

0

81

Ariens 21546117

TUBE.DRAIN.OIL.EASY

$6.99

$

In Stock, only 4 left!

0

82

Ariens 21546220

PLUG.DRAIN.OIL.EASY
(Superseded to 21547348)

$18.99

$

In Stock, only 4 left!

0

85

Ariens 21546191

BOLT.HEX.7/16-20X4XGR5-1.5THR.

$

$

Not available

87

Ariens 21546190

BOLT.5/16-18UNCX3/4 W/SEMS.BLK

$7.49

$

In Stock, Qty 5

0

90

Ariens 21546182

SCREW.3/8-16X1.SMGML.TAP/R.BLK

$7.49

$

In Stock, only 3 left!

0

92

Ariens 21546188

SCREW.3/8-16 X 1.SMGML.TAP/R

$

$

Not available

94

Ariens 21546268

TUBE.EXHAUST.KOHL.COURAGE
(Superseded to 21548567)

$51.99

$

Usually ships in 4-12 days

0

95

Ariens 21546293

SCREW.SOCKET HD.5/16-18 X .75
(Superseded to 05909000)

$2.49

$

In Stock, only 2 left!

0

96

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

97

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

109

Ariens 21546657

CANISTER.CARBON.FILTER ASM.TEX

$

$

Not available

111

Ariens 21546660

PURGE.LINE.CARB

$25.99

$

Usually ships in 4-12 days

0

114

Ariens 21546659

CRADLE.CANISTER.CARBON

$

$

Not available
