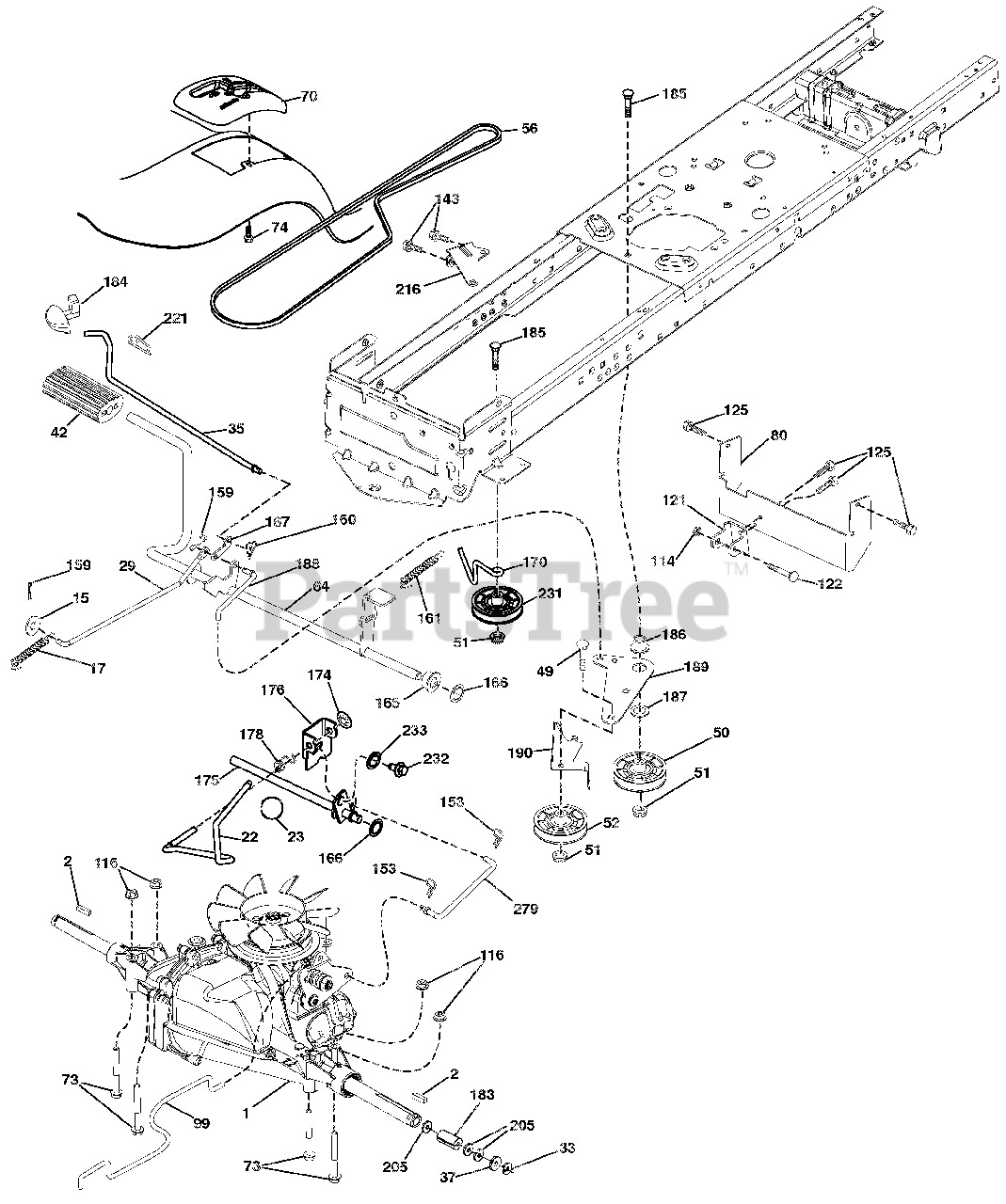

936041 (960460005-00) - Ariens 42" Lawn Tractor, 19hp Kohler, Hydro Drive Parts Diagram

42" Lawn Tractor, 19hp Kohler, Hydro

Drive Parts Diagram

  • Title
1

Transaxle, Hydro Gear T2-AABC-1X1A-1GX1

$

$

Not available

2

Ariens 21546070

KEY.SQUARE.2.0 X .1845/.1865

$4.99

$

In Stock, only 4 left!

0

15

Ariens 21546284

WASHER.13/32 X 13/16 X 16 GA.

$4.99

$

In Stock, Qty 5

0

17

$

$

Not available

22

Ariens 21546450

ROD.SHIFT.FENDER.TLT.2006

$234.99

$

Usually ships in 4-12 days

0

23

Ariens 21546844

KNOB DELUXE

$

$

Not available

29

Ariens 21546630

ROD.BRAKE.T2.TEX

$38.99

$

Usually ships in 4-12 days

0

33

Ariens 21546051

E-RING.#5133-75
(Superseded to 05707400)

$2.49

$

Usually ships in 4-12 days

0

35

Ariens 21546453

ROD.BRAKE.PARKING.LT.TEX

$

$

Not available

37

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$3.49

$

Usually ships in 4-12 days

0

42

Ariens 21546831

COVER.PEDAL.BLK.ROUND
(Superseded to 21547538)

$6.49

$

Usually ships in 4-12 days

0

49

Ariens 21546766

BOLT.RDHD.3/8-16UNCX1-3/4.GR5
(Superseded to 06200329)

$3.99

$

In Stock, only 1 left!

0

50

Ariens 21546331

IDLER.FLAT.910"OFFSET

$20.99

$

In Stock, Qty 16

0

51

Ariens 21546790

Nut, Hex, Flangelock 3/8-16
(Superseded to 06500905)

$1.49

$

In Stock, Qty 20+

0

52

Ariens 21546330

IDLER.V-GROOVE.910"OFFSET

$22.99

$

Usually ships in 4-12 days

0

56

Ariens 21546076

V-BELT.GROUND DRIVE.90.00

$39.99

$

In Stock, Qty 9

0

64

Ariens 21546387

SHAFT ASM.PEDAL.BRAKE CONTROL

$

$

Not available

70

Ariens 21546310

CONSOLE.SHIFT.STL.HYD.BLACK.TX

$17.99

$

Usually ships in 4-12 days

0

73

Ariens 21546798

BOLT.HEX.FLGHD.5/16-18.GR.5

$4.99

$

Usually ships in 4-12 days

0

74

Ariens 21546106

SCREW.HEX.WSH.HI-LO.1/4X1/2UNC

$

$

Not available

80

Ariens 21546631

STRAP.TORQUE.FS.T2

$22.99

$

Usually ships in 4-12 days

0

99

Ariens 21546632

ROD.ASM.BYPASS.SPRING.T2.FS

$

$

Not available

114

Ariens 21546786

Locknut, Washer Insert 5/16-18
(Superseded to 21546784)

$3.99

$

Usually ships in 4-12 days

0

116

Ariens 21546789

Nut, Lock Hex Flange 5/16-18 u
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

121

Ariens 21546203

BRACKET.STRAP.TORQUE.T/A.3500

$

$

Not available

122

Ariens 21546757

BOLT.5/16-18 x 2.50
(Superseded to 06219400)

$3.49

$

Usually ships in 4-12 days

0

125

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

143

Ariens 21546199

SCREW.THDROL.5/16-18 X 1/2TYTT

$6.49

$

In Stock, only 1 left!

0

153

Ariens 21546739

Retainer Spring

$

$

Not available

159

Ariens 21546820

PIN.COTTER.1/8 X 3/4.CAD.
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

160

Ariens 21546178

RETAINER.CLIP(M).DIA.290

Note: (M).Dia.290

$

$

Not available

161

Ariens 21546028

SPRING.RETURN.CLUTCH.6.75

$11.99

$

Usually ships in 4-12 days

0

165

Ariens 21546393

BUSHING.SHAFT.BRAKE.HAND CONTR

$6.49

$

In Stock, only 1 left!

0

166

Ariens 21546432

NUT.PUSH..625.2006

$4.99

$

Usually ships in 4-12 days

0

167

Ariens 21546608

LATCH.BRAKE.PARKING

$4.99

$

Usually ships in 4-12 days

0

170

Ariens 21546648

KEEPER.CENTER SPAN.1.688

$12.99

$

Usually ships in 4-12 days

0

174

Ariens 21546431

NUT.PUSH..500

$6.49

$

In Stock, only 2 left!

0

175

Ariens 21546634

SHAFT ASM.SHIFT.T2/K66.FS.TX

$

$

Not available

176

Ariens 21546394

ARM.CLEVIS.ROD.SHIFT

$

$

Not available

178

Ariens 21546445

SPRING.SHIFT.GT.2006

$

$

Not available

183

Ariens 21546141

SPACER.AXLE.PVST

$

$

Not available

184

Ariens 21546477

HANDLE.PARKING BRAKE.LTTEX.505
(Superseded to 21547562)

$18.99

$

In Stock, only 1 left!

0

185

Ariens 21546768

BOLT.RDHD.3/8-16UNC X2-3/4 GR5

$4.99

$

In Stock, Qty 10

0

186

Ariens 21546328

SPACER.RETAINER

$9.49

$

In Stock, Qty 9

0

187

Ariens 21546287

WASHER.13/32 X 2 X 10 GA.

$

$

Not available

188

Ariens 21546329

LINK.CLUTCH.GROUND DRIVE

$24.99

$

In Stock, only 1 left!

0

189

Ariens 21546324

BELLCRANK.GROUNDRIVE.NSTG/NSTL

$

$

Not available

190

Ariens 21546325

KEEPER.BELLCRANK.DRIVE.GROUND

$8.99

$

In Stock, only 2 left!

0

205

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

216

Ariens 21546385

BRACKET.PULLEY.IDLER.WTEX

$7.49

$

Usually ships in 4-12 days

0

221

Ariens 21546588

RETAINER.SPRING.CLIP.HANDLE

$6.49

$

In Stock, only 2 left!

0

231

Ariens 21546622

IDLER.V-GROOVE.1.688"OFFSET

$22.99

$

In Stock, Qty 9

0

232

Ariens 21546818

BOLT.FIN HEX.7/16-14X1 GR5
(Superseded to 05958700)

$2.99

$

In Stock, only 1 left!

0

233

Ariens 21546609

WASHER.SERRATED

$

$

Not available

279

Ariens 21546633

LINK.SHIFT.T2.TEX

$

$

Not available
