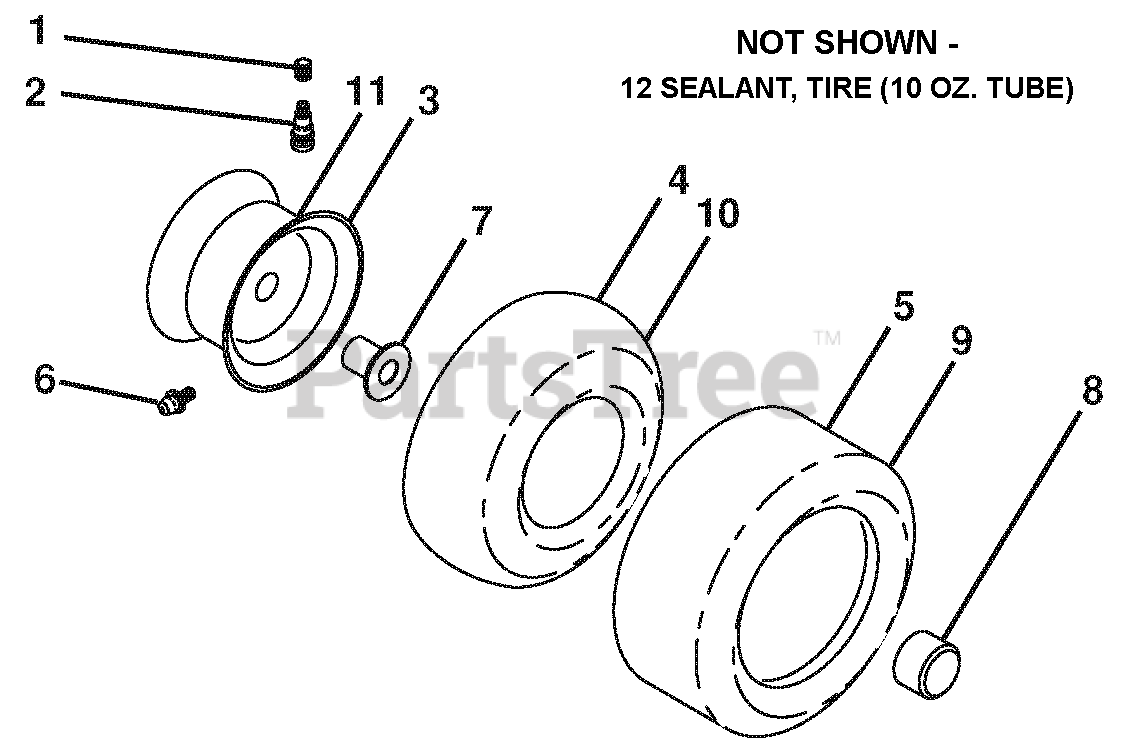

936040 (960460004-00) - Ariens 54" Lawn Tractor, 25hp Kohler, Precision Hydro Wheels And Tires Parts Diagram

54" Lawn Tractor, 25hp Kohler, Precision Hydro

Wheels And Tires Parts Diagram

  • Title

1

Ariens 21546747

CAP.VALVE.TIRE

$4.99

$

In Stock, Qty 20+

0

2

Ariens 21546751

STEM.VALVE

$9.99

$

In Stock, only 1 left!

0

3

Ariens 21546038

RIM.ASM.6"FRONT .643
(Superseded to 21546037)

$193.99

$

In Stock, only 1 left!

0

4

Ariens 21546748

TUBE.INNER.FRONT.#35060

$37.99

$

In Stock, Qty 7

0

5

Ariens 21546034

TIRE.F.TS.15 X 6.0 - 6.SERVICE

$129.99

$

Usually ships in 4-12 days

0

6

Ariens 21546547

FITTING.GREASE

$6.99

$

Usually ships in 4-12 days

0

7

Ariens 21546832

BEARING.FLANGE

$7.99

$

In Stock, Qty 20+

0

8

Ariens 21546024

CAP.HUB.AXLE.W.GRY.1.50 X 1.00

Note: (Front Wheel Only)

$4.99

$

In Stock, Qty 20+

0

9

Ariens 21546094

TIRE.R.TS.20 X 8-8.C.SERVICE

$

$

Not available

10

Ariens 21546755

TUBE.REAR.9.5 X 8.SERVICE
(Superseded to 21547539)

$

$

Not available

11

Ariens 21546030

RIM ASM.8"REAR.W.GRY.SRVCE.643
(Superseded to 21547814)

$

$

Not available

12

Ariens 21546845

SEALANT, TIRE (10 OZ. TUBE)
(Superseded to 21549051)

Note: (10 oz. Tube)(NOT SHOWN)

$

$

Not available
