936039 (960460003-01) - Ariens 46" Lawn Tractor, 20hp Kohler, Precision Hydro Decals Parts Diagram

46" Lawn Tractor, 20hp Kohler, Precision Hydro

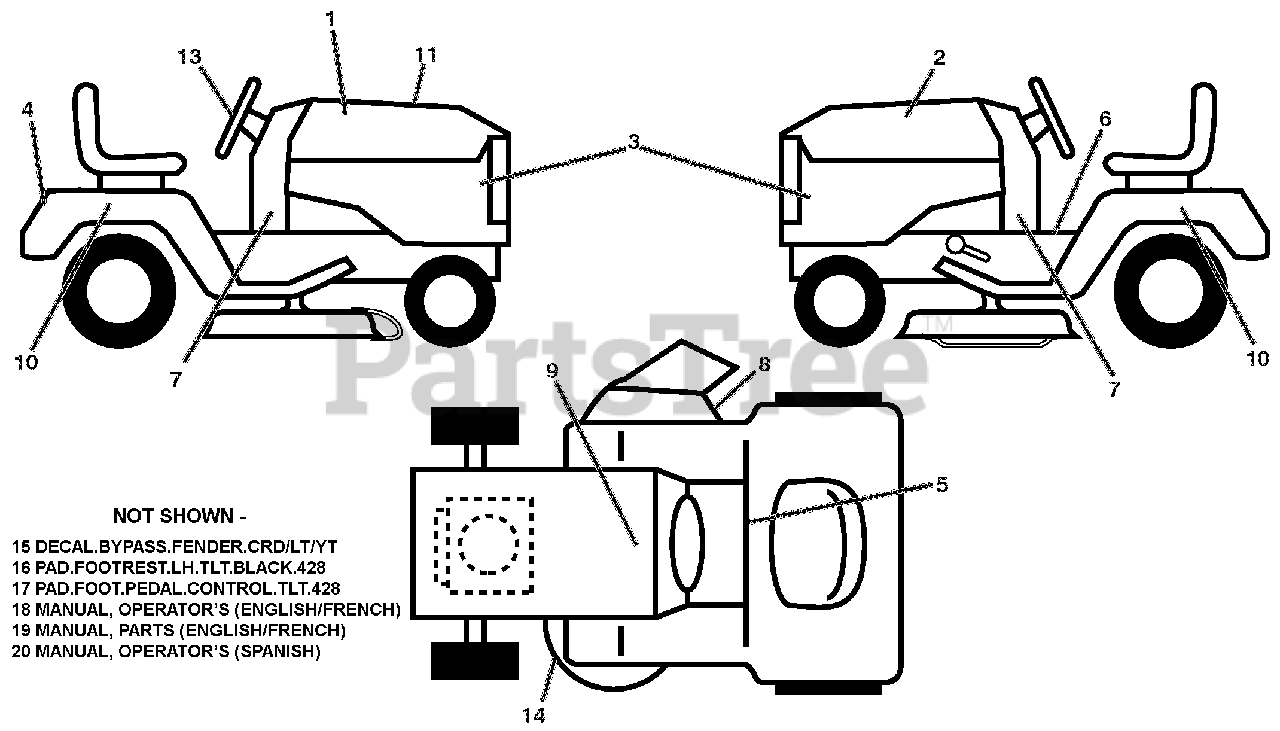

Decals Parts Diagram

  • Title

1

Ariens 21546688

DECAL.HOOD.RH.PRECISION.ARIENS

$

$

Not available

2

Ariens 21546689

DECAL.HOOD.LH.PRECISION.ARIENS

$

$

Not available

3

Ariens 21546692

DECAL.SDPNL.PWRDBY KOHL.ARIENS

$

$

Not available

4

Ariens 21546698

DECAL.FENDER.REAR.ARIENS

$

$

Not available

5

Ariens 21546695

Decal, Flag

$

$

Not available

6

Ariens 21547009

DECAL, WARNING START INST.

$

$

Not available

7

Ariens 21546691

DECAL.DASH.LWOWER.20HP.ARIENS

$

$

Not available

8

Ariens 21546186

DECAL.MOWER.WARN.KEEP HAND AWY
(Superseded to 21548132)

$

$

Not available

9

Ariens 21546109

DECAL.BAT.DAN/POI P/L SYM.WPN

$

$

Not available

10

Ariens 21546693

DECAL.FENDER.SIDE.HYDRO.ARIENS

$

$

Not available

11

Ariens 21547010

DECAL, REPLACEMENT

$

$

Not available

13

Ariens 21546690

DECAL.WHEEL.STEER.ARIENS

$

$

Not available

14

Ariens 21546145

DECAL.V-BELT.SCH.42/46"MEC/ELE

$

$

Not available

15

Ariens 21546177

DECAL.BYPASS.FENDER.CRD/LT/YT

$

$

Not available

16

Ariens 21546313

PAD.FOOTREST.LH.TLT.BLACK.428

$

$

Not available

17

Ariens 21546566

PAD.FOOT.PEDAL.CONTROL.TLT.428

$9.99

$

Usually ships in 4-12 days

0

18

Ariens 21547011

MANUAL, OPERATOR'S ENG/FRE

Note: (English/French)

$

$

Not available

19

Ariens 21547013

MANUAL, PARTS ENG/FRE

Note: (English/French)

$

$

Not available

20

Ariens 21547012

MANUAL, OPERATOR'S SPAN

Note: (Spanish)

$

$

Not available
