936039 (960460003-00) - Ariens 46" Lawn Tractor, 20hp Kohler, Precision Hydro Electrical Parts Diagram

46" Lawn Tractor, 20hp Kohler, Precision Hydro

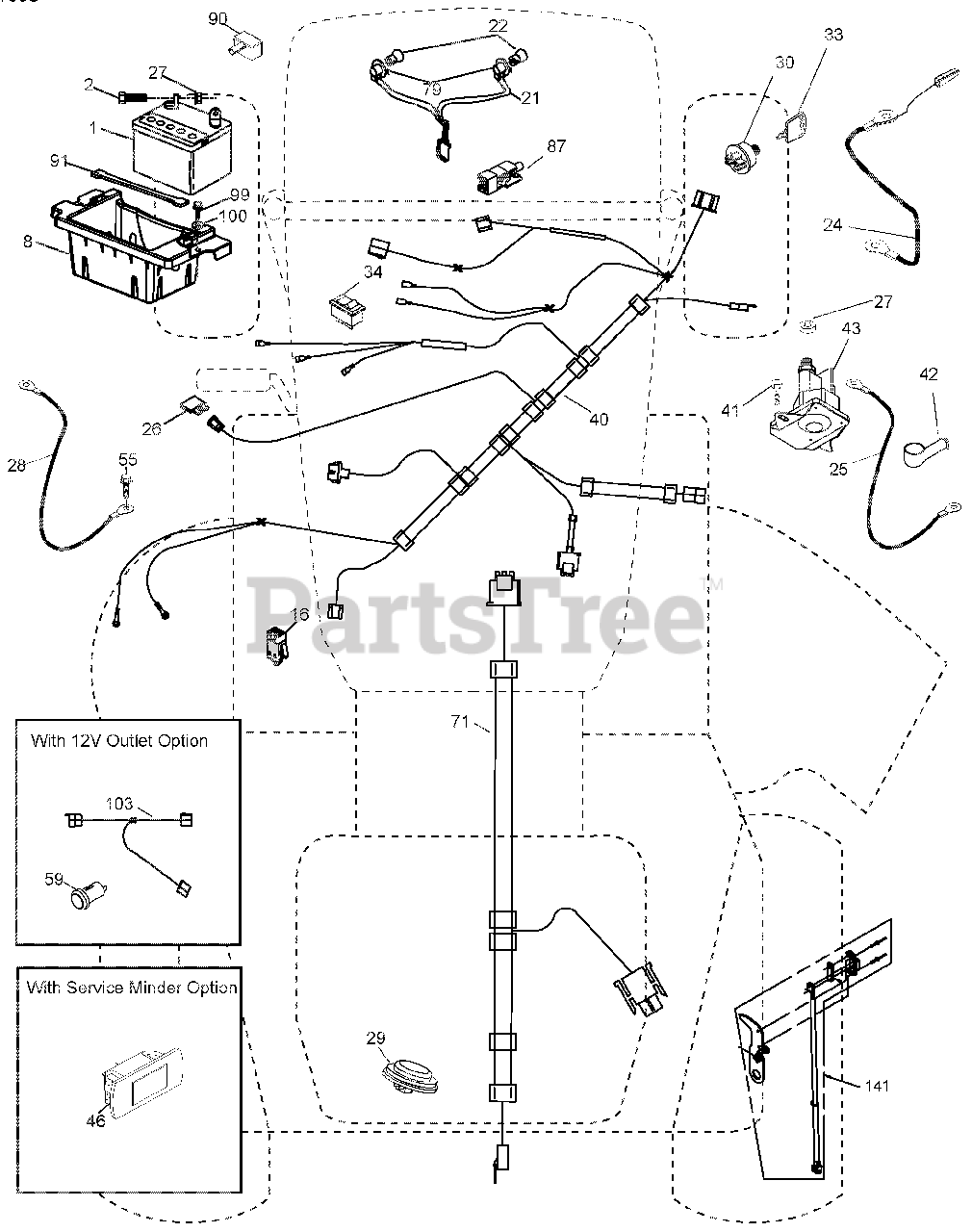

Electrical Parts Diagram

  • Title
1

Ariens 21546162

BATTERY.12.VOLT.28.AMP.WET

$

$

Not available

2

Ariens 21546803

BOLT.HEX.HD.1/4-20UNC X 3/4

$7.49

$

In Stock, only 1 left!

0

8

Ariens 21546233

BOX.BATTERY.MOUNT.FRONT.LT

$28.99

$

Usually ships in 4-12 days

0

16

Ariens 21546205

SWITCH.INTERLOCK.NONO.GRAY

$22.99

$

In Stock, Qty 8

0

21

Ariens 21546226

HARNESS ASM.LIGHT.22"(4152J)

Note: (4152j)

$

$

Not available

22

Ariens 21546673

BULB.LIGHT.#1156

$7.99

$

In Stock, only 1 left!

0

24

Ariens 21546556

CABLE.BTRY.PSWRE.DSH SOL.8"TEX

$

$

Not available

25

Ariens 21546646

CABLE.STARTER.6GA.BL/RED.14.5"

$

$

Not available

26

Ariens 21546200

FUSE.20 AMP.

$7.49

$

In Stock, only 2 left!

0

27

Ariens 21546779

Nut, Keps Hex 1/4-20 unc

$2.99

$

Usually ships in 4-12 days

0

28

Ariens 21546112

CABLE.GROUND.21"BLK.6 GA.90T

$10.99

$

Usually ships in 4-12 days

0

29

Ariens 21546574

SWITCH.SEAT.DELTA.OPC.9LB.

$39.99

$

In Stock, Qty 6

0

30

Ariens 21546319

SWITCH.IGN.DLTA.P-IN.ROS

$22.99

$

In Stock, only 3 left!

0

33

Ariens 21546640

KEY/CHAIN.BLISTER PACK.GEN.CE

$10.99

$

Usually ships in 4-12 days

0

34

Ariens 21546050

SWITCH.LIGHT/RESET.B/B/RED.

$9.49

$

In Stock, only 4 left!

0

40

Ariens 21546568

HARNESS.IGN.DASH.CBL.YTGT.PRED

$120.99

$

Usually ships in 4-12 days

0

41

Ariens 21546210

Screw 1/4-20 x 1/2

$7.49

$

Usually ships in 4-12 days

0

42

Ariens 21546082

COVER.TERMINAL.RED

$

$

Not available

43

Ariens 21546294

SOLENOID.W/BRASS PLUNGER.2005

$

$

Not available

55

Ariens 21546187

SCREW.5/16-18X3/4.SMGML.TAP/R

$7.49

$

Usually ships in 4-12 days

0

71

Ariens 21546323

HARNESS.IGN.CHASSIS.TEX

$40.99

$

Usually ships in 4-12 days

0

79

Ariens 21546201

SOCKET ASM.BULB.TWISTLOCK

$22.99

$

In Stock, only 1 left!

0

87

Ariens 21546457

SWITCH.INTRLCK.CLUTCH.CABLE.TX

$18.99

$

In Stock, Qty 7

0

90

Ariens 21546559

COVER.TERMINAL.BATTERY.FR.TEX

$

$

Not available

91

Ariens 21546274

STRAP.BATTERY.MOUNT.FRONT

$9.99

$

In Stock, Qty 13

0

99

Ariens 21546207

SCREW.HEXWSH.THDROL.1/4-20X3/4
(Superseded to 21548385)

$4.99

$

In Stock, only 1 left!

0

100

Ariens 21546277

WASHER.9/32 X 7/8 X 16GA.

$

$

Not available

141

Ariens 21546680

KIT.T2.ROS.(71677)

Note: (71677)

$

$

Not available
