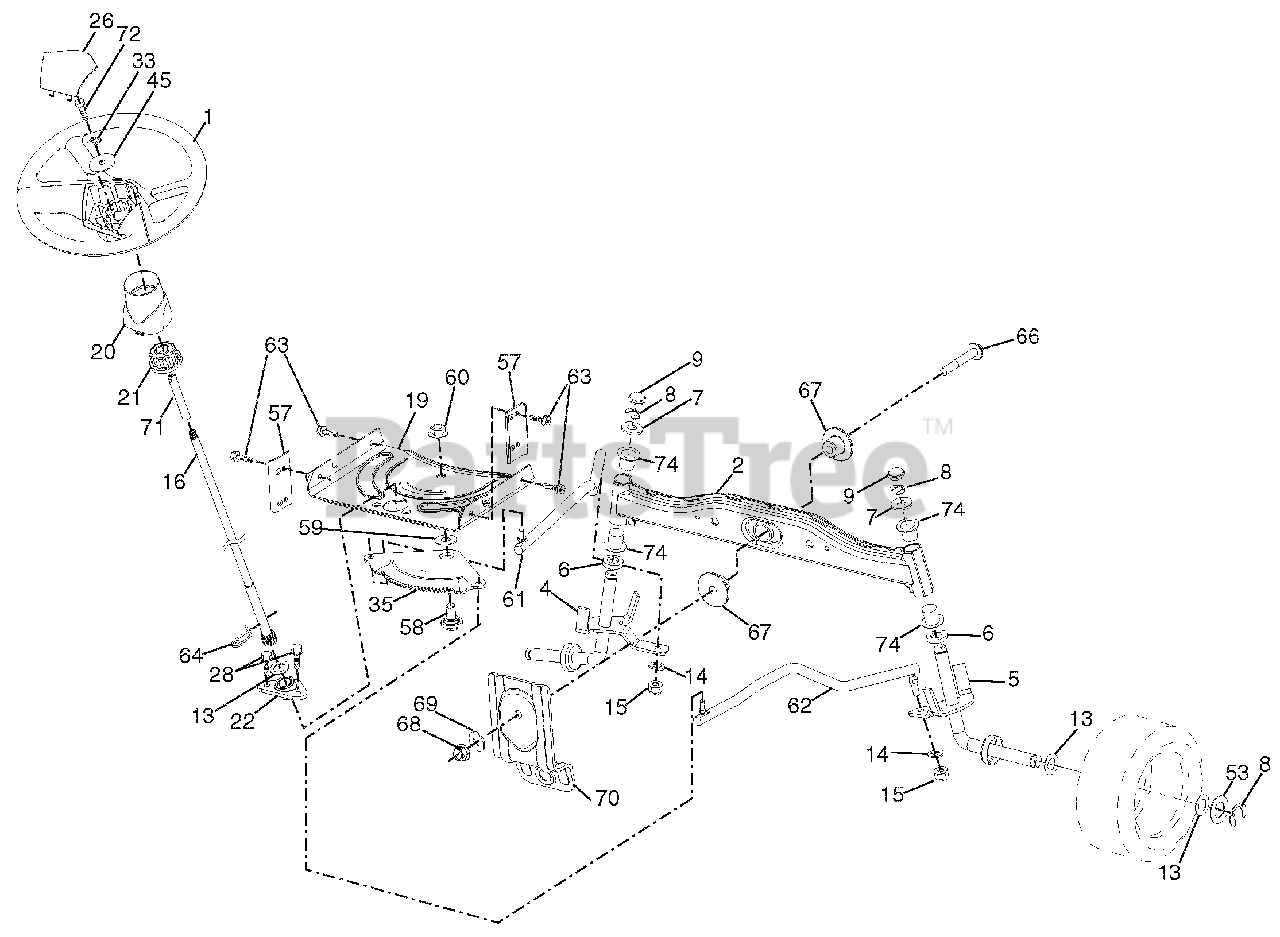

936038 (960460002-00) - Ariens 42" Lawn Tractor, 19hp Kohler, Hydro Steering Parts Diagram

42" Lawn Tractor, 19hp Kohler, Hydro

Steering Parts Diagram

  • Title

1

Ariens 21546664

WHEEL.STEERING.HARD RIM.BLACK

$93.99

$

In Stock, only 1 left!

0

2

Ariens 21546681

AXLE ASM.WELDED

$

$

Not available

4

Ariens 21546582

SPINDLE.WELDED.LH.15"TEX

$

$

Not available

5

Ariens 21546583

SPINDLE.WELDED.RH.15"TEX

$

$

Not available

6

Ariens 21546750

WASHER.THRUST..75 X 1.230

$7.49

$

In Stock, Qty 11

0

7

Ariens 21546066

WASHER.25/32 X 1-5/8 X 16GA.

$4.99

$

In Stock, Qty 20+

0

8

Ariens 21546053

RING.KLIP.#T5304-75

$4.99

$

Usually ships in 4-12 days

0

9

Ariens 21546064

CAP.SPINDLE.FR.TOP.BLK.

$4.99

$

In Stock, Qty 9

0

13

Ariens 21546067

WASHER.25/32 X 1 1/4 X 16 GA.

$3.49

$

Usually ships in 4-12 days

0

14

Ariens 21546003

Washer, Lock 3/8
(Superseded to 21546909)

$0.99

$

In Stock, Qty 20+

0

15

Ariens 21546782

NUT.CROWNLOCK.3/8-24

$4.99

$

Usually ships in 4-12 days

0

16

Ariens 21546629

SHAFT.STEER.5/8 TEX.NON-PLATED
(Superseded to 21549003)

$51.99

$

Usually ships in 4-12 days

0

19

Ariens 21546334

PLATE.STEER.DDL.NLT/NGT

$18.99

$

Usually ships in 4-12 days

0

20

Ariens 21546475

BOOT.STEERING.LT.TEX P/L.428
(Superseded to 21548173)

$17.99

$

In Stock, Qty 18

0

21

Ariens 21546234

ADAPTER.WHEEL.STRG..760
(Superseded to 21548917)

$9.49

$

In Stock, Qty 8

0

22

Ariens 21546342

BUSHING ASM STEERING.ALUM.NLT
(Superseded to 21548943)

$17.99

$

In Stock, only 4 left!

0

26

Ariens 21546665

CAP.WHL.STRG.HRS/SRS.BLACK
(Superseded to 21547568)

$7.99

$

In Stock, only 1 left!

0

28

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 21546002

Washer, Lock 5/16

$5.99

$

Usually ships in 4-12 days

0

35

Ariens 21546335

GEAR SECTOR.PLATE.DDL.NLT/NGT

$31.99

$

In Stock, Qty 20+

0

45

Ariens 21546280

WASHER.11/32ID X2 3/8OD X 12GA

$9.49

$

Usually ships in 4-12 days

0

53

Ariens 21546272

WASHER.HARDEN..793 X 1.637X060

$4.99

$

In Stock, Qty 20+

0

57

Ariens 21546623

BRACKET.UPSTOP.TEX

$

$

Not available

58

Ariens 21546339

BOLT.SHOULDER.SECTOR.PIVOT.CFM

$9.49

$

In Stock, only 3 left!

0

59

Ariens 21546340

WASHER.THRUST.SECTOR.STEER.NLT

$7.49

$

In Stock, only 3 left!

0

60

Ariens 21546797

NUT.FLANGE LOCK.5/8-11
(Superseded to 06500509)

$3.99

$

In Stock, only 3 left!

0

61

Ariens 21546337

DRAGLINK.LH.BALLSTUD.DDL.

$13.99

$

Usually ships in 3-10 days

0

62

Ariens 21546338

DRAGLINK.RH.BALLSTUD.DDL

$

$

Not available

63

Ariens 21546180

SCREW.5/16-18X3/4.SMGML.TAP/BL
(Superseded to 21547490)

$12.99

$

In Stock, only 2 left!

0

64

Ariens 21546512

RETAINER.CLIP.SPRING.STEERING

$6.49

$

In Stock, Qty 9

0

66

Ariens 21546754

BOLT.HEX.FGHD.7/16-14 X 3.SERR

$6.49

$

In Stock, only 4 left!

0

67

Ariens 21546336

BUSHING.PM.FRONT AXLE

$

$

Not available

68

Ariens 21546791

NUT.LOCK.FLANGE.7/16-14.GR5

$7.49

$

In Stock, Qty 13

0

69

Ariens 21546483

WASHER.1.5 X .505 X .118

$6.49

$

In Stock, only 1 left!

0

70

Ariens 21546386

BRACKET.DECK.SUSPENSION.FRONT
(Superseded to 21548851)

$

$

Not available

71

Ariens 21546381

SHAFT.EXTEN.STRG.SPLINE.TEX

$18.99

$

In Stock, only 2 left!

0

72

Ariens 21546815

BOLT.FIN.HEX.5/16-18UNCX4.5.G5

$5.49

$

Usually ships in 4-12 days

0

74

Ariens 21546550

BEARING.COL.STRG.BLK.

$4.99

$

In Stock, Qty 20+

0
