936036 (YT 2548) - Ariens 48" Yard Tractor, 25hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) Rear Wheel And Hydro Drive Parts Diagram

48" Yard Tractor, 25hp Briggs & Stratton, Twin Hydro

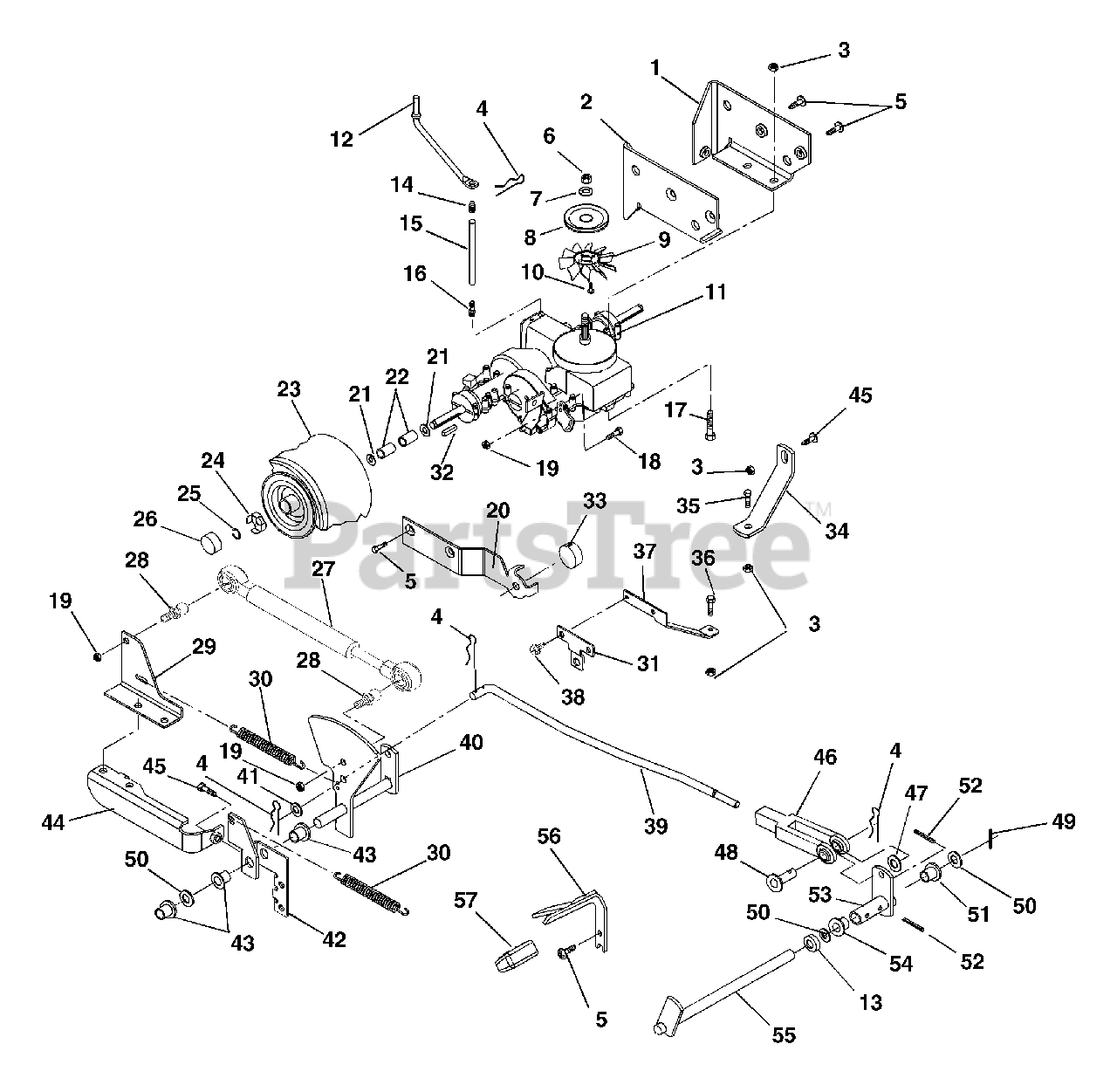

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Ariens 03678951

TRANS MOUNT, LH

$

$

Not available

2

Ariens 03678851

TRANS MOUNT, RH

$

$

Not available

3

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Ariens 06539500

NUT-JAM .50-20 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Ariens 07321400

SHEAVE - TRANSAXLE
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

9

Ariens 03570000

FAN

$35.99

$

Usually ships in 4-12 days

0

10

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 03648800

TRANSAXLE- HYDRO #325-0750
(Superseded to 03668900)

$

$

Not available

12

Ariens 03677200

ROD, TRANS DISCONNECT

$5.99

$

Usually ships in 4-12 days

0

13

Ariens 00211100

BSHG, SPCR.500X.750X.321 PM

$3.49

$

In Stock, Qty 5

0

14

Ariens 07026400

CAP-VENT .50

$14.99

$

In Stock, only 2 left!

0

15

Ariens 03635100

HOSE- VENT .50ID X 7.50LONG

$

$

Not available

16

Ariens 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 2 left!

0

17

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03672500

MOUNT, MAGNET

$

$

Not available

21

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

22

Ariens 03694300

SPACER, WHEEL (YT 2548)

$

$

Not available

23

Ariens 07157100

ASSEMBLY, 22 INCH TIRE/WHEEL

$

$

Not available

23

Ariens 07157000

RIM, 22 IN TIRE
(Superseded to 07157100)

$

$

Not available

23

Ariens 07136900

T/WHL ASSY 18X8.50-8

$

$

Not available

24

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

25

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

In Stock, only 1 left!

0

26

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

27

Ariens 03652100

DAMPER - HYDRAULIC

$52.99

$

Usually ships in 4-12 days

0

28

Ariens 03652200

STUD- BALL

$3.49

$

In Stock, only 3 left!

0

29

Ariens 03650900

ANCHOR - SPRING - TOP

$

$

Not available

30

Ariens 08320200

SG-TENS .085X.60X5.13 WLD8.3

$13.99

$

Usually ships in 4-12 days

0

31

Ariens 03678000

SUPPORT, SHIFT ARM

$5.99

$

Usually ships in 4-12 days

0

32

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

33

Ariens 03672400

MAGNET

$

$

Not available

34

Ariens 03677300

STRAP, TORQUE L.H (HYDRO)

$

$

Not available

35

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

$1.49

$

In Stock, Qty 13

0

36

Ariens 05963700

@BLT-HEX .31-18X2.25 GR5 YWZC
(Superseded to 05901806)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 03677400

STRAP, TORQUE R.H (HYDRO)

$

$

Not available

38

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

39

Ariens 03677600

ROD, SHIFT

$

$

Not available

40

Ariens 03677900

ARM, SHIFT (WELDMENT)

$

$

Not available

41

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 03665100

PIVOT - REVERSE

$

$

Not available

43

Ariens 05518000

BSHG-FLG .508X.645X.459X.75 NY

$26.99

$

Usually ships in 4-12 days

0

44

Ariens 03652300

ANCHOR - SPRING - BOTTOM

$

$

Not available

45

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

46

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

47

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

48

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

49

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

50

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

51

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

52

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

53

Ariens 03651700

ARM & HUB

$

$

Not available

54

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 9

0

55

Ariens 03684400

SHAFT-PEDAL (SINGLE)

Note: (Single)

$

$

Not available

56

Ariens 03687251

PEDAL-F/R SIERRA COMP

$

$

Not available

57

Ariens 07524000

COVER - PEDAL - FORWARD

$34.99

$

Usually ships in 4-12 days

0
