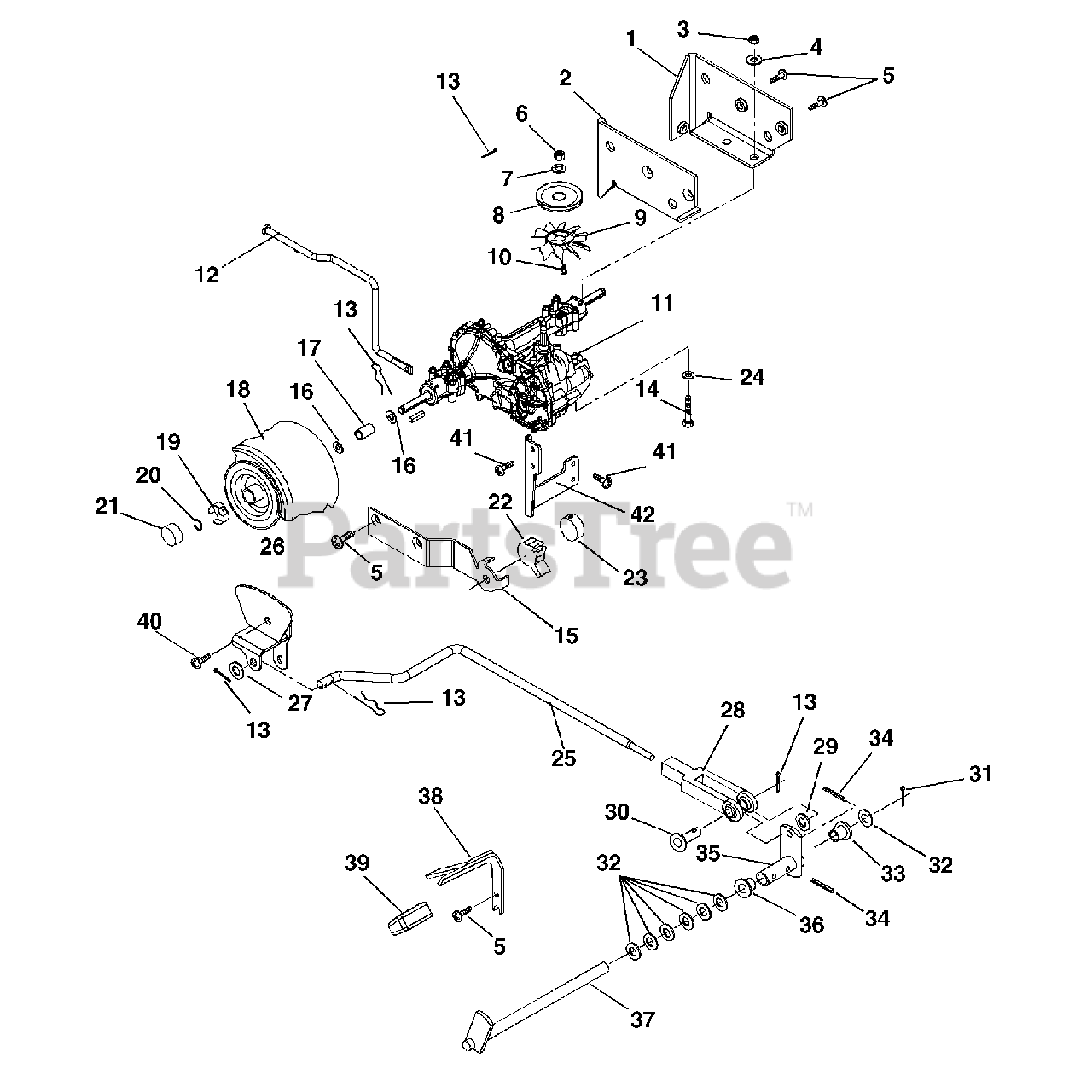

936035 (YT 1742) - Ariens 42" Yard Tractor, 17hp Briggs & Stratton, Hydro (SN: 000101 & Above) Rear Wheel And Hydro Drive Parts Diagram

42" Yard Tractor, 17hp Briggs & Stratton, Hydro

Rear Wheel And Hydro Drive Parts Diagram

  • Title

1

Ariens 03678951

TRANS MOUNT, LH

$

$

Not available

2

Ariens 03678851

TRANS MOUNT, RH

$

$

Not available

3

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 07414100

@SCR-TAP .38-16X1.00 HWH TR YZ
(Superseded to 07417500)

$3.99

$

In Stock, only 2 left!

0

6

Ariens 06539500

NUT-JAM .50-20 GR2 YWZC

$2.49

$

Usually ships in 4-12 days

0

7

Ariens 06307300

@WSHR-LK .50X.125 REG YWZC
(Superseded to 06300115)

$1.49

$

In Stock, Qty 16

0

8

Ariens 07321400

SHEAVE - TRANSAXLE
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

9

Ariens 03693700

FAN, TRANSMISSION (510)
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

10

Ariens 07406900

SCR-TAP 10-24X.484 HWH TR

$2.49

$

Usually ships in 4-12 days

0

11

Ariens 03693200

TRANSAXLE, HYDRO (510)

$

$

Not available

12

Ariens 03693300

DISCONNECT, TRANS.
(Superseded to 03696100)

$

$

Not available

13

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

14

Ariens 05960600

@BLT-HEX .31-18X2.75 GR5 YWZC
(Superseded to 05901807)

$2.49

$

In Stock, only 2 left!

0

15

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

16

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, Qty 13

0

17

Ariens 03693600

SPACER, WHEEL .752X1.25X2.00

$

$

Not available

18

Ariens 07153500

TIRE ASSEMBLY 20 X 10.00-8

$136.99

$

Usually ships in 4-12 days

0

18

Ariens 07153600

RIM-SIERRA

$

$

Not available

18

Ariens 07133200

TIRE 20X10-8 2P TS TL

$102.99

$

Usually ships in 4-12 days

0

19

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

20

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

22

Ariens 03664700

MOUNT - MAGNET

$

$

Not available

23

Ariens 03359700

MAGNET

$

$

Not available

24

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03693500

ROD, SHIFT

$

$

Not available

26

Ariens 03693000

BRACKET, SHIFTROD (WELDMENT)

$

$

Not available

27

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

Usually ships in 4-12 days

0

29

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

30

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

31

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

32

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

33

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

34

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 4 left!

0

35

Ariens 03651700

ARM & HUB

$

$

Not available

36

Ariens 05520600

BSHG-FLG .502X1X.750

$9.49

$

In Stock, Qty 6

0

37

Ariens 03684400

SHAFT-PEDAL (SINGLE)

Note: (Single)

$

$

Not available

38

Ariens 03687251

PEDAL-F/R SIERRA COMP

$

$

Not available

39

Ariens 07524000

COVER - PEDAL - FORWARD

$34.99

$

Usually ships in 4-12 days

0

40

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 03692900

BRACKET, TRANS. SUPPORT

$

$

Not available
