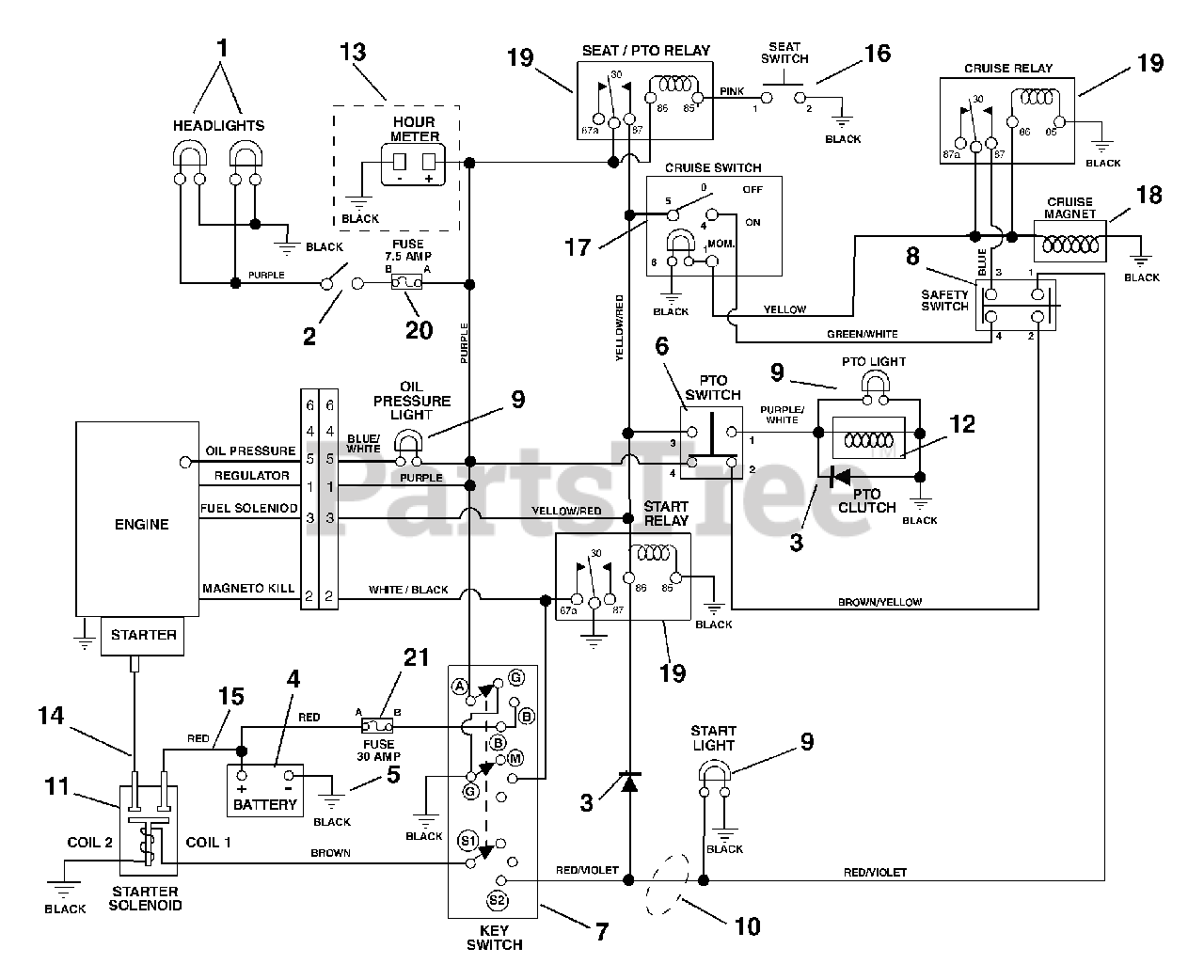

936034 (YT 1540) - Ariens 40" Yard Tractor, 15hp Briggs & Stratton, Hydro (SN: 000101 & Above) Wiring Diagram Parts Diagram

40" Yard Tractor, 15hp Briggs & Stratton, Hydro

Wiring Diagram Parts Diagram

  • Title

1

Ariens 03420500

HEADLIGHT BULB, 1156

$30.99

$

In Stock, only 1 left!

0

2

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

3

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

In Stock, only 1 left!

0

4

Ariens 01554800

BATTERY, 300 CCA 10U1L

$

$

Not available

5

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

7

Ariens 01563700

SWITCH KEY 5Y463A ALT GRDNG

$34.99

$

In Stock, only 1 left!

0

8

Ariens 08828100

SWITCH,INTERLOCK

$20.99

$

In Stock, only 1 left!

0

9

Ariens 03683100

BULB, #194

$

$

Not available

10

Ariens 03694800

HARNESS, 6 PIN YT
(Superseded to 03694801)

$

$

Not available

11

Ariens 03679000

SOLENOID
(Superseded to 59223400)

$60.99

$

In Stock, Qty 20+

0

12

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Note: (034)

$296.99

$

Usually ships in 4-12 days

0

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

Note: (036)

$491.99

$

In Stock, only 1 left!

0

13

Ariens 73600800

HOURMETER KIT- SIERRA

Note: (Optional)

$

$

Not available

14

Ariens 03287200

CABLE - START 22.00"

$17.99

$

In Stock, only 1 left!

0

15

Ariens 00145900

STARTER CABLE 6.75"

$20.99

$

In Stock, only 1 left!

0

16

Ariens 03654200

SWITCH- SEAT

$14.99

$

In Stock, Qty 8

0

17

Ariens 03656900

SWITCH - CRUISE

$22.99

$

Usually ships in 4-12 days

0

18

Ariens 03359700

MAGNET

$

$

Not available

19

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

20

Ariens 00524800

FUSE, 7.5 AMP

$

$

Not available

21

Ariens 00524600

FUSE, 30 AMP.

$

$

Not available
