936031 (YT 2048) - Ariens 48" Yard Tractor, 20hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) Attachment Lift Parts Diagram

48" Yard Tractor, 20hp Briggs & Stratton, Twin Hydro

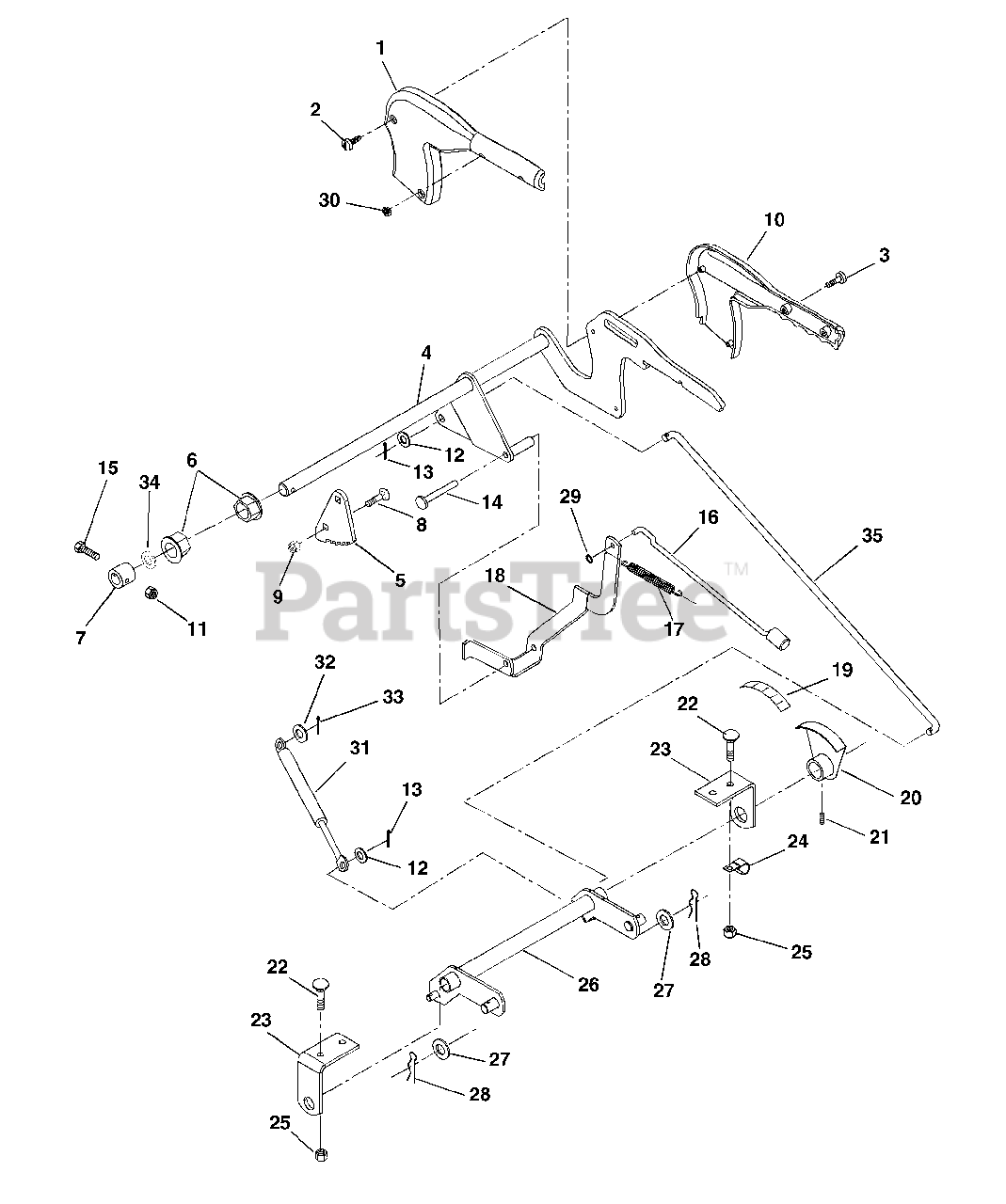

Attachment Lift Parts Diagram

  • Title

1

Ariens 03665500

COVER - LIFT RH

$

$

Not available

2

Ariens 07412600

SCR-TAP 10-16X1.125HI-LOTPHBL

$3.49

$

Usually ships in 4-12 days

0

3

Ariens 06111100

SCR-MCH 10-24X.62 P/HD

$0.99

$

In Stock, Qty 14

0

4

Ariens 03348351

LEVER, LIFT
(Superseded to 03348300)

$

$

Not available

5

Ariens 03679500

QUADRANT, LIFT

$16.99

$

Usually ships in 4-12 days

0

6

Ariens 05521600

BSHG-FLG .750X.873HEXX.53X1.18

$10.99

$

In Stock, Qty 20+

0

7

Ariens 03689500

SPACER-1.25X1.12X.75 W/HOLE

$

$

Not available

8

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 03665600

COVER - LIFT LH

$

$

Not available

11

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

13

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

14

Ariens 03653800

PIN, PIVOT .312 X 2.56

$

$

Not available

15

Ariens 05952500

@BLT-HEX .25-20X1.50 GR5 YWZC
(Superseded to 05901739)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03675000

PIN, LIFT

$

$

Not available

17

Ariens 08330300

SG-TENS .048X.44X2.25 WLD 9

$

$

Not available

18

Ariens 03683000

LEVER, DETENT
(Superseded to 03683051)

$60.99

$

Usually ships in 4-12 days

0

19

Ariens 08082800

DECAL, INDICATOR

$

$

Not available

20

Ariens 03676200

INDICATOR, DECK HEIGHT(ASSY.)

$

$

Not available

21

Ariens 06000500

SCR-SET .25-20X.25 SKHCUP OH

$2.49

$

In Stock, only 1 left!

0

22

Ariens 06211800

BLT-RHHDSQSHNK .38-16X.75 G2YZ
(Superseded to 06200336)

$2.49

$

In Stock, Qty 20+

0

23

Ariens 03687800

BRACKET, CENTER LIFT

$

$

Not available

24

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

25

Ariens 06534900

@NUT-SPNLK-FLG .375-16 YWZC
(Superseded to 06500735)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 03687600

LEVER, CENTER LIFT

$

$

Not available

27

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

29

Ariens 05717600

RG-RTNG-EXT .250X.010

$0.99

$

In Stock, Qty 20+

0

30

Ariens 06541300

NUT,10-24 LOW CROWN, ACORN

$3.99

$

In Stock, Qty 8

0

31

Ariens 03694500

SPRING, 150# GAS

Note: (031, 032, 033, 035, 320, 330)

$

$

Not available

Ariens 03692100

SPRING, GAS (100 LB)

Note: (034)

$

$

Not available

32

Ariens 06435700

@WSHR-FL-STL.38X.875X.083 YWZC
(Superseded to 06401023)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 06439000

@WSHR-FL-STL.812X1.50X.135YWZC
(Superseded to 06401140)

$1.49

$

In Stock, Qty 20+

0

35

Ariens 03352700

LINK, LIFT

$

$

Not available
