936031 (YT 2048) - Ariens 48" Yard Tractor, 20hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) 48" Mower Deck And Rollers Parts Diagram

48" Yard Tractor, 20hp Briggs & Stratton, Twin Hydro

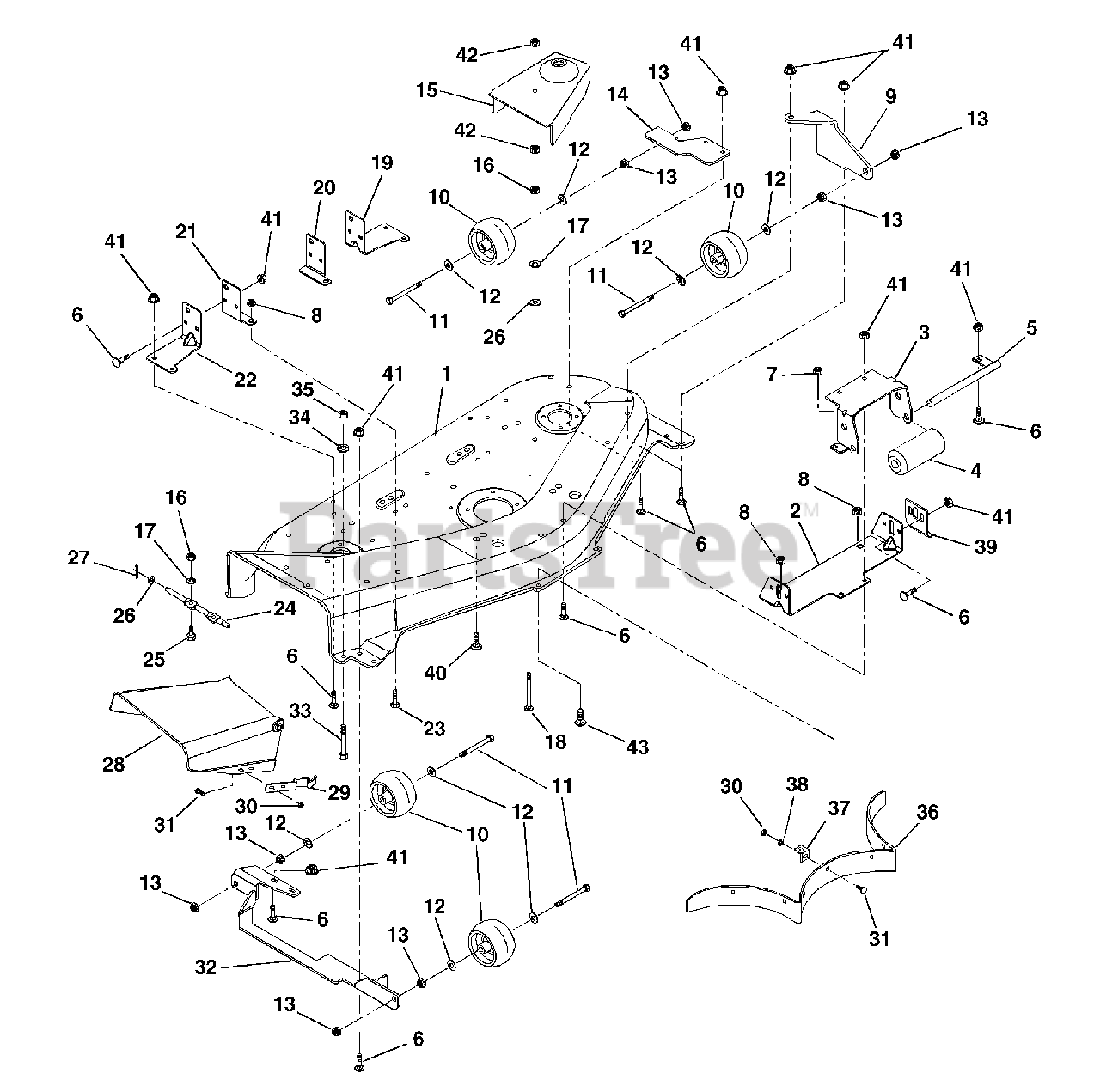

48" Mower Deck And Rollers Parts Diagram

  • Title

1

Ariens 53607300

48" DECK W/DECALS - GLT
(Superseded to 51503400)

$

$

Not available

2

Ariens 01521251

FRONT HANGER

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 03435151

BRACKET, ROLLER

$81.99

$

Usually ships in 4-12 days

0

4

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

5

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 06215700

@BLT-RDHDSQNK .31-18X.75 G5YZ
(Superseded to 06200232)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06543600

@NUT-LK-TOP-FLG .50-13 YWZC
(Superseded to 06500907)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 01533859

BRACKET, LEFT FRONT
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

10

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

11

Ariens 05961900

@BLT-HEX .50-13X4.00 GR5 YWZC
(Superseded to 05901734)

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06519700

NUT-LK-CTR-JAM .50-13 YWZC(ND)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 01534159

BRACKET, LEFT REAR

$

$

Not available

15

Ariens 03096259

COVER, RIGHT HAND
(Superseded to 03096200)

$142.99

$

Usually ships in 4-12 days

0

15

Ariens 03095959

COVER, LEFT HAND

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

17

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06223500

BLT-RDHDSQNK .312-18X3.25 YWZC

$3.99

$

Usually ships in 4-12 days

0

19

Ariens 01535851

LH REAR HANGER

$38.99

$

Usually ships in 4-12 days

0

20

Ariens 01521600

LH REAR HANGER SUPPORT
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

21

Ariens 01521400

RH REAR HANGER SUPPORT
(Superseded to 01521451)

$46.99

$

Usually ships in 4-12 days

0

22

Ariens 01535751

RH REAR HANGER
(Superseded to 01535700)

$56.99

$

Usually ships in 4-12 days

0

23

Ariens 05947100

@BLT-HEX .50-13X1.00 GR5 YWZC
(Superseded to 05901715)

$2.49

$

In Stock, Qty 7

0

24

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

25

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 10

0

28

Ariens 03034959

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

Usually ships in 4-12 days

0

29

Ariens 00318559

FLAT SPRING - ORANGE
(Superseded to 01597751)

$20.99

$

Usually ships in 4-12 days

0

30

Ariens 06529700

@NUT-LK-CTR .25-20 YWZC
(Superseded to 06500812)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06220600

@BLT-RDHDSQNK .25-20X.50 G5YZ
(Superseded to 06200306)

$0.99

$

In Stock, Qty 20+

0

32

Ariens 01533959

MOUNT ROLLER
(Superseded to 01533900)

$

$

Not available

33

Ariens 06224400

@BLT-RDHDSQNK .38-16X2.50 G5YZ
(Superseded to 06200234)

$3.99

$

In Stock, Qty 20+

0

34

Ariens 06306700

WSHR-LK .375X.130 YWZC

$3.99

$

In Stock, only 1 left!

0

35

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 03434251

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

37

Ariens 03434351

BAFFLE TAB

$

$

Not available

38

Ariens 06437300

@WSHR-FL-STL.281X.62X.065 YWZC
(Superseded to 06401001)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 03581751

MOWER ADJUSTMENT TAB
(Superseded to 03581700)

$

$

Not available

40

Ariens 06224600

@BLT-RDHDSQNK .50-13X1.00 G5YZ
(Superseded to 06200420)

$3.99

$

In Stock, only 3 left!

0

41

Ariens 06543100

@NUT-LK-TOP-FLG .31-18 YWZC
(Superseded to 06500904)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 06216100

@BLT-RDHDSQNK .31-18X1.00 G5YZ
(Superseded to 06200231)

$1.49

$

In Stock, Qty 20+

0
