936031 (YT 2048) - Ariens 48" Yard Tractor, 20hp Briggs & Stratton, Twin Hydro (SN: 000101 & Above) 40 & 48" Hanger Arm Parts Diagram

48" Yard Tractor, 20hp Briggs & Stratton, Twin Hydro

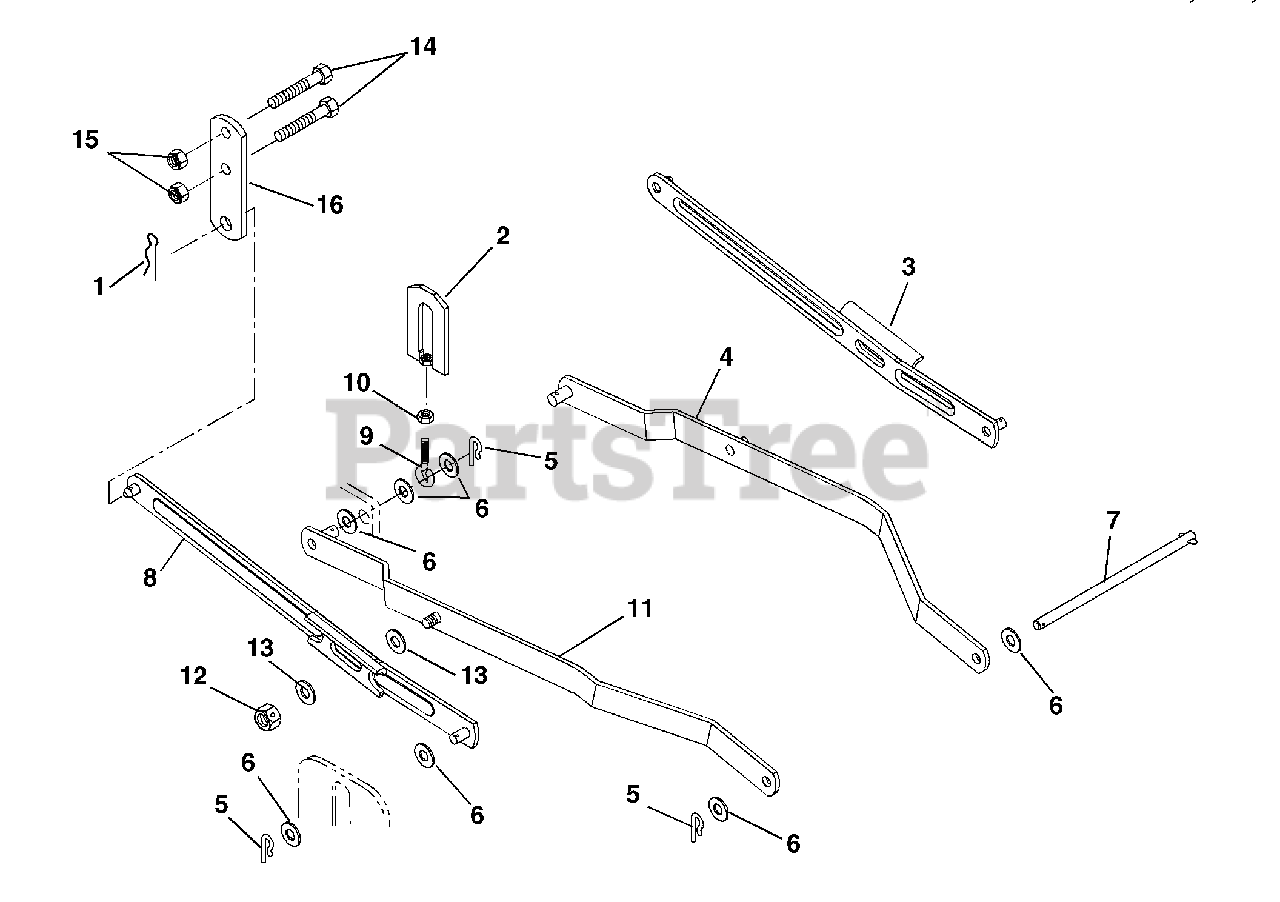

40 & 48" Hanger Arm Parts Diagram

  • Title

1

Ariens 06711900

PIN-HAIR-EXT .12X.31X2.37 YWZC

$2.99

$

In Stock, only 2 left!

0

2

Ariens 03486451

LINK, ADJUSTMENT
(Superseded to 03486400)

Note: (031, 034)

$43.99

$

Usually ships in 4-12 days

0

2

Ariens 03694200

LINK, ADJUSTER

Note: (036)

$

$

Not available

3

Ariens 01587451

HANGER, REAR LH

$

$

Not available

4

Ariens 01587251

ARM, LIFT LH

$

$

Not available

5

Ariens 06944800

CLIP, SPRING

$0.99

$

In Stock, Qty 20+

0

6

Ariens 06441900

@WSHR-FL-STL.531X1.06X.095YWZC
(Superseded to 06401015)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 01535900

PIN

$39.99

$

Usually ships in 4-12 days

0

8

Ariens 01587551

HANGER, REAR RH

Note: (031, 036)

$

$

Not available

5

Ariens 03695151

HANGER, REAR RH

Note: (034)

$

$

Not available

9

Ariens 03624500

HANGER

Note: (031, 036)

$

$

Not available

9

Ariens 07030000

BLT-EYE .375-16X2.50 YWZC

Note: (034)

$7.99

$

Usually ships in 4-12 days

0

10

Ariens 06535900

NUT-HEX-JAM .375-16 YWZC
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 01587351

ARM, LIFT RH

$

$

Not available

12

Ariens 06535300

@NUT-LK-CTR .62-11 YWZC

$2.99

$

Usually ships in 4-12 days

0

13

Ariens 06442800

@WSHR-FL-STL.656X1.31X.095 YWZ
(Superseded to 06401118)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 05959400

@BLT-HEX .38-16X.75 GR5 YWZC
(Superseded to 05901702)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 06542000

@NUT-LK-TOP-FLG .38-16 YWZC
(Superseded to 06500822)

$1.49

$

In Stock, Qty 20+

0

16

Ariens 03588751

HANGER BRACKET

$30.99

$

Usually ships in 4-12 days

0
