936027 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) Mower Deck 40" Parts Diagram

Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro

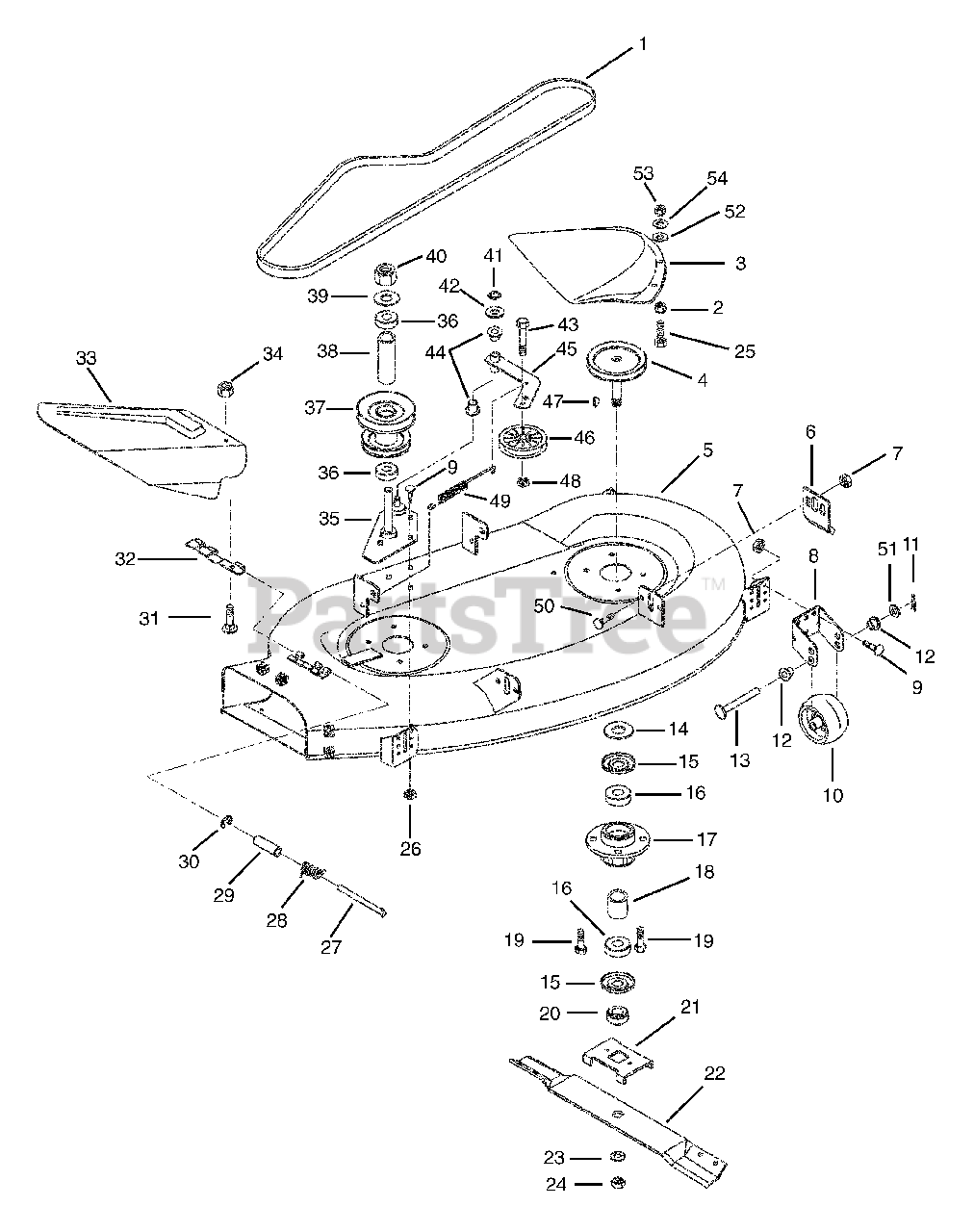

Mower Deck 40" Parts Diagram

  • Title

1

Ariens 07229600

V-BELT, 4L-RAW EDGE

$51.99

$

In Stock, only 2 left!

0

2

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

3

Ariens 01520100

COVER

$59.99

$

Usually ships in 4-12 days

0

4

Ariens 03615400

L. SPINDLE SHEAVE

$90.99

$

Usually ships in 4-12 days

0

4

Ariens 03615300

R. SPINDLE SHEAVE

$75.99

$

Usually ships in 4-12 days

0

5

Ariens 53606000

40" MOWER DECK W/DECALS
(Superseded to 53610700)

$

$

Not available

5

Ariens 53606100

40" MOWER DECK ASSY COMPLETE
(Superseded to 53610800)

$

$

Not available

6

Ariens 03581759

MOWER ADJUSTMENT TAB
(Superseded to 03581700)

Note: (936022,023,026,027,310-312)

$

$

Not available

7

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 02747659

CLEVIS
(Superseded to 02747651)

Note: (936022,023,026,027,310-312)

$27.99

$

In Stock, only 1 left!

0

9

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

11

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

13

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 1 left!

0

14

Ariens 06444200

WSHR-FL-STL .755X1.25X.125 YZ
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

15

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

16

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

17

Ariens 03625000

SPINDLE HOUSING

$168.99

$

Usually ships in 4-12 days

0

18

Ariens 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

19

Ariens 06212000

@BLT-RDHDSHSQNK.38-16X1.0 G5YZ
(Superseded to 06200235)

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

21

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

22

Ariens 03624700

BLADE

$31.99

$

In Stock, Qty 5

0

23

Ariens 06310300

@WSHR-LK .75X.188 REG YWZC

$1.49

$

In Stock, Qty 20+

0

24

Ariens 06537700

NUT-JAM .75-10 YWZC

$2.49

$

In Stock, only 2 left!

0

25

Ariens 05948700

@BLT-HEX .38-16X1.00 GR5 YWZC
(Superseded to 05901711)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 03624200

PIN

$51.99

$

In Stock, only 1 left!

0

28

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

29

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

30

Ariens 05706300

RG-RTNG-EXT .312X.025

$0.99

$

Usually ships in 4-12 days

0

31

Ariens 06214300

BLT-RDHDSQSHNK.25-20X.50 YWZC
(Superseded to 06200305)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 02709559

HINGE PLATE
(Superseded to 02709551)

Note: (936022,023,026,027,310-312)

$27.99

$

In Stock, only 1 left!

0

33

Ariens 03609800

40IN. CHUTE DEFLECTOR

$89.99

$

Usually ships in 4-12 days

0

34

Ariens 06530100

@NUT-SPNLK-FLG .25-20 YWZC
(Superseded to 06500824)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 03624900

MOUNT PLATE 40"

$109.99

$

Usually ships in 4-12 days

0

36

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

37

Ariens 03602200

JACKSHAFT PULLEY

$219.99

$

Usually ships in 4-12 days

0

38

Ariens 03615500

SPACER .640X.880X2.545

$27.99

$

In Stock, only 1 left!

0

39

Ariens 06436100

WSHR-FL-STL .630X1.005X.062 YZ
(Superseded to 06401117)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 06530300

@NUT-LK-NYL .625-18 YWZC
(Superseded to 06500936)

$3.99

$

In Stock, only 3 left!

0

41

Ariens 05710200

RG-RTNG-EXT .500X.042 (E)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 05957900

@BLT-HEX .38-16X1.50 GR5 YWZC
(Superseded to 05901928)

$1.49

$

In Stock, Qty 14

0

44

Ariens 05503700

BSHG-FLG.500X.625X.312X.750NY

$0.99

$

In Stock, Qty 20+

0

45

Ariens 03623800

IDLER ARM
(Superseded to 03623851)

$60.99

$

Usually ships in 4-12 days

0

46

Ariens 07309300

IDLER-FLAT 3.00X.38

$37.99

$

In Stock, only 1 left!

0

47

Ariens 06604200

KEY-WDRF .188X.625X.31 SAE9MOD
(Superseded to 06608700)

$1.49

$

In Stock, Qty 20+

0

48

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 08329000

SG-TENS .113X.812X7.00

$20.99

$

Usually ships in 4-12 days

0

50

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

51

Ariens 06416800

WSHR-PLASTIC .390X.875X.062
(Superseded to 06433600)

$0.99

$

In Stock, Qty 11

0

52

Ariens 06436200

@WSHR-FL-STL.406X.812X.065 YWZ
(Superseded to 06401013)

$0.99

$

In Stock, Qty 20+

0

53

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

54

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0
