936027 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) Exhaust Parts Diagram

Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro

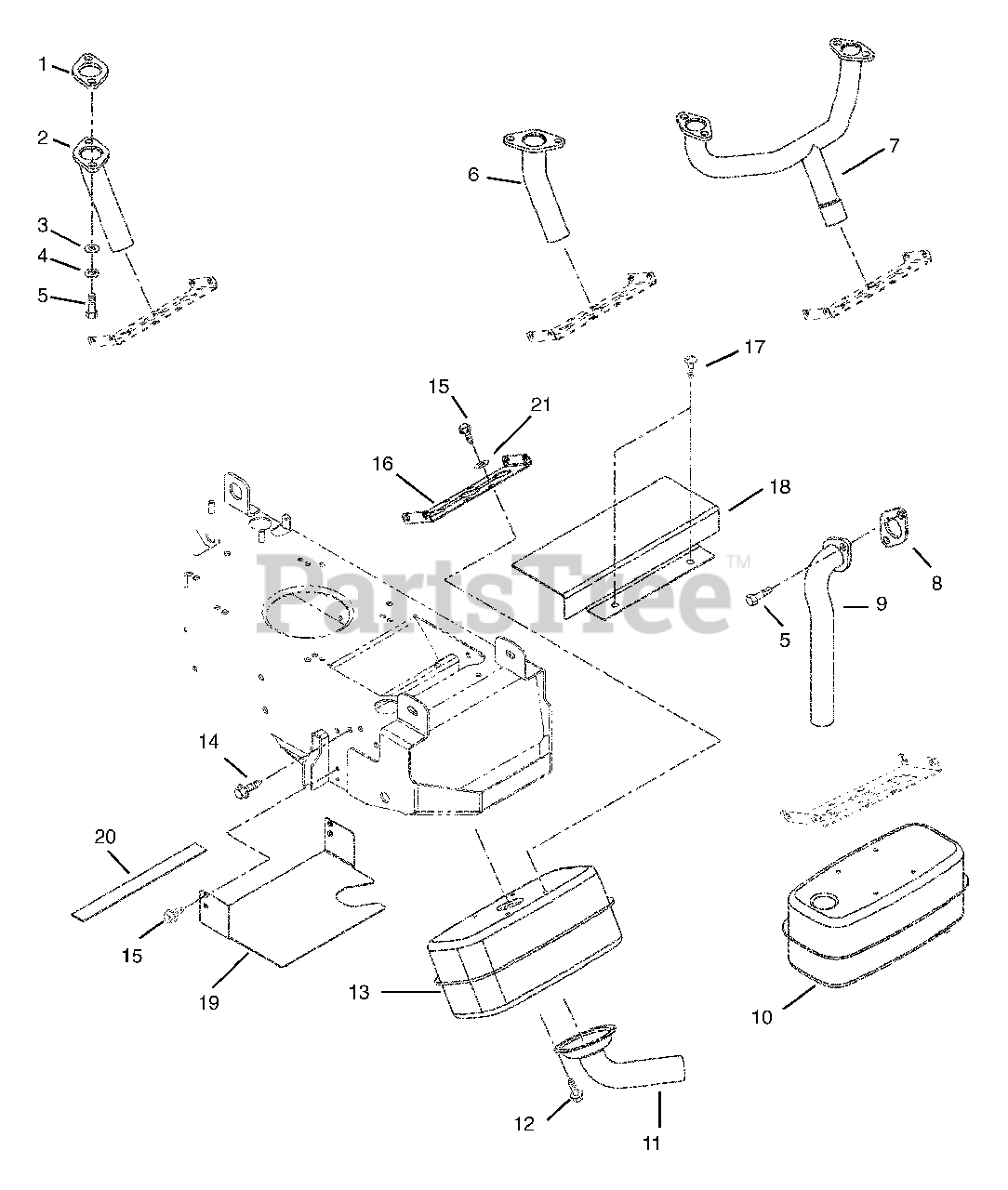

Exhaust Parts Diagram

  • Title

1

Ariens 03615000

GASKET- 12.5/13 TEC (#35-414)

Note: (936022)

$5.99

$

Usually ships in 4-12 days

0

2

Ariens 03648400

TUBE - EXHAUST WELD. 13 HP

Note: (936022)

$

$

Not available

3

Ariens 06436700

WSHR-FL-STL .323X.625X.062 YWZ
(Superseded to 06401002)

Note: (936022)

$1.49

$

In Stock, only 2 left!

0

4

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (936022)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 05933100

SCR-CAP .31-18X.75 S/HD
(Superseded to 05901827)

Note: (936022-023,310,312)

$2.49

$

In Stock, only 3 left!

0

6

Ariens 03656200

PIPE - EXHAUST

Note: (936024,026)

$85.99

$

Usually ships in 4-12 days

0

7

Ariens 03648700

PIPE - EXHAUST TWIN B&S

Note: (936027,311,313)

$

$

Not available

8

Ariens 03652700

GASKET B&S#272293

Note: (936023,310,312)

$8.99

$

Usually ships in 4-12 days

0

9

Ariens 03656100

PIPE - EXHAUST

Note: (936023,310,312)

$

$

Not available

10

Ariens 03654400

MUFFLER W/DEFLECTOR

Note: (936023,310,312)

$138.99

$

Usually ships in 4-12 days

0

11

Ariens 03656300

DEFLECTOR - EXHAUST

Note: (936022,024,025,027,311,313)

$57.99

$

Usually ships in 4-12 days

0

12

Ariens 07414500

SCR-TAP 8-32X.38 SL HWH YWZC

Note: (936022,024,025,026,027,311,313)

$2.49

$

Usually ships in 4-12 days

0

13

Ariens 03654300

MUFFLER - EXHAUST

Note: (936022,024,025,026,027,311,313)

$157.99

$

In Stock, only 2 left!

0

14

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

15

Ariens 07414600

@SCR-TAP 12-24X.75 HWH YWZC

$3.49

$

Usually ships in 4-12 days

0

16

Ariens 03648600

BRACKET - MUFFLER

$

$

Not available

17

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

Note: (936025,027,311,313)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 03358300

SHIELD - HEAT

Note: (936025,027,311,313)

$

$

Not available

19

Ariens 03657800

SHIELD - HEAT
(Superseded to 53407200)

$

$

Not available

20

Ariens 03658900

HEAT SHIELD- FABRIC 1X10.75

$

$

Not available

21

Ariens 06442300

@WSHR-FL-STL.250X.56X.049 YWZC

$1.99

$

Usually ships in 4-12 days

0
