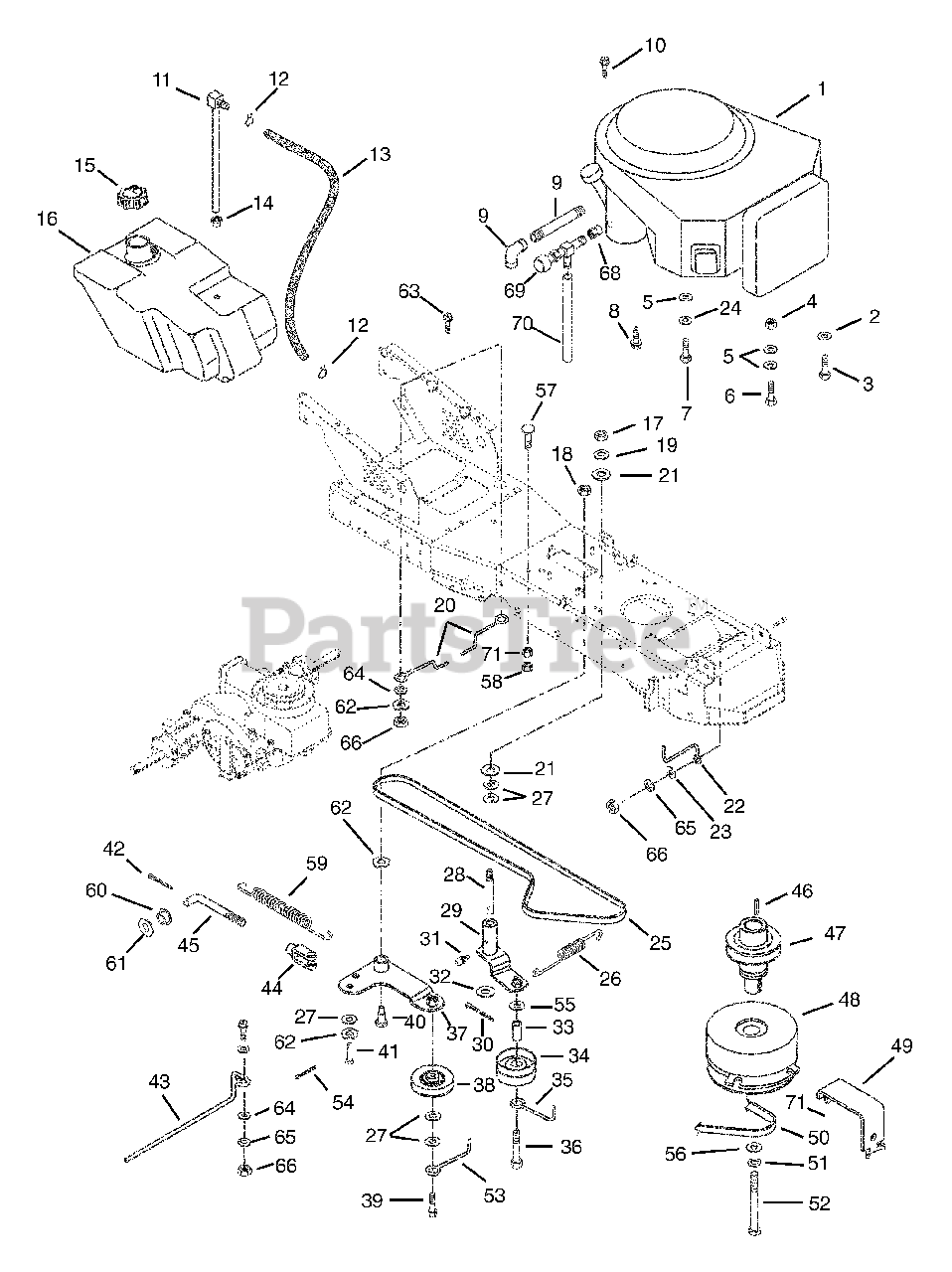

936027 (1640 H) - Ariens Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) Engine, Fuel Tank & Belt Drive Parts Diagram

Sierra 40" Yard Tractor, 16hp Briggs & Stratton, Hydro

Engine, Fuel Tank & Belt Drive Parts Diagram

  • Title

1

Ariens 08252100

ENGINE BRIGGS 16HP TWIN

Note: (936025,027,311,313)

$

$

Not available

1

Ariens 08253300

ENGINE TECUMSEH 13HP VERT

Note: (936022)

$

$

Not available

1

Ariens 08254000

BRIGG 15HP W/9AMP CHARGING

Note: (936023,310,312)

$

$

Not available

1

Ariens 08245200

ENG- 15.0 KOHLER OHV PS-41531

Note: (936024,026)

$

$

Not available

2

Ariens 06308700

@WSHR-LK-EXT.391X.628X.036YWZC

Note: (936023,310,312)

$1.99

$

Usually ships in 4-12 days

0

3

Ariens 07414700

@SCR-TAP .38-16X1.25 HWH TR YZ
(Superseded to 07400128)

Note: (936023,310,312)

$2.99

$

In Stock, only 3 left!

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

Note: (936022,025,027,311,313)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

Note: (936022,025,027,311,312)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

Note: (936024,026)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 05952400

@BLT-HEX .31-18X1.50 GR5 YWZC
(Superseded to 05901710)

Note: (936022,025,027,311,313)

$1.49

$

In Stock, Qty 12

0

7

Ariens 05964900

BLT, HEX M8-1.25X25 GR8.8YWZC

Note: (936024,026)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 02749600

NIPPLE

Note: (936022,023,024,026,310,312)

$9.49

$

Usually ships in 4-12 days

0

9

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

10

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

11

Ariens 03606500

TANK FITTING

$

$

Not available

12

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

13

Ariens 03659300

HOSE- FUEL LINE 36.00"

Note: (936022,023,310,312)

$

$

Not available

13

Ariens 03659400

HOSE- FUEL LINE 48.00"

Note: (936025,027,311,313)

$13.99

$

Usually ships in 4-12 days

0

13

Ariens 03659500

HOSE- FUEL LINE 50.00"

Note: (936024,026)

$

$

Not available

14

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

15

Ariens 01538400

FUEL CAP

$15.99

$

In Stock, only 1 left!

0

16

Ariens 03627500

FUEL TANK

$

$

Not available

17

Ariens 06529400

@NUT-HEX .38-16 YWZC
(Superseded to 06500917)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 06308800

@WSHR-LK .38X.094 REG YWZC
(Superseded to 06300116)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 03622600

BELT FINGER

$64.99

$

Usually ships in 4-12 days

0

21

Ariens 06435900

@WSHR-FL-STL.438X1.00X.083 YWZ
(Superseded to 06401008)

$1.49

$

In Stock, Qty 20+

0

22

Ariens 03622400

BELT FINGER

$43.99

$

Usually ships in 4-12 days

0

23

Ariens 06435800

@WSHR-FL-STL.312X.734X.065 YWZ
(Superseded to 06401124)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

Note: (936024,026)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 07229500

V-BELT, 4L-WRAPPED

Note: (936022,312)

$52.99

$

In Stock, only 2 left!

0

25

Ariens 07229700

V-BELT, 4L-WRAPPED

Note: (936023-027,310-311,313)

$60.99

$

In Stock, only 1 left!

0

26

Ariens 08334700

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

27

Ariens 06444300

WSHR-FL-STL .390X.75X.125 YWZC

$7.99

$

In Stock, Qty 8

0

28

Ariens 03622900

SHOULDER STUD

$34.99

$

In Stock, only 2 left!

0

29

Ariens 03646100

ARM - IDLER PIVOT

$93.99

$

Usually ships in 4-12 days

0

30

Ariens 06712700

@PIN-CTR .18X1.25 EXTPRSQCT YZ

$1.99

$

In Stock, only 3 left!

0

31

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

32

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

33

Ariens 03638400

TUBE .380 X .625 X 1.620

$24.99

$

Usually ships in 4-12 days

0

34

Ariens 07308800

IDLER-FLAT 3.25 X .38 NWHAMSHR

$39.99

$

In Stock, Qty 8

0

35

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

36

Ariens 05960900

@BLT-HEX .38-16X3.50 GR5 YWZC
(Superseded to 05901818)

Note: (936022-024,026,310,312)

$3.99

$

In Stock, Qty 20+

0

36

Ariens 05959500

@BLT-HEX .38-16X3.75 GR5 YWZC
(Superseded to 05902025)

Note: (936025,027,311,313)

$3.49

$

Usually ships in 4-12 days

0

37

Ariens 03631200

IDLER PIVOT ARM

$61.99

$

Usually ships in 4-12 days

0

38

Ariens 07309200

IDLER-V 3X.38

$37.99

$

In Stock, only 2 left!

0

39

Ariens 05958500

@BLT-HEX .38-16X1.75 GR5 YWZC
(Superseded to 05901809)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

41

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

Usually ships in 4-12 days

0

42

Ariens 06706900

@PIN-CTR .09X.75 EXTPRSQCT YWZ

$0.99

$

In Stock, Qty 8

0

43

Ariens 03654600

FINGER - BELT

$77.99

$

Usually ships in 4-12 days

0

44

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

Usually ships in 4-12 days

0

45

Ariens 03647800

LINK

$

$

Not available

46

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

47

Ariens 03636500

SHEAVE EXTENSION SHAFT-GEAR

Note: (936022,312)

$

$

Not available

47

Ariens 03636400

SHEAVE EXTENSION SHAFT- HYDRO

Note: (936023-027,310,312,313)

$

$

Not available

48

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Note: (936022,023,026,027,310-312)

$296.99

$

Usually ships in 4-12 days

0

48

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

Note: (936024,025,313)

$491.99

$

In Stock, only 1 left!

0

49

Ariens 03656400

ANCHOR - CLUTCH

$25.99

$

Usually ships in 4-12 days

0

49

Ariens 03666500

ANCHOR - CLUTCH

Note: (936024,025,313)

$94.99

$

Usually ships in 4-12 days

0

50

Ariens 07229600

V-BELT, 4L-RAW EDGE

$51.99

$

In Stock, only 2 left!

0

51

Ariens 06310700

WSHR-LK .438X.133 HVY YWZC

$2.99

$

Usually ships in 4-12 days

0

52

Ariens 05966800

BLT-HEX .44-20X4.00 GR5 YWZC

Note: (936022-024,026,310-312)

$6.99

$

Usually ships in 4-12 days

0

52

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

Note: (936025,313)

$6.99

$

In Stock, Qty 7

0

53

Ariens 03638300

FINGER - BELT

$51.99

$

Usually ships in 4-12 days

0

54

Ariens 06713500

PIN-HAIR INT .08X.18X1.18 YWZC
(Superseded to 06700222)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 06436800

WSHR-FL-STL .390X.88X.18 YWZC

Note: (936024,025,313)

$3.99

$

Usually ships in 4-12 days

0

56

Ariens 06443500

WSHR-FL-STL.463X1.375X.25 YWZC

Note: (936024,025,313)

$6.99

$

Usually ships in 4-12 days

0

57

Ariens 06221800

BLT-RDHDSQNK .31-18X1.0 SHTYZ
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

58

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

59

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 2 left!

0

60

Ariens 05517500

BSHG-FLG .320X.620X.312 NY

$18.99

$

Usually ships in 4-12 days

0

61

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

62

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+

0

63

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

64

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

65

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

66

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

67

Ariens 06916000

J-CLAMP

$2.49

$

Usually ships in 4-12 days

0

68

Ariens 03493100

ADAPTER, OIL DRAIN

Note: (936025,027,311,313)

$5.99

$

Usually ships in 4-12 days

0

69

Ariens 03493200

COCK, OIL DRAIN
(Superseded to 00429000)

Note: (936025,027,311,313)

$39.99

$

In Stock, only 1 left!

0

70

Ariens 01523400

TUBE OIL DRAIN

Note: (936025,027,311,313)

$

$

Not available

71

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0
