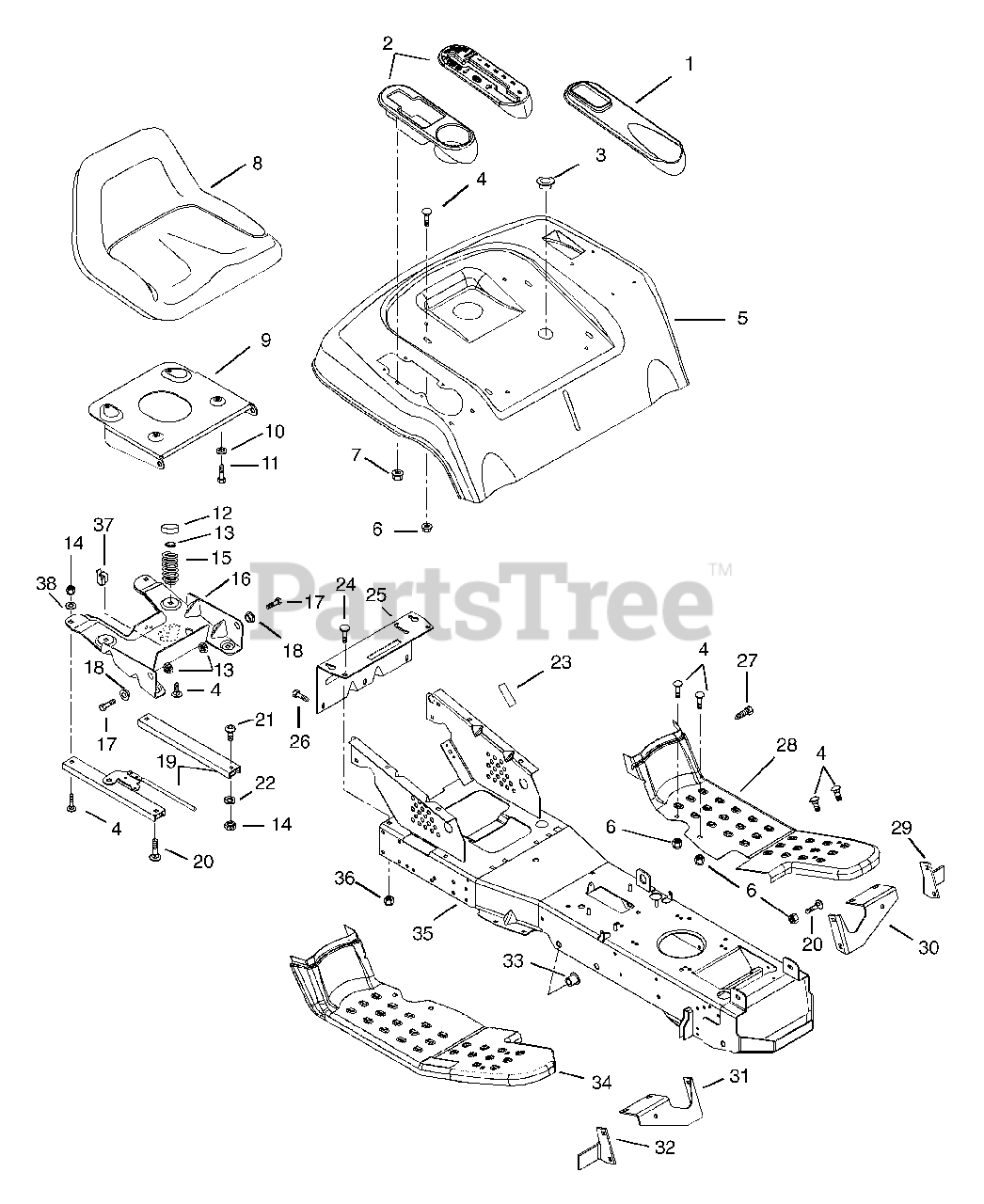

936026 (1540 H) - Ariens Sierra 40" Yard Tractor, 15hp Kohler, Hydro (SN: 000101 & Above) Frame & Rear Deck Parts Diagram

Sierra 40" Yard Tractor, 15hp Kohler, Hydro

Frame & Rear Deck Parts Diagram

  • Title

1

Ariens 03650300

INSERT- LIFT

$

$

Not available

2

Ariens 03652000

INSERT- SHIFT

Note: (For Models 936022 and 312)

$

$

Not available

2

Ariens 03652500

INSERT - BEVERAGE

Note: (For Models 936023-027, 310 and 311)

$

$

Not available

3

Ariens 07521000

SNAP BUSHING

$3.49

$

Usually ships in 4-12 days

0

4

Ariens 06212200

@BLT-RHDSSQNK .31-18X.62 G5YZ
(Superseded to 06200333)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03649459

REAR DECK

Note: (For Models 936022-027, 310-312)

$

$

Not available

6

Ariens 06530400

@NUT-SPNLK-FLG .312-18 YWZC
(Superseded to 06500815)

$1.49

$

In Stock, Qty 20+

0

7

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

$2.99

$

In Stock, only 1 left!

0

8

Ariens 03655600

SEAT- V1400

Note: (For Models 936022, 023, 310 and 312)

$

$

Not available

8

Ariens 03670500

SEAT
(Superseded to 00366300)

Note: (For Models 936024-027, 311 and 313)

$

$

Not available

9

Ariens 03650400

SEAT PIVOT PLATE

$

$

Not available

10

Ariens 06307400

WSHR-LK .312X.097 HVY YWZC
(Superseded to 06300123)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 07521600

TUBE CAP

$1.49

$

In Stock, Qty 6

0

13

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 06529200

@NUT-HEX .31-18 YWZC
(Superseded to 06500938)

$0.99

$

In Stock, Qty 10

0

15

Ariens 08328200

SG-COMP .148X1.23X2.41 WLD87

$15.99

$

In Stock, only 2 left!

0

16

Ariens 03618100

BOX, SEAT

$

$

Not available

17

Ariens 05947000

@BLT-HEX .31-18X.75 GR5 YWZC
(Superseded to 05901704)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

19

Ariens 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$104.99

$

Usually ships in 4-12 days

0

20

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

21

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

22

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0

23

Ariens 08800600

PAD,BATTERY

$

$

Not available

24

Ariens 06219600

@BLT-RDHDSQNK .38-16X.75 G2YWZ
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

25

Ariens 03601600

DRAW BAR

$

$

Not available

26

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

27

Ariens 07411500

@SCR-TAP .31-18X.50 HWH TR YWZ
(Superseded to 07400124)

$1.49

$

In Stock, Qty 20+

0

28

Ariens 03649359

FOOT REST L.H.

Note: (For Models 936022-027, 310-312)

$

$

Not available

29

Ariens 03648100

BRACKET - MOWER HEIGHT L.H.

$5.99

$

Usually ships in 4-12 days

0

30

Ariens 03649800

BRACE - FOOT REST L.H.

$

$

Not available

31

Ariens 03649900

BRACE - FOOT REST R.H.

$

$

Not available

32

Ariens 03648200

BRACKET - MOWER HEIGHT R.H.

$

$

Not available

33

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

34

Ariens 03649259

FOOT REST RH

Note: (For Models 936023-027, 310 and 311)

$14.99

$

Usually ships in 4-12 days

0

34

Ariens 03649500

FOOTREST- R GEAR

Note: (For Models 936022, 312)

$

$

Not available

35

Ariens 03355600

FRAME, MAIN
(Superseded to 03673551)

$

$

Not available

36

Ariens 06529600

@NUT-LK-CTR .38-16 YWZC
(Superseded to 06500825)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

38

Ariens 06308600

@WSHR-LK .31X.078 REG YWZC
(Superseded to 06300119)

$0.99

$

In Stock, Qty 20+

0
