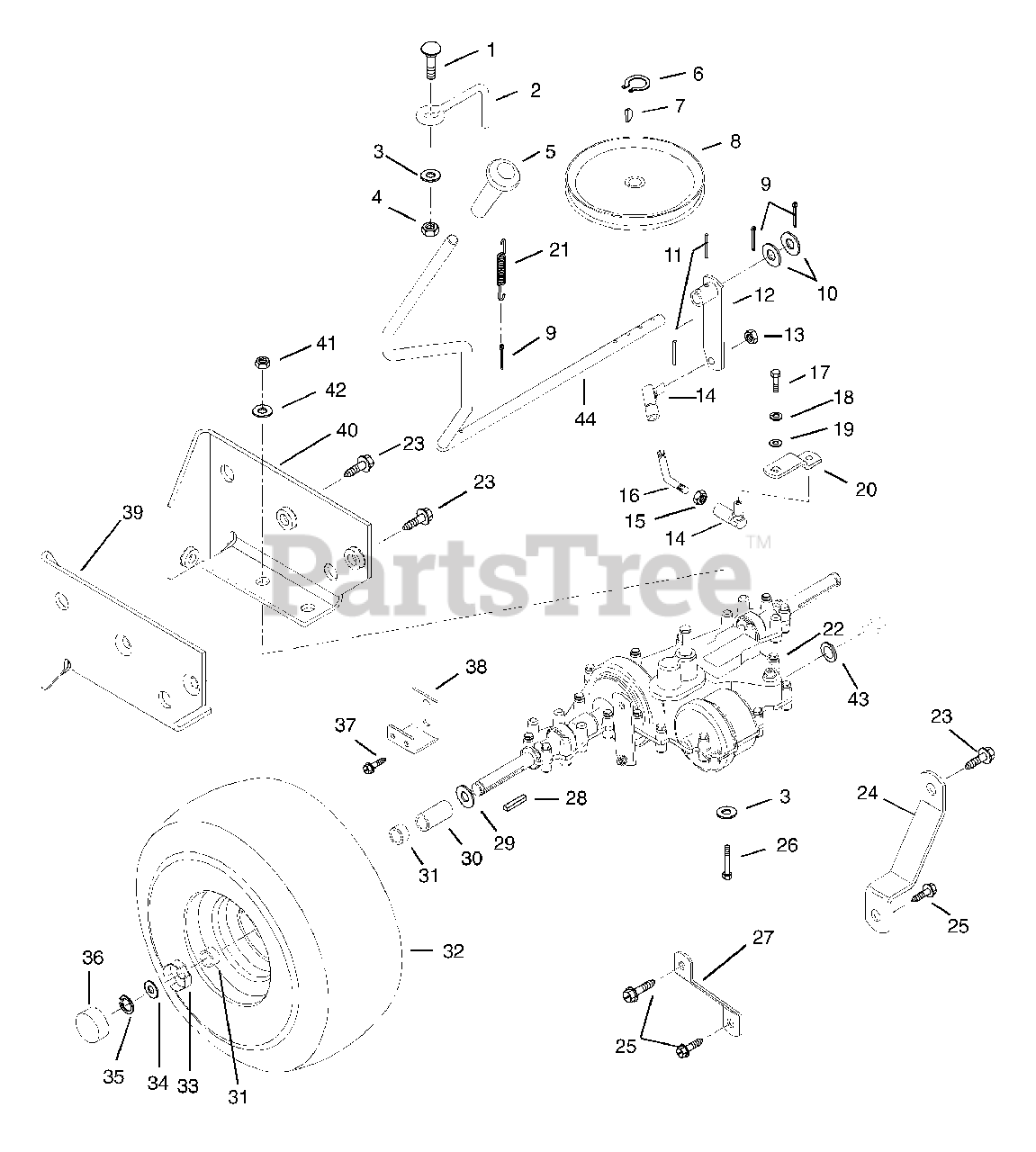

936022 (1340 G) - Ariens Sierra 40" Yard Tractor, 13hp Tecumseh, Gear (SN: 000101 & Above) Rear Wheel & Gear Drive Parts Diagram

Sierra 40" Yard Tractor, 13hp Tecumseh, Gear

Rear Wheel & Gear Drive Parts Diagram

  • Title

1

Ariens 06214100

BLT-RDHDSQSHK.31-18X.75 GR2 YW
(Superseded to 06200309)

$2.49

$

In Stock, Qty 20+

0

2

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

3

Ariens 06437200

@WSHR-FL-STL.344X.688X.065YWZC
(Superseded to 06401017)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

6

Ariens 05701900

RG-RTNG-EXT .625X.035
(Superseded to 05711900)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

8

Ariens 07309100

PLY-TRANS 7.00X.626

$

$

Not available

9

Ariens 06707100

@PIN-CTR .12X1.00 EXTPRSQCT YZ

$0.99

$

In Stock, Qty 10

0

10

Ariens 06441100

WSHR-FL-STL .52X.827X.062 YWZC
(Superseded to 06401114)

$2.49

$

In Stock, only 2 left!

0

11

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, Qty 5

0

12

Ariens 03638100

ARM & HUB

$

$

Not available

13

Ariens 06537000

NUT-CTRLK .31-24 YWZC

$

$

Not available

14

Ariens 03645500

BALL JOINT- SNAP IN

$

$

Not available

15

Ariens 06536700

NUT-JAM .31-24 YWZC
(Superseded to 06500923)

$0.99

$

In Stock, Qty 13

0

16

Ariens 03638200

LINK - SHIFT

$

$

Not available

17

Ariens 05952300

BLT-HEX .25-28X.75 GR5 YWZC

$1.99

$

Usually ships in 4-12 days

0

18

Ariens 06308000

WSHR-LK .250X.077 HVY YWZC

$

$

Not available

19

Ariens 06437500

WSHR-FL-STL .328X1.0X.094 YWZC
(Superseded to 06401027)

$3.99

$

In Stock, only 3 left!

0

20

Ariens 03638600

ARM - SHIFT 6 SPD

$

$

Not available

21

Ariens 08314100

SG-TENS .063X.44X1.56

$5.99

$

In Stock, Qty 8

0

22

Ariens 03652600

TRANSAXLE - GEAR 6 SPEED MST

$646.99

$

Usually ships in 4-12 days

0

23

Ariens 07415400

@SCR-TAP .38-16X.75 HWH TR YWZ
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03638500

STRAP - TORQUE,LH 6 SPD

$

$

Not available

25

Ariens 07414400

@SCR-TAP .31-18X.75 HWH TR YWZ
(Superseded to 07400127)

$1.49

$

In Stock, Qty 11

0

26

Ariens 05952600

@BLT-HEX .31-18X2.50 GR5 YWZC
(Superseded to 05901912)

$1.49

$

In Stock, Qty 20+

0

27

Ariens 03645100

TORQUE STRAP

$

$

Not available

28

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

29

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

30

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

31

Ariens 03604800

SPACER .760X1.000X.575

$

$

Not available

32

Ariens 07126900

T/WHL ASSY 20X8.00-8

$

$

Not available

Ariens 07133100

RIM
(Superseded to 07153600)

$

$

Not available

Ariens 07133200

TIRE 20X10-8 2P TS TL

$102.99

$

Usually ships in 4-12 days

0

33

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

34

Ariens 06441500

WSHR-FL-STL.755X1.375X.062YWZC
(Superseded to 06401016)

$3.99

$

In Stock, only 4 left!

0

35

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

In Stock, only 1 left!

0

36

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

37

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

38

Ariens 03603400

SHIFT GUIDE BRACKET

$11.99

$

Usually ships in 4-12 days

0

39

Ariens 03643900

MOUNT - TRANS. RH

$

$

Not available

40

Ariens 03645900

MOUNT - TRANS. LH

$

$

Not available

41

Ariens 06529800

@NUT-LK-CTR .31-18 YWZC
(Superseded to 06500826)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 06439400

WSHR-FL-STL .328X.875X.062YWZC

$3.99

$

Usually ships in 4-12 days

0

43

Ariens 05607500

O-RING .500X.629X.070

$3.99

$

Usually ships in 4-12 days

0

44

Ariens 03654500

LEVER - SHIFT

$

$

Not available
