936021 (1648 H) - Ariens Sierra 48" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) 48" Mower Spindle Parts Diagram

Sierra 48" Yard Tractor, 16hp Briggs & Stratton, Hydro

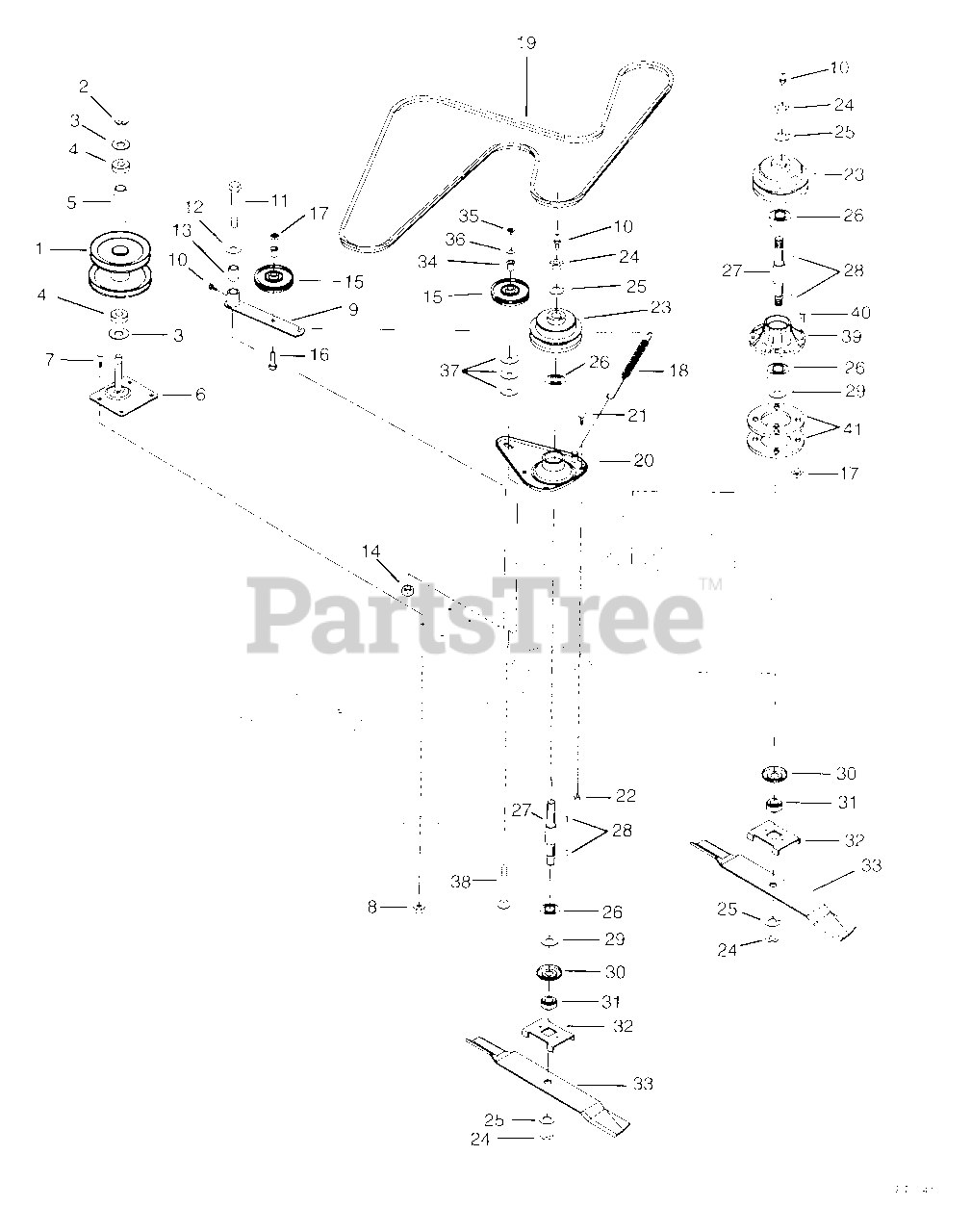

48" Mower Spindle Parts Diagram

  • Title

1

Ariens 03666900

JACKSHAFT - 48" DECK

$

$

Not available

2

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$3.99

$

In Stock, only 2 left!

0

3

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

4

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

5

Ariens 03615500

SPACER .640X.880X2.545

$27.99

$

In Stock, only 1 left!

0

6

Ariens 03666300

PLATE - MOUNT
(Superseded to 03666351)

$92.99

$

Usually ships in 4-12 days

0

7

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03666400

ARM - IDLER

$

$

Not available

10

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

11

Ariens 05921300

BLT-HEX .50-13X2.75 PL GR5
(Superseded to 05965500)

$4.99

$

Usually ships in 4-12 days

0

12

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 03433800

SPACER, PIVOT .500X.750X1.805

$

$

Not available

14

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

15

Ariens 00542700

IDLER, PLASTIC, 4.00 X .50 ID

$37.99

$

In Stock, only 1 left!

0

16

Ariens 05913300

BLT-HEX .38-16X1.25 PL GR5
(Superseded to 05958000)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 08327600

SG-TENS .075X.75X2.25 WLD20.7

$17.99

$

In Stock, only 1 left!

0

19

Ariens 07214100

V-BELT, 4L-WRAPPED

$52.99

$

Usually ships in 4-12 days

0

20

Ariens 03354600

HOUSING, SPINDLE

$64.73

$

Usually ships in 4-12 days

0

21

Ariens 06201900

BLT-RDHDSQNK .38-16X.62 GR5 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

22

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

23

Ariens 03401800

SHEAVE

$187.99

$

Usually ships in 4-12 days

0

24

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

25

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

27

Ariens 53115100

SPINDLE SHAFT W/ZERK

$74.99

$

In Stock, only 1 left!

0

28

Ariens 06601400

KEY-WDRF .188X.625X.25 SAE 61

$2.49

$

In Stock, Qty 6

0

29

Ariens 06404100

WSHR-FL-STL .754X1.000X.032
(Superseded to 06444100)

$2.99

$

In Stock, Qty 17

0

30

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

31

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

32

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

33

Ariens 03123700

BLADE

$23.99

$

Usually ships in 4-12 days

0

34

Ariens 03114500

SPACER -FLANGED .390X.500X.781

$9.99

$

In Stock, only 1 left!

0

35

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

36

Ariens 06400200

WSHR-FL-STL .38X.875X.083 PL
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

37

Ariens 06424800

WSHR-HDND-THR .390X1.50X.125PL

$9.49

$

Usually ships in 4-12 days

0

38

Ariens 06217900

BLT-RDHDSQNK .38-16X2.00
(Superseded to 06224300)

$3.99

$

In Stock, only 3 left!

0

39

Ariens 03433500

SPINDLE HOUSING

$

$

Not available

40

Ariens 06203500

BLT-RDHDSQNK .375-16X.75 PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

41

Ariens 03433600

SPACER, SPINDLE

$

$

Not available
