936021 (1648 H) - Ariens Sierra 48" Yard Tractor, 16hp Briggs & Stratton, Hydro (SN: 000101 & Above) 48" Mower Deck & Rollers Parts Diagram

Sierra 48" Yard Tractor, 16hp Briggs & Stratton, Hydro

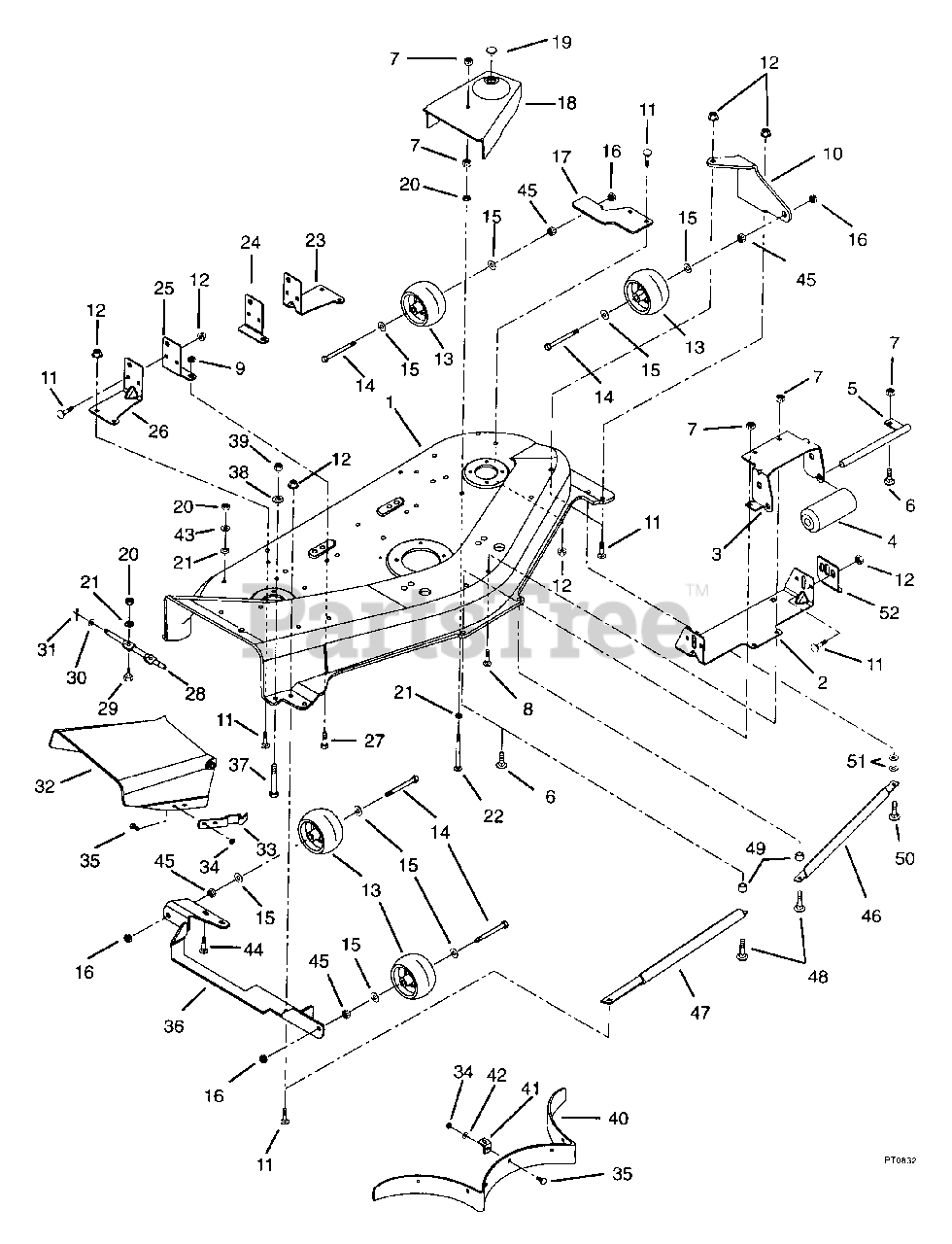

48" Mower Deck & Rollers Parts Diagram

  • Title

1

Ariens 53401700

MOWER PAN W/DECALS 48"- ORANGE

$

$

Not available

2

Ariens 01521200

FRONT HANGER
(Superseded to 01521251)

$45.99

$

Usually ships in 4-12 days

0

3

Ariens 03435100

BRACKET, ROLLER
(Superseded to 03435151)

$81.99

$

Usually ships in 4-12 days

0

4

Ariens 03114100

ROLLER

$22.99

$

In Stock, Qty 20+

0

5

Ariens 03435200

ROLLER SHAFT

$51.99

$

Usually ships in 4-12 days

0

6

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

Note: (021)

$2.49

$

In Stock, Qty 20+

0

6

Ariens 06201100

BLT-RDHDSQNK .31-18X.75 GR5 PL
(Superseded to 06215700)

Note: (309)

$2.49

$

In Stock, Qty 20+

0

7

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

8

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

9

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

10

Ariens 01533800

BRACKET - LEFT FRONT
(Superseded to 01533851)

$39.99

$

Usually ships in 4-12 days

0

11

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

Note: (021)

$2.49

$

In Stock, Qty 20+

0

11

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

Note: (309)

$2.49

$

In Stock, Qty 20+

0

12

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03471700

WHEEL 5 X 3
(Superseded to 03905600)

$15.99

$

In Stock, Qty 20+

0

14

Ariens 05936300

BLT-HEX .50-13X4.00
(Superseded to 05961900)

$3.99

$

Usually ships in 4-12 days

0

15

Ariens 06443300

WSHR-FL-NYL .518X1.000X.080

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06525800

NUT-LK .50-13 HEX TYPE N
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

17

Ariens 01534100

BRACKET - LEFT REAR

$

$

Not available

18

Ariens 03356500

COVER, R.H. BELT
(Superseded to 03096200)

$142.99

$

Usually ships in 4-12 days

0

18

Ariens 03482400

BELT COVER L H 48"
(Superseded to 03095959)

$34.99

$

Usually ships in 4-12 days

0

19

Ariens 07504000

BUTTON PLUG 1.0

$3.49

$

In Stock, only 1 left!

0

20

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

21

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06208700

BLT-RDHDSQNK .31-18X3.25 SHTPL
(Superseded to 06221300)

$5.99

$

Usually ships in 4-12 days

0

23

Ariens 01535800

LH REAR HANGER
(Superseded to 01535851)

$38.99

$

Usually ships in 4-12 days

0

24

Ariens 01521600

LH REAR HANGER SUPPORT
(Superseded to 01521651)

$17.99

$

Usually ships in 4-12 days

0

25

Ariens 01521400

RH REAR HANGER SUPPORT
(Superseded to 01521451)

$46.99

$

Usually ships in 4-12 days

0

26

Ariens 01535700

RH REAR HANGER

$56.99

$

Usually ships in 4-12 days

0

27

Ariens 05930000

BLT-HEX .50-13X1 PL GR5
(Superseded to 05947100)

$2.49

$

In Stock, Qty 7

0

28

Ariens 03405800

HINGE PIN

$46.99

$

Usually ships in 4-12 days

0

29

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

31

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

32

Ariens 03034900

CHUTE EXTENSION
(Superseded to 53402500)

$114.99

$

In Stock, only 1 left!

0

33

Ariens 00318500

SPRING, FLAT
(Superseded to 01597751)

$20.99

$

In Stock, only 1 left!

0

34

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06205300

BLT-RDHDSQNK .25-20X.50 SHT PL
(Superseded to 06220600)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 01533900

MOUNT - ROLLER

$

$

Not available

37

Ariens 05921600

BLT-HEX.38-16X2.5FTHD GR2 YWZC

$2.99

$

In Stock, only 3 left!

0

38

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 3 left!

0

39

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 03434259

BAFFLE
(Superseded to 03434200)

$83.99

$

Usually ships in 4-12 days

0

41

Ariens 03434300

BAFFLE TAB
(Superseded to 03434351)

$

$

Not available

42

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 06504600

NUT-LK-CTR .50-13
(Superseded to 06536300)

$3.99

$

In Stock, only 2 left!

0

46

Ariens 03667200

GUARD - FOOT - LH

Note: (309)

$

$

Not available

47

Ariens 03667300

GUARD - FOOT - RH

Note: (309)

$

$

Not available

48

Ariens 06202300

BLT-RDHDSQNK .31-18X1.50 PL
(Superseded to 06212100)

Note: (309)

$1.49

$

In Stock, Qty 19

0

49

Ariens 01529600

SPACER .375 X .625 X .500

Note: (309)

$

$

Not available

50

Ariens 06215900

BLT-RDHDSQNK .31-18X1.25
(Superseded to 06219200)

Note: (309)

$3.99

$

Usually ships in 4-12 days

0

51

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

Note: (309)

$7.99

$

In Stock, Qty 8

0

52

Ariens 03581700

MOWER ADJUSTMENT TAB

$

$

Not available
