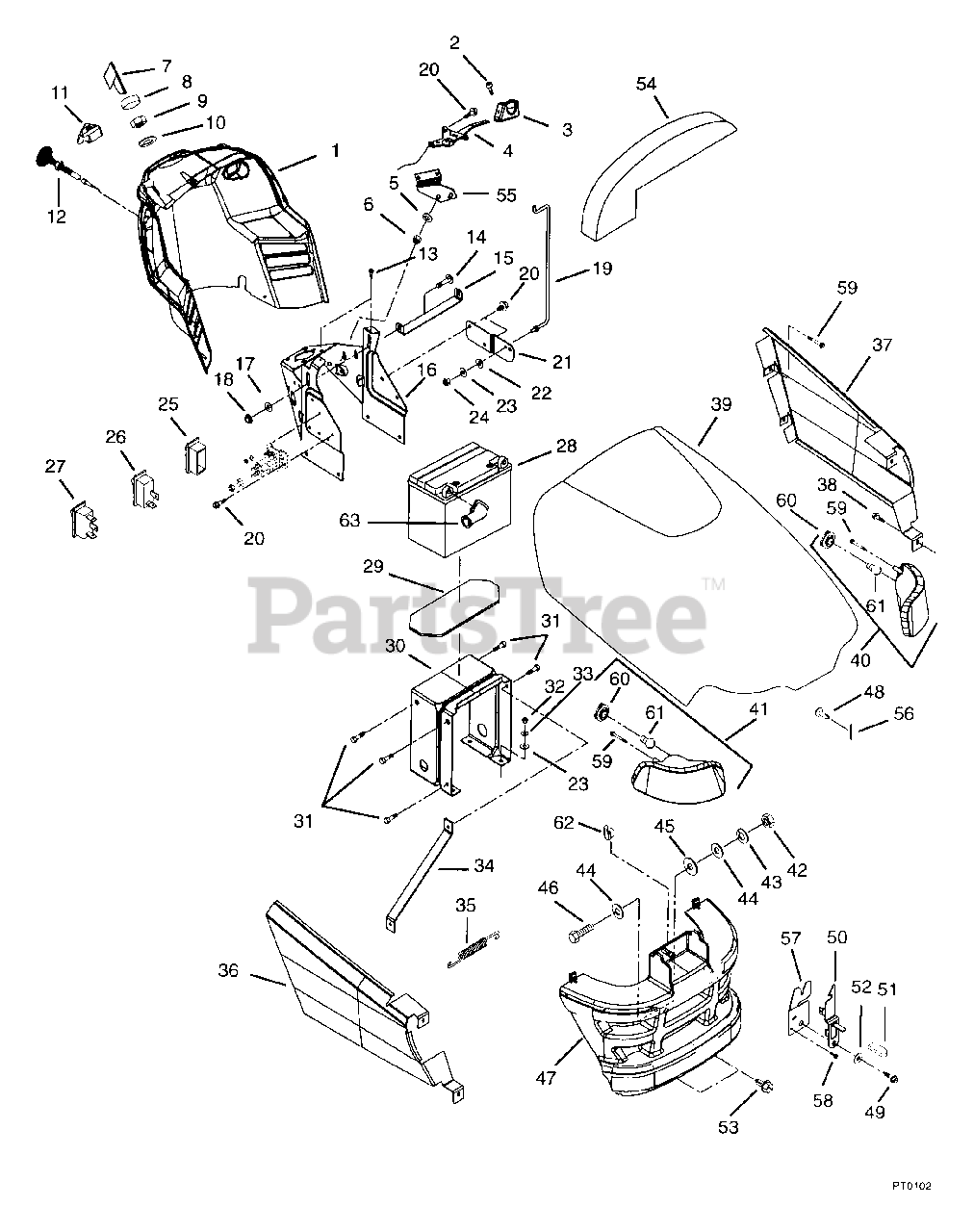

936018 (1540 H) - Ariens Sierra 40" Yard Tractor, 15hp Kohler, Hydro (SN: 001601 & Above) Hood, Dash & Battery Parts Diagram

Sierra 40" Yard Tractor, 15hp Kohler, Hydro

Hood, Dash & Battery Parts Diagram

  • Title

1

Ariens 03652900

DASH
(Superseded to 03679300)

$

$

Not available

2

Ariens 06004600

SCR-SET 10-24X.38 UNC-3A

$3.99

$

Usually ships in 4-12 days

0

3

Ariens 03653200

KNOB - THROTTLE
(Superseded to 03653259)

$

$

Not available

4

Ariens 06938800

THROTTLE CONTROL- TEC/B&S

Note: (Not 018)

$

$

Not available

4

Ariens 06932100

THROTTLE CONTROL- 15 KOHLER

Note: (018)

$68.99

$

Usually ships in 4-12 days

0

4

Ariens 06931300

THROTTLE CONTROL-B&S
(Superseded to 06940700)

Note: (936021,309)

$45.99

$

Usually ships in 4-12 days

0

4

Ariens 06940700

CABLE, THROTTLE

Note: (021 - B & S)

$45.99

$

Usually ships in 4-12 days

0

5

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

6

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

8

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

9

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

10

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

11

Ariens 53603800

PTO KNOB/ SWITCH ASSY
(Superseded to 00355900)

$82.99

$

Usually ships in 4-12 days

0

12

Ariens 06918300

CHOKE CABLE

Note: (021, 307, 309)

$

$

Not available

13

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

14

Ariens 06202600

BLT-RDHDSQNK .312-18X.62 PL
(Superseded to 06215700)

$2.49

$

In Stock, Qty 20+

0

15

Ariens 03651400

HOLDDOWN - BATTERY

$34.99

$

Usually ships in 4-12 days

0

16

Ariens 03357600

SUPPORT - DASH - TOP

$

$

Not available

17

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

$1.49

$

In Stock, only 2 left!

0

18

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

19

Ariens 03656600

ROD - HOOD PROP

$

$

Not available

20

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

Note: (014, 015, 305, 308)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

Note: (Not 014, 015, 305, 308)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03656700

MOUNT - PROP ROD

$

$

Not available

22

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

23

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

24

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 03657000

COVER - SWITCH
(Superseded to 00539300)

Note: (014, 015, 305, 308)

$9.99

$

Usually ships in 4-12 days

0

26

Ariens 03656800

SWITCH - LIGHT

$

$

Not available

27

Ariens 03656900

SWITCH - CRUISE

Note: (Not 014, 015, 305, 308)

$22.99

$

Usually ships in 4-12 days

0

28

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

29

Ariens 02530700

RUBBER PAD

$

$

Not available

30

Ariens 03651200

SUPPORT DASH BASE

$

$

Not available

31

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

33

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

34

Ariens 03651300

BRACE

$

$

Not available

35

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

36

Ariens 03655100

SIDE PANEL- RH
(Superseded to 03673351)

$56.99

$

Usually ships in 4-12 days

0

37

Ariens 03655200

SIDE PANEL- LH
(Superseded to 03673451)

$62.99

$

Usually ships in 4-12 days

0

38

Ariens 07412500

SCR-TAP 12-16X.500 HI-LOTPHBL

$

$

Not available

39

Ariens 53605800

HOOD WITH DECALS
(Superseded to 53606500)

$

$

Not available

40

Ariens 03647300

HEADLIGHT- LH

$

$

Not available

41

Ariens 03647200

HEADLIGHT- RH

$

$

Not available

42

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

43

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

44

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

45

Ariens 06435500

WSHR-FL-NYL .390X1.000X.062

$2.49

$

Usually ships in 4-12 days

0

46

Ariens 05918100

BLT-HEX .31-18X1.00 PL GR5
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

47

Ariens 03665800

GRILLE
(Superseded to 03679200)

$

$

Not available

48

Ariens 00283500

PIN, CLEVIS .243/.248X1.50 YWZ

$3.49

$

Usually ships in 4-12 days

0

49

Ariens 07413300

SCR-TAP 12-24X.50 HWH TR BLACK
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

50

Ariens 03655000

HOOD LATCH

$

$

Not available

51

Ariens 07526700

GRIP .062 X .375 X 1.000 RE

$

$

Not available

52

Ariens 06440600

WSHR-FL-STL .281X1.250X.048 BL
(Superseded to 06403700)

$

$

Not available

53

Ariens 07413400

SCR-TAP .312-18X.50 HWH TR BL

$

$

Not available

54

Ariens 03657700

BAFFLE- HOOD

Note: (014, 016, 018, 020)

$

$

Not available

55

Ariens 03358200

BRACE-THROTTLE CONTROL

$

$

Not available

56

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

57

Ariens 03665900

LOCATOR- HOOD

$

$

Not available

58

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

59

Ariens 07411200

SCR-TAP 10-12X.62 CRPH PL A

$

$

Not available

60

Ariens 03617500

LAMP SOCKET

$

$

Not available

61

Ariens 03420500

HEADLIGHT BULB, 1156

$30.99

$

In Stock, only 1 left!

0

62

Ariens 07008400

CLIP-HARNESS TINNERMAN

$

$

Not available

63

Ariens 07505700

INSULATOR

$9.49

$

Usually ships in 4-12 days

0
