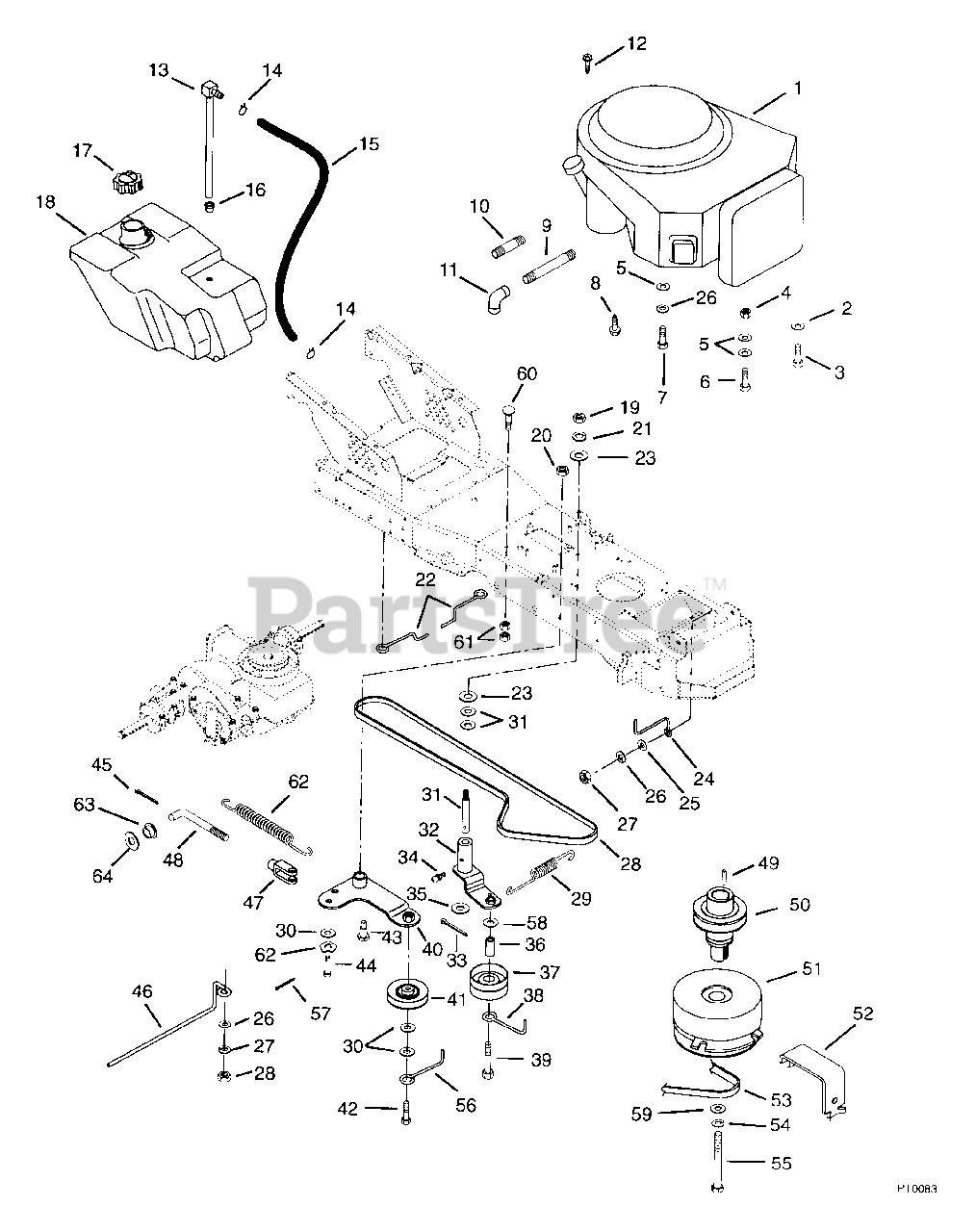

936015 (1440 G) - Ariens Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Gear (SN: 000601 & Above) Engine, Fuel Tank & Belt Drive Parts Diagram

Sierra 40" Yard Tractor, 14hp Briggs & Stratton, Gear

Engine, Fuel Tank & Belt Drive Parts Diagram

  • Title

1

Ariens 08241500

ENGINE- 16.0 B&S VANGUARD TWIN

Note: (021, 307, 309)

$

$

Not available

1

Ariens 08248300

ENGINE- 13.0 TEC OHV ENDURO

Note: (014, 016)

$

$

Not available

1

Ariens 08245100

ENGINE- 16.0 TEC OHV

Note: (020)

$

$

Not available

1

Ariens 08243000

ENGINE- 14.0 B&S VANGUARD SING

Note: (015, 017, 305, 306, 308)

$

$

Not available

1

Ariens 08244700

ENGINE- 16.0 B&S VANGUARD SING

Note: (019)

$

$

Not available

1

Ariens 08245200

ENG- 15.0 KOHLER OHV PS-41531

Note: (018)

$

$

Not available

2

Ariens 06303000

WSHR-LK-EXT .375X.050

Note: (015, 017, 019, 305, 306, 308)

$

$

Not available

2

Ariens 06303000

WSHR-LK-EXT .375X.050

Note: (020)

$

$

Not available

3

Ariens 07408800

SCR-TAP .375-16X1.25 HWH PL TR
(Superseded to 07414700)

Note: (015, 017, 019, 305, 306, 308)

$2.99

$

In Stock, only 3 left!

0

3

Ariens 07408800

SCR-TAP .375-16X1.25 HWH PL TR
(Superseded to 07414700)

Note: (020)

$2.99

$

In Stock, only 3 left!

0

4

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

Note: (014, 016, 021, 307, 309)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

Note: (020)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (014, 016, 021, 307, 309)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (020)

$3.99

$

Usually ships in 4-12 days

0

5

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (018)

$3.99

$

Usually ships in 4-12 days

0

6

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (014, 015, 021, 307, 309)

$1.49

$

In Stock, Qty 13

0

6

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (020)

$1.49

$

In Stock, Qty 13

0

7

Ariens 05931300

BLT-HEX M8 X 1.25X25 PL GR5
(Superseded to 05964900)

Note: (018)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 07403000

SCR-TAP .375-16X1.0 HWH PL TR
(Superseded to 07417500)

Note: (020)

$3.99

$

In Stock, only 2 left!

0

9

Ariens 03475800

NIPPLE
(Superseded to 07000830)

Note: (020, 021, 307, 309)

$17.99

$

Usually ships in 4-12 days

0

10

Ariens 02749600

NIPPLE

Note: (Not 020, 021, 307, 309)

$9.49

$

Usually ships in 4-12 days

0

11

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

12

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

13

Ariens 03606500

TANK FITTING

$

$

Not available

14

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

15

Ariens 03659300

HOSE- FUEL LINE 36.00"

Note: (014, 015, 016, 017, 019, 020, 305, 306, 308)

$

$

Not available

15

Ariens 03659400

HOSE- FUEL LINE 48.00"

Note: (021, 307, 309)

$13.99

$

Usually ships in 4-12 days

0

15

Ariens 03659500

HOSE- FUEL LINE 50.00"

Note: (018)

$

$

Not available

16

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

17

Ariens 03601900

FUEL CAP
(Superseded to 01538400)

$15.99

$

Usually ships in 4-12 days

0

18

Ariens 03627500

FUEL TANK

$

$

Not available

19

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

20

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 03622600

BELT FINGER

$64.99

$

Usually ships in 4-12 days

0

23

Ariens 06400800

WSHR-FL-STL .438X1.0X.083 PL
(Superseded to 06435900)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03622400

BELT FINGER

$43.99

$

Usually ships in 4-12 days

0

25

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (Not 018)

$0.99

$

In Stock, Qty 20+

0

26

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (018)

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06506100

NUT-JAM .312-18 PL
(Superseded to 06536100)

$0.99

$

In Stock, Qty 20+

0

28

Ariens 07229500

V-BELT, 4L-WRAPPED

Note: (014, 015, 305, 308)

$52.99

$

In Stock, only 2 left!

0

28

Ariens 07229700

V-BELT, 4L-WRAPPED

Note: (Not 014, 015, 305, 308)

$60.99

$

In Stock, only 1 left!

0

29

Ariens 08333300

SPRING, EXT
(Superseded to 08300512)

$17.99

$

In Stock, Qty 20+

0

30

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

32

Ariens 03646100

ARM - IDLER PIVOT

$93.99

$

Usually ships in 4-12 days

0

31

Ariens 03622900

SHOULDER STUD

$34.99

$

In Stock, only 2 left!

0

33

Ariens 06700600

PIN-COTR .18X1.25 PL
(Superseded to 06712700)

$1.99

$

In Stock, only 3 left!

0

34

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

35

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

36

Ariens 03638400

TUBE .380 X .625 X 1.620

$24.99

$

Usually ships in 4-12 days

0

37

Ariens 07308800

IDLER-FLAT 3.25 X .38 NWHAMSHR

$39.99

$

In Stock, Qty 8

0

38

Ariens 03648300

FINGER - BELT

$21.99

$

In Stock, only 1 left!

0

39

Ariens 05920800

BLT-HEX .38-16X3.50 PL GR5
(Superseded to 05960900)

Note: (Not 021, 309)

$3.99

$

In Stock, Qty 20+

0

39

Ariens 05938900

BLT-HEX .38-16X3.75 PL GR5
(Superseded to 05959500)

Note: (021, 309)

$3.49

$

Usually ships in 4-12 days

0

40

Ariens 03631200

IDLER PIVOT ARM

$61.99

$

Usually ships in 4-12 days

0

41

Ariens 07309200

IDLER-V 3X.38

$37.99

$

In Stock, only 2 left!

0

42

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

44

Ariens 06811800

PIN-CLEV .312X.822 HDND PL
(Superseded to 06814000)

$3.99

$

In Stock, only 1 left!

0

45

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

46

Ariens 03654600

FINGER - BELT

$77.99

$

Usually ships in 4-12 days

0

47

Ariens 07014700

YOKE, .312-24 X 2.25

$14.99

$

In Stock, only 1 left!

0

48

Ariens 03647800

LINK

$

$

Not available

49

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

50

Ariens 03636500

SHEAVE EXTENSION SHAFT-GEAR

Note: (014, 015, 305, 308)

$

$

Not available

50

Ariens 03636400

SHEAVE EXTENSION SHAFT- HYDRO

Note: (Not 014, 015, 305, 308)

$

$

Not available

51

Ariens 03643100

ELECTRIC CLUTCH/BRAKE (3.4AMP)

Note: (018, 019, 020, 307)

$296.99

$

Usually ships in 4-12 days

0

51

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

Note: (Not 018, 019, 020, 307)

$258.99

$

In Stock, only 1 left!

0

51

Ariens 03357900

CLUTCH, ELECTRIC - WARNER

Note: (021, 309)

$491.99

$

In Stock, only 1 left!

0

52

Ariens 03656400

ANCHOR - CLUTCH

$25.99

$

Usually ships in 4-12 days

0

52

Ariens 03666500

ANCHOR - CLUTCH

Note: (021, 309)

$94.99

$

Usually ships in 4-12 days

0

53

Ariens 07229600

V-BELT, 4L-RAW EDGE

$51.99

$

In Stock, only 2 left!

0

54

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

55

Ariens 05926200

SCR-CAP .44-20X4.00 GR5 HHPL
(Superseded to 05966800)

Note: (Not 021, 309)

$6.99

$

Usually ships in 4-12 days

0

55

Ariens 05966700

BLT-HEX .44-20X4.50 GR8 YWZC
(Superseded to 05901821)

Note: (021, 309)

$6.99

$

In Stock, Qty 7

0

56

Ariens 03638300

FINGER - BELT

$51.99

$

Usually ships in 4-12 days

0

57

Ariens 06702000

PIN-HAIR INT .08X.18X1.18
(Superseded to 06713500)

$0.99

$

In Stock, Qty 20+

0

58

Ariens 06406700

WSHR-FL-STL .390X.875X.18 PL
(Superseded to 06436800)

Note: (021, 309)

$3.99

$

Usually ships in 4-12 days

0

59

Ariens 06423200

WSHR-FL-STL .463X1.375X.250 PL
(Superseded to 06443500)

Note: (021, 309)

$6.99

$

Usually ships in 4-12 days

0

60

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

61

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

62

Ariens 08333200

SG-TENS .105X.85X5.00 WLD 40

$14.99

$

In Stock, only 1 left!

0

63

Ariens 05517500

BSHG-FLG .320X.620X.312 NY

$18.99

$

Usually ships in 4-12 days

0

64

Ariens 06436600

WSHR-FL-STL .505X.880X.072 YWZ
(Superseded to 06401126)

$3.99

$

Usually ships in 4-12 days

0

65

Ariens 00325400

WAVE WASHER .531X.781X.125FH

$0.99

$

In Stock, Qty 20+
