936013 (YT 16.5 H) - Ariens 40" Yard Tractor, 16.5hp Tecumseh, Hydro (SN: 000101 & Above) Clutch & Brake - Hydro Parts Diagram

40" Yard Tractor, 16.5hp Tecumseh, Hydro

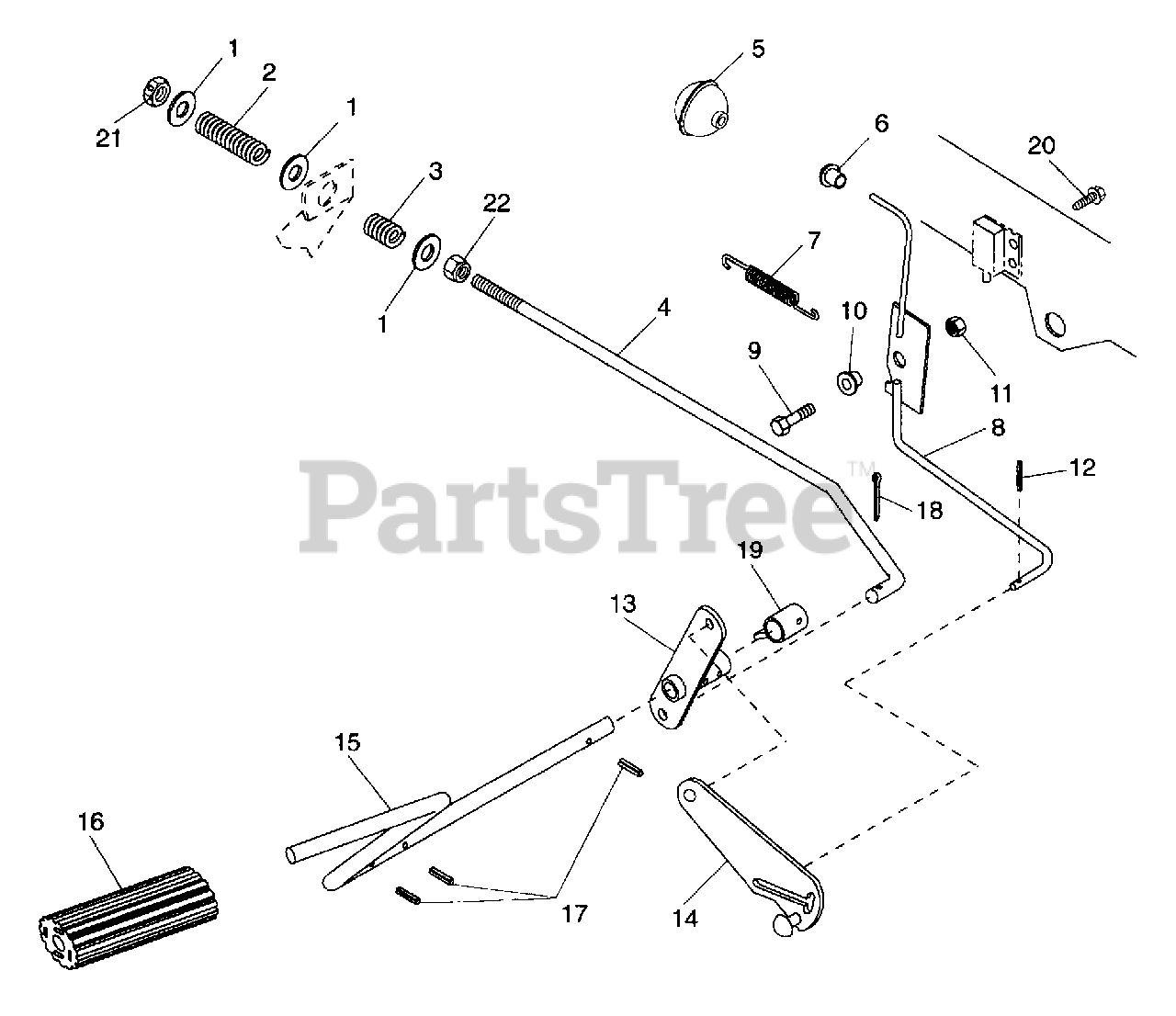

Clutch & Brake - Hydro Parts Diagram

  • Title

1

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

2

Ariens 08310400

SG-COMP .048X.59X2.06 WLD9

$14.99

$

Usually ships in 4-12 days

0

3

Ariens 08327000

SG-COMP .125X.78X1.00 YWZ

$15.99

$

In Stock, only 2 left!

0

4

Ariens 03639800

BRAKE ROD- HYDRO

$

$

Not available

5

Ariens 07512400

PUSH/PULL CONTROL KNOB

$9.99

$

Usually ships in 4-12 days

0

6

Ariens 07505000

SNAP BUSHING-.437

$

$

Not available

7

Ariens 08326600

SG-TENS .051X.44X4.38 WLD 7.5

$

$

Not available

8

Ariens 03637300

LEVER, PARKING BRAKE

$

$

Not available

9

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

10

Ariens 01305900

BSHG, FLG .325X.499X.26X.88

$2.49

$

In Stock, only 1 left!

0

11

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

12

Ariens 05801000

PIN-ROLL .093X.50

$0.99

$

In Stock, Qty 10

0

13

Ariens 03637700

ARM & HUB - HYDRO

$

$

Not available

14

Ariens 03637400

PLATE, PIVOT

$

$

Not available

15

Ariens 03637800

PEDAL

$

$

Not available

16

Ariens 07521200

COVER- PEDAL

$

$

Not available

17

Ariens 05804500

PIN-GRV .188X1.25 TP A

$10.99

$

In Stock, only 4 left!

0

18

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 8

0

19

Ariens 03640000

LEVER - BRAKE SWITCH

$

$

Not available

20

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

21

Ariens 06506000

NUT-LK-JAM-CTR .375-16 PL
(Superseded to 06537200)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0
