936012 (YT 15 H) - Ariens 40" Yard Tractor, 15hp Tecumseh, Hydro (SN: 000101 - 001799) Electrical Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Hydro

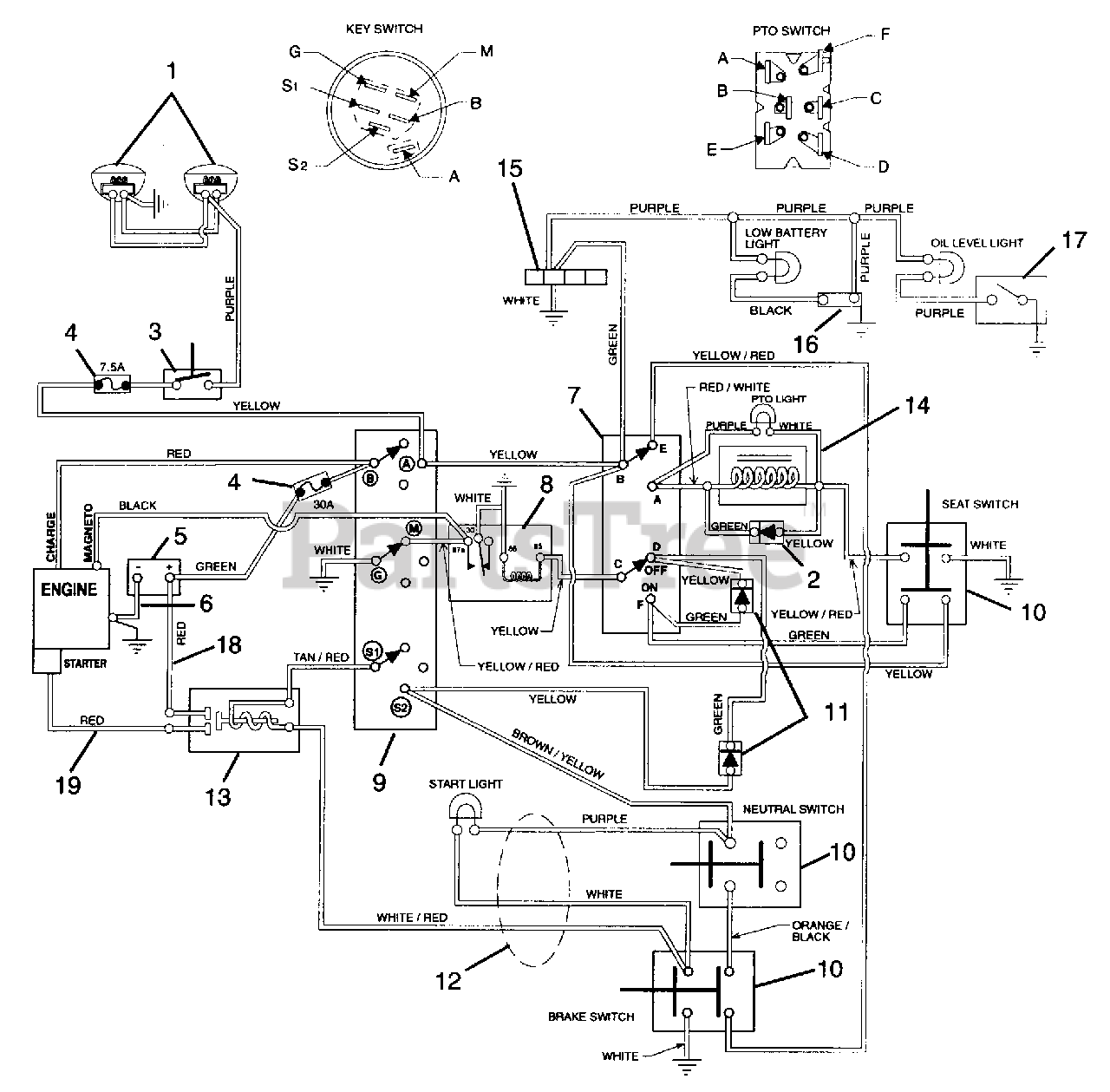

Electrical Parts Diagram

  • Title

1

Ariens 03602000

HEADLIGHT- L.H.

$

$

Not available

1

Ariens 03602100

HEADLIGHT- R.H.

$

$

Not available

2

Ariens 02745200

DIODE & HOUSING

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 03603700

LIGHT SWITCH

$

$

Not available

4

7.5 Amp Fuse

$

$

Not available

4

30 Amp Fuse

$

$

Not available

5

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

6

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

7

Ariens 03602400

SWITCH ASSEMBLY- PTO

$

$

Not available

8

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

9

Ariens 03602300

KEY SWITCH

$26.99

$

In Stock, only 1 left!

0

10

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

11

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0

12

Ariens 03633900

WIRE HARNESS- YT15H/165H
(Superseded to 03645800)

$487.99

$

Usually ships in 4-12 days

0

13

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

14

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$258.99

$

In Stock, only 1 left!

0

15

Ariens 03609000

HOUR METER W/ LEADS

Note: (Optional)

$

$

Not available

16

Ariens 03614500

VOLTAGE SENSOR
(Superseded to 03653300)

$62.99

$

Usually ships in 4-12 days

0

17

Ariens 03617000

OIL SENSOR- FASCO #0454-0513

$

$

Not available

18

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

19

Ariens 00145900

STARTER CABLE 6.75"

$13.99

$

In Stock, only 1 left!

0
