936012 (YT 15 H) - Ariens 40" Yard Tractor, 15hp Tecumseh, Hydro (SN: 000101 - 001799) Dethatcher (Accessory 736004) Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Hydro

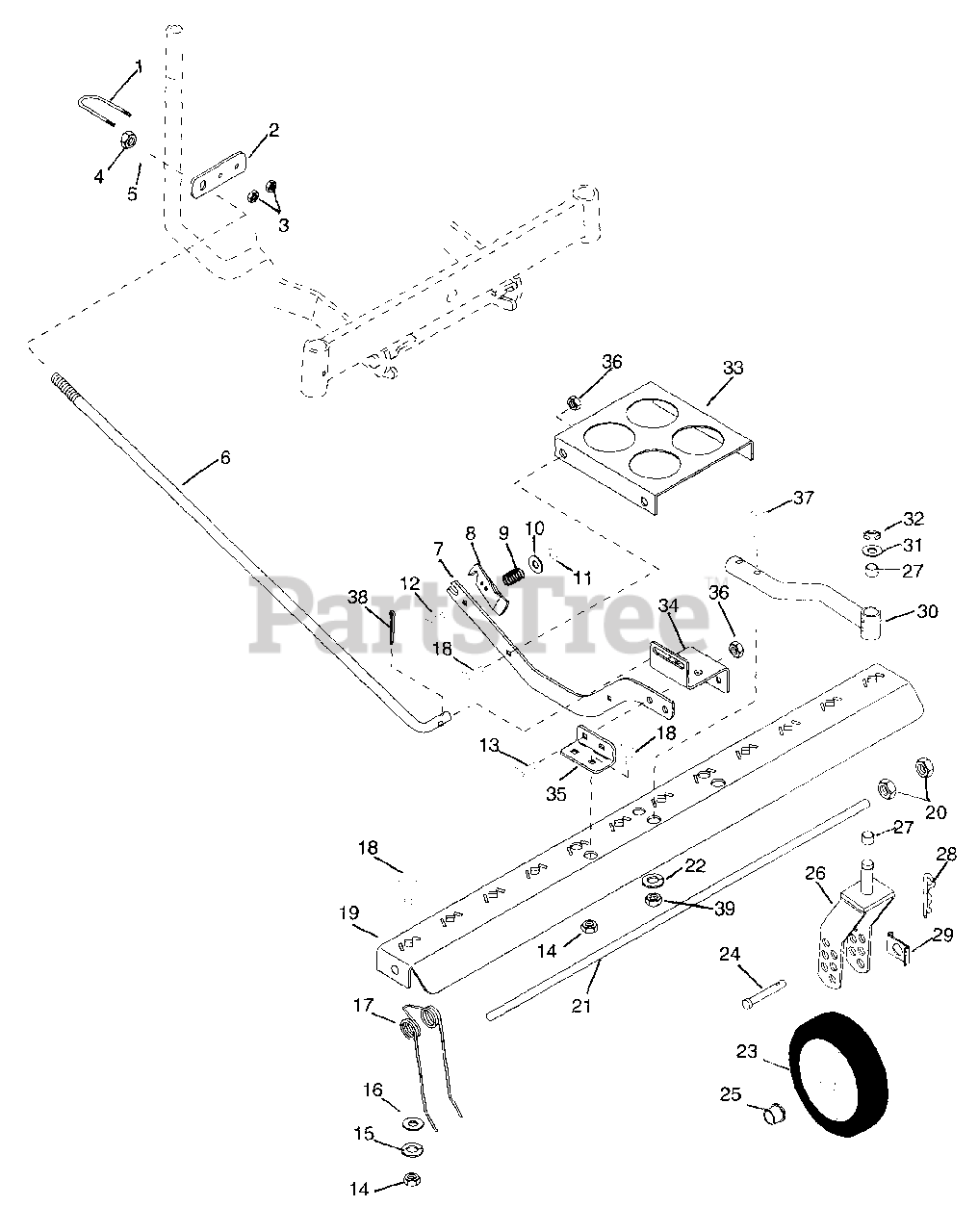

Dethatcher (Accessory 736004) Parts Diagram

  • Title

1

Ariens 00213700

U BOLT

$

$

Not available

2

Ariens 03618400

LIFT HANDLE BRACKET

$

$

Not available

3

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

4

Ariens 06513500

NUT-LK-NYL .375-16 PL
(Superseded to 06535800)

$2.49

$

In Stock, only 3 left!

0

5

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

6

Ariens 03618700

LIFT ROD

$

$

Not available

7

Ariens 03618200

LIFT ARM

$

$

Not available

8

Ariens 01135700

AXLE LOCK

$31.99

$

Usually ships in 4-12 days

0

9

Ariens 08321700

SG-COMP .058X.68X.75

$9.49

$

Usually ships in 4-12 days

0

10

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0

11

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06206000

BLT-RDHDSQNK .25-20X1.50 PL BL

$1.49

$

Usually ships in 4-12 days

0

13

Ariens 06209200

BLT-RDHDSQNK .31-18X.88 SHTPL

$

$

Not available

14

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

15

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

16

Ariens 06421400

WSHR-FL-STL .328X1.0X.094 PL
(Superseded to 06437500)

$3.99

$

In Stock, only 3 left!

0

17

Ariens 01136100

SPRING

$22.99

$

In Stock, only 1 left!

0

18

Ariens 06203400

BLT-RDHDSQNK .31-18X.75 SHT PL
(Superseded to 06214100)

$2.49

$

In Stock, Qty 20+

0

19

Ariens 03619000

CHANNEL

$

$

Not available

20

Ariens 06505600

NUT-LK-FLG .250-20 PL
(Superseded to 06530100)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 03618800

ROD

$

$

Not available

22

Ariens 06300400

WSHR-LK .375X.115 HVY PL
(Superseded to 06306500)

$3.49

$

In Stock, only 1 left!

0

23

Ariens 07120100

WHEEL
(Superseded to 51116000)

$67.99

$

In Stock, only 1 left!

0

24

Ariens 01168300

PIN-CLEV .494X2.62 YWZC

$9.49

$

In Stock, only 2 left!

0

25

Ariens 05502100

BSHG-FLG .500X.625X.500X.750

$3.99

$

In Stock, Qty 20+

0

26

Ariens 01167800

WHEEL YOKE WELDMENT
(Superseded to 01167859)

$136.99

$

Usually ships in 4-12 days

0

27

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

28

Ariens 06702200

PIN-HAIR INT .14X.4X2.75
(Superseded to 06714000)

$2.99

$

In Stock, Qty 6

0

29

Ariens 01168100

AXLE TAB

$16.99

$

In Stock, only 2 left!

0

30

Ariens 03051500

WHEEL BRACKET WELDMENT
(Superseded to 03051551)

$

$

Not available

31

Ariens 06405600

WSHR-FL-STL .505X.880X.072 PL
(Superseded to 06436600)

$3.99

$

Usually ships in 4-12 days

0

32

Ariens 05705900

RG-RTNG-EXT .438X.035

$0.99

$

In Stock, Qty 14

0

33

Ariens 03618500

BRACE

$

$

Not available

34

Ariens 03618600

LIFT BRACKET

$

$

Not available

35

Ariens 03618300

LIFT BRACKET

$

$

Not available

36

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

37

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

38

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

$0.99

$

In Stock, Qty 5

0

39

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0
