936010 (YT 13 H) - Ariens 40" Yard Tractor, 13hp Tecumseh, Hydro (SN: 001400 & Above) Rear Wheel & Hydro Drive Parts Diagram

40" Yard Tractor, 13hp Tecumseh, Hydro

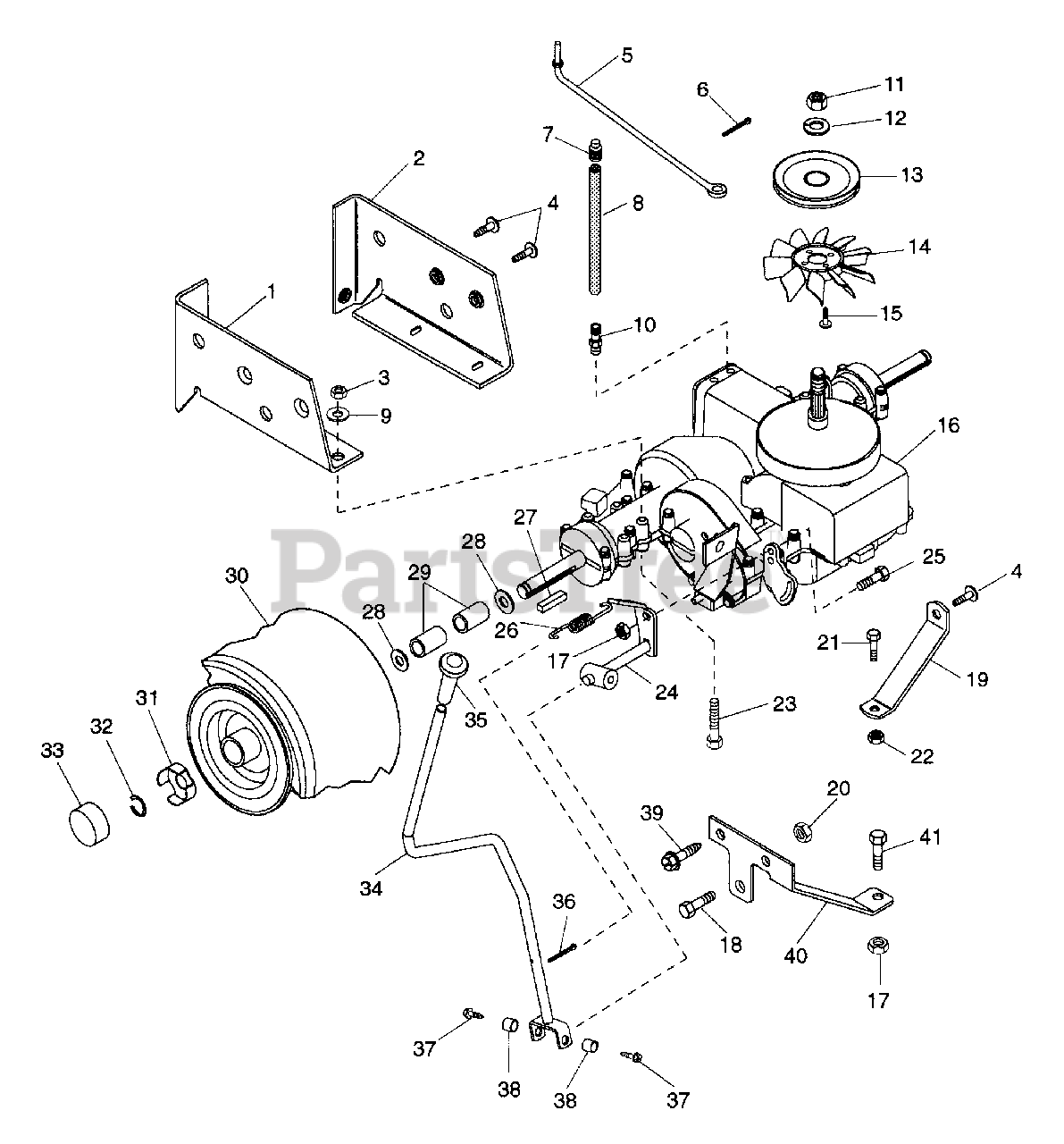

Rear Wheel & Hydro Drive Parts Diagram

  • Title

1

Ariens 03617700

MOUNT- TRANS. RH

$

$

Not available

2

Ariens 03620100

MOUNT- TRANS. LH

$

$

Not available

3

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 07402200

SCR-TAP .375-16X.75 HWH PL TR
(Superseded to 07415400)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 03630900

ROD- TRANSMISSION DISCONNECT

$

$

Not available

6

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

7

Ariens 07026400

CAP-VENT .50

$14.99

$

In Stock, only 2 left!

0

8

Ariens 03635100

HOSE- VENT .50ID X 7.50LONG

$

$

Not available

9

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

$3.99

$

Usually ships in 4-12 days

0

10

Ariens 07026300

FTG-STR .50 O-RING

$23.99

$

In Stock, only 2 left!

0

11

Ariens 06504400

NUT-JAM .50-20 PL
(Superseded to 06539500)

$2.49

$

Usually ships in 4-12 days

0

12

Ariens 06305100

WSHR-LK .50 REG.
(Superseded to 06307300)

$1.49

$

In Stock, Qty 17

0

13

Ariens 07321400

SHEAVE - TRANSAXLE
(Superseded to 01569100)

$56.99

$

In Stock, only 1 left!

0

14

Ariens 03570000

FAN

$35.99

$

Usually ships in 4-12 days

0

15

Ariens 07410800

SCR-TAP 10-32X.62 HWH PL T

$

$

Not available

16

Ariens 03627300

TRANSAXLE- HYDRO #312-0750 IHT

$

$

Not available

17

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

18

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03645300

TORQUE STRAP- LH

$20.99

$

In Stock, only 2 left!

0

20

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

21

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

$1.49

$

In Stock, Qty 13

0

22

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

23

Ariens 05916300

BLT-HEX .31-18X2.50 PL GR5
(Superseded to 05952600)

$1.49

$

In Stock, Qty 20+

0

24

Ariens 03644100

ARM - SHIFT

$

$

Not available

25

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

26

Ariens 08309900

SG-TENS .092X.69X1.75 WLD 54

$

$

Not available

27

Ariens 06601900

KEY-SQ .188X2.0X.188 SAE 8630

$

$

Not available

28

Ariens 06404800

WSHR-FL-STL .755X1.375X.062 PL
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

29

Ariens 05510400

BSHG-SLV .750X1.125X1.062

$

$

Not available

30

Ariens 07126900

T/WHL ASSY 20X8.00-8

$

$

Not available

30

Ariens 07133100

RIM
(Superseded to 07153600)

$

$

Not available

30

Ariens 07133200

TIRE 20X10-8 2P TS TL

$102.99

$

Usually ships in 4-12 days

0

31

Ariens 03516900

SPINDLE CUP

$19.99

$

In Stock, only 1 left!

0

32

Ariens 05707400

RG-RTNG-EXT .750X.050

$2.49

$

In Stock, only 1 left!

0

33

Ariens 00337700

HUB CAP

$2.99

$

In Stock, Qty 20+

0

34

Ariens 03644000

LEVER - SHIFT

$

$

Not available

35

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

36

Ariens 06700400

PIN-COTR .12X1.0 PL
(Superseded to 06707100)

$0.99

$

In Stock, Qty 10

0

37

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 12

0

38

Ariens 00607100

SPACER BUSHING .5 X .32 X .21

$14.99

$

Usually ships in 4-12 days

0

39

Ariens 07401400

SCR-TAP .312-18X.50 HWH PL TR
(Superseded to 07411500)

$1.49

$

In Stock, Qty 20+

0

40

Ariens 03632000

TORQUE STRAP- RH

$

$

Not available

41

Ariens 05916900

BLT-HEX .31-18X2.25 PL GR5
(Superseded to 05963700)

$1.49

$

In Stock, Qty 20+

0
