936010 (YT 13 H) - Ariens 40" Yard Tractor, 13hp Tecumseh, Hydro (SN: 001400 & Above) Frame & Rear Deck Parts Diagram

40" Yard Tractor, 13hp Tecumseh, Hydro

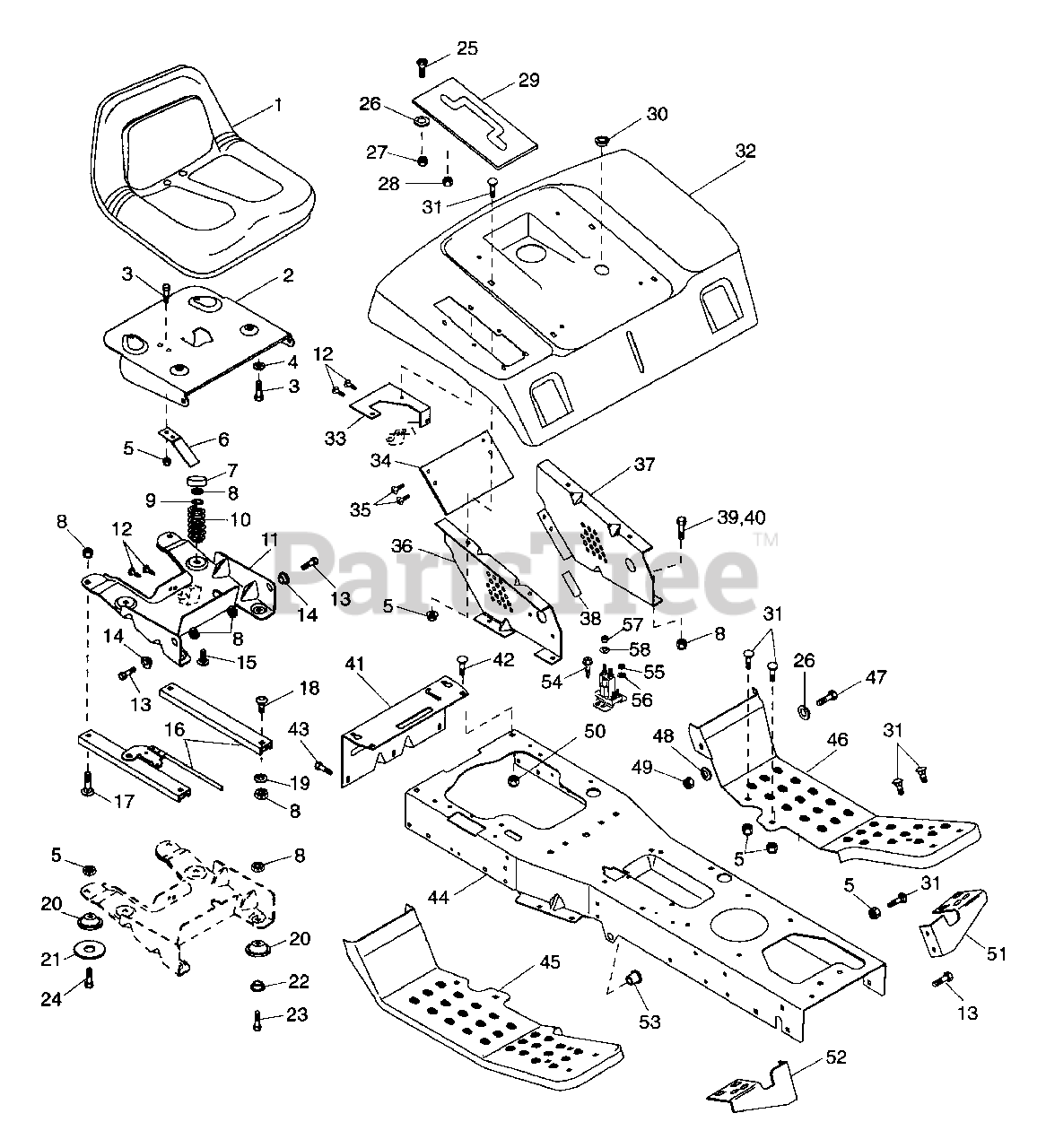

Frame & Rear Deck Parts Diagram

  • Title

1

Ariens 03606700

SEAT- V-560
(Superseded to 00366300)

Note: (Used Only On Model(s): 936012,013,304).

$

$

Not available

Ariens 03619200

SEAT- V450
(Superseded to 03655600)

Note: (Used Only On Model(s): 936006,009,010,301,302,303).

$

$

Not available

2

Ariens 03619100

SEAT PIVOT PLATE

$

$

Not available

3

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

4

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

6

Ariens 03616700

SPRING PLATE

$

$

Not available

7

Ariens 07521600

TUBE CAP

$1.49

$

In Stock, Qty 6

0

8

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 06412300

WSHR-FL-STL.344X.688X.065PL
(Superseded to 06437200)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 08328200

SG-COMP .148X1.23X2.41 WLD87

$15.99

$

In Stock, only 2 left!

0

11

Ariens 03618100

BOX, SEAT

$

$

Not available

12

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Used Only On Model(s): 010,012,013,303,304).

$2.49

$

In Stock, Qty 11

0

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

Note: (Used Only On Model(s): 006,009,301,302).

$2.49

$

In Stock, Qty 11

0

13

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

14

Ariens 05516200

BSHG-FLG .325X.465X.333X.685

$22.99

$

Usually ships in 4-12 days

0

15

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

16

Ariens 03600800

SEAT SLIDES -(RAME TAK-3010-4)

$104.99

$

Usually ships in 4-12 days

0

17

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

Note: (Used Only On Model(s): 009,010,012,013,303,304).

$1.49

$

In Stock, Qty 20+

0

18

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

Note: (Used Only On Model(s): 009,010,012,013,303,304).

$

$

Not available

19

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (Used Only On Model(s): 009,010,012,013,303,304).

$3.99

$

Usually ships in 4-12 days

0

20

Ariens 03620300

SEAT SPACER

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

21

Ariens 06435100

WSHR-FL-STL .508X1.62X.105 PL

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

22

Ariens 05521800

BSHG-FLG .325X.500X.500X1.250

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

23

Ariens 05906900

BLT-HEX .31-18X1.25 PL GR2
(Superseded to 05947500)

Note: (Used Only On Model(s): 006,301,302).

$2.49

$

In Stock, Qty 12

0

24

Ariens 06201500

BLT-RDHDSQNK .31-18X1.00 PL
(Superseded to 06216100)

Note: (Used Only On Model(s): 006,301,302).

$1.49

$

In Stock, Qty 20+

0

25

Ariens 06107300

SCR-MCH .25-20X .75 CRFL PL
(Superseded to 21056400)

Note: (Used Only On Model(s): 010,012,013,303,304).

$

$

Not available

26

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (Used Only On Model(s): 010,012,013,303,304).

$0.99

$

In Stock, Qty 20+

0

27

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

Note: (Used Only On Model(s): 010,012,013,303,304).

$4.99

$

Usually ships in 4-12 days

0

28

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

Note: (Used Only On Model(s): 006,009,301,302).

$2.99

$

In Stock, only 1 left!

0

29

Ariens 03636900

INSERT- 5 SPEED PLASTIC

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

Ariens 03637000

INSERT- 6 SPEED PLASTIC

Note: (Used Only On Model(s): 009).

$

$

Not available

Ariens 53601600

SHIFT INSERT ASSY- HYDRO

Note: (Used Only On Model(s): 010,012,013,303,304).

$

$

Not available

30

Ariens 07521000

SNAP BUSHING

$3.49

$

Usually ships in 4-12 days

0

31

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03632100

REAR DECK- YT

Note: (Used Only On Model(s): 009,010,012,013,303,304).

$

$

Not available

Ariens 03618900

REAR DECK - LT

Note: (Used Only On Model(s): 006,301,302).

$

$

Not available

33

Ariens 03631900

SWITCH MOUNT

Note: (Used Only On Model(s): 010,012,303,304).

$

$

Not available

34

Ariens 03628300

BACK PLATE

Note: (Used Only On Model(s): 006,301).

$

$

Not available

35

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

Note: (Used Only On Model(s): 006,301).

$2.49

$

Usually ships in 4-12 days

0

36

Ariens 03625200

RIGHT DECK SUPPORT

$

$

Not available

37

Ariens 03625100

LEFT DECK SUPPORT

$

$

Not available

38

Ariens 03645700

PAD, FOAM

Note: (Used Only On Model(s): 009,010,012,013,302,303,304).

$26.99

$

Usually ships in 4-12 days

0

39

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

40

Ariens 05900300

BLT-HEX .31-18X1.00 PL GR 2
(Superseded to 05946900)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 03601600

DRAW BAR

$

$

Not available

42

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

43

Ariens 07401700

SCR-TAP .312-18X.75 HWH PL TR
(Superseded to 07414400)

$1.49

$

In Stock, Qty 11

0

44

Ariens 03637200

FRAME

$

$

Not available

45

Ariens 03623000

RIGHT FOOT REST

$

$

Not available

46

Ariens 03623100

LEFT FOOT REST

$

$

Not available

47

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

48

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

49

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

50

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

51

Ariens 03623300

LH FOOT REST BRACE

$

$

Not available

52

Ariens 03623200

RH FOOT REST BRACE

$5.99

$

Usually ships in 4-12 days

0

53

Ariens 05521100

BSHG-FLG .515X.750X.745X1.00NY

$2.49

$

In Stock, only 3 left!

0

54

Ariens 07401500

SCR-TAP .250-20X.37 HWH PL TR
(Superseded to 07411600)

$0.99

$

In Stock, Qty 20+

0

55

Ariens 05502600

BSHG-FLG .625X.750X.500X.875BR
(Superseded to 05500111)

$1.49

$

In Stock, Qty 20+

0

56

Ariens 06302600

WSHR-LK-EXT #10 ID X .022
(Superseded to 06310400)

$1.99

$

In Stock, only 1 left!

0

57

Ariens 06510000

NUT-JAM .312-24 PL
(Superseded to 06536700)

$0.99

$

In Stock, Qty 13

0

58

Ariens 06301800

WSHR-LK-INT .313X.030 PL
(Superseded to 06310500)

$0.99

$

In Stock, only 3 left!

0
