936009 (YT 13 G) - Ariens 40" Yard Tractor, 13hp Briggs & Stratton, Gear (SN: 001300 & Above) Electrical YT130G Parts Diagram

40" Yard Tractor, 13hp Briggs & Stratton, Gear

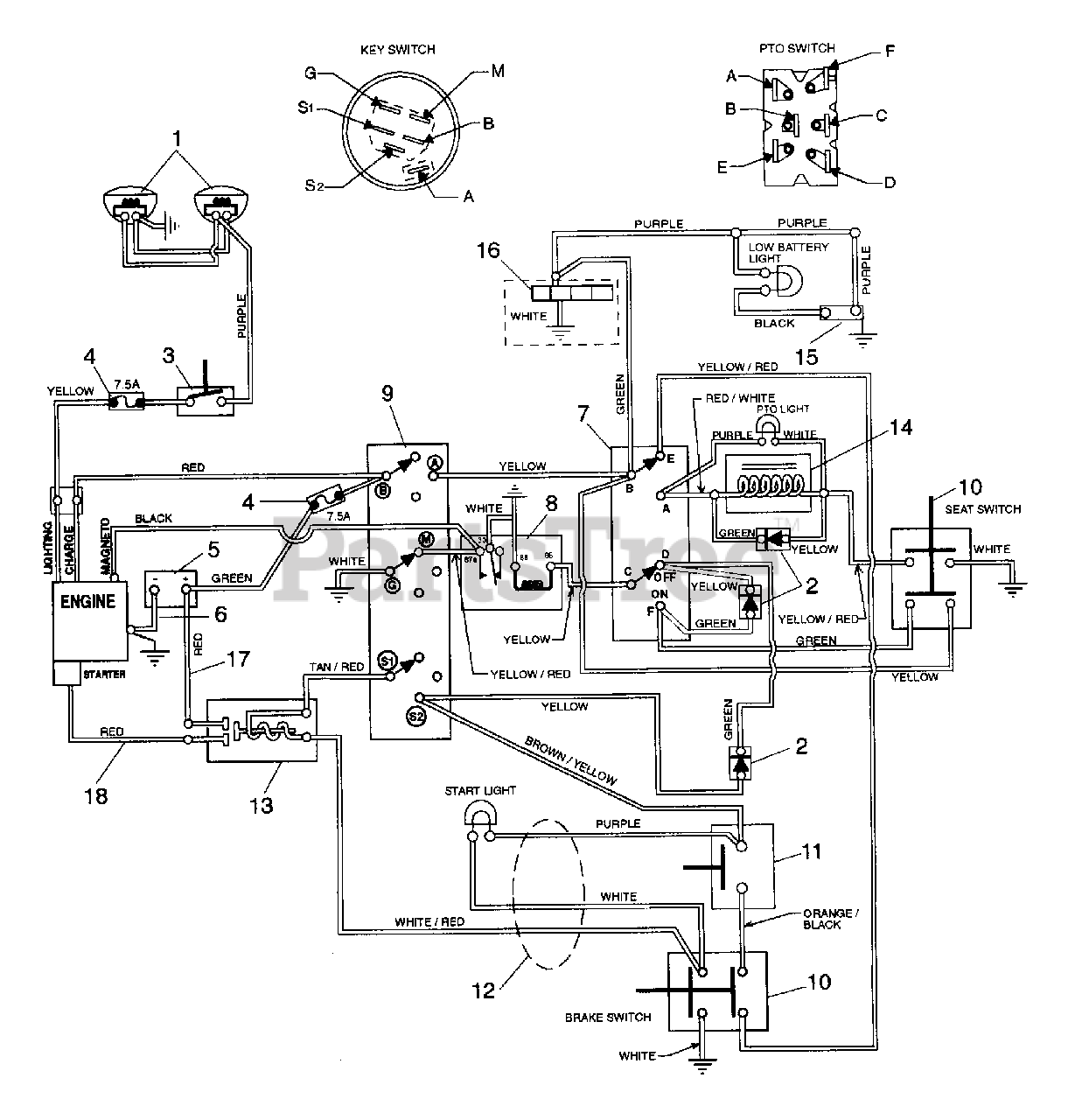

Electrical YT130G Parts Diagram

  • Title
1

Ariens 03602000

HEADLIGHT- L.H.

$

$

Not available

1

Ariens 03602100

HEADLIGHT- R.H.

$

$

Not available

2

Ariens 02745200

DIODE & HOUSING

$40.99

$

Usually ships in 4-12 days

0

3

Ariens 03603700

LIGHT SWITCH

$

$

Not available

4

7.5 Amp Fuse

$

$

Not available

5

Ariens 03634400

BATTERY W/TUBE
(Superseded to 03621100)

$

$

Not available

6

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

7

Ariens 03602400

SWITCH ASSEMBLY- PTO

$

$

Not available

8

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

9

Ariens 03602300

KEY SWITCH

$26.99

$

Usually ships in 4-12 days

0

10

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

11

Ariens 08803700

SWITCH, NEUTRAL START N.C.

$34.99

$

In Stock, only 1 left!

0

12

Ariens 03643300

WIRE HARNESS- YT130G

$

$

Not available

13

Ariens 03492300

SOLENOID
(Superseded to 03551000)

$34.99

$

In Stock, Qty 14

0

14

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$258.99

$

In Stock, only 1 left!

0

15

Ariens 03614500

VOLTAGE SENSOR
(Superseded to 03653300)

$62.99

$

Usually ships in 4-12 days

0

16

Ariens 73600600

HOURMETER

Note: (Optional)

$

$

Not available

17

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

18

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0
