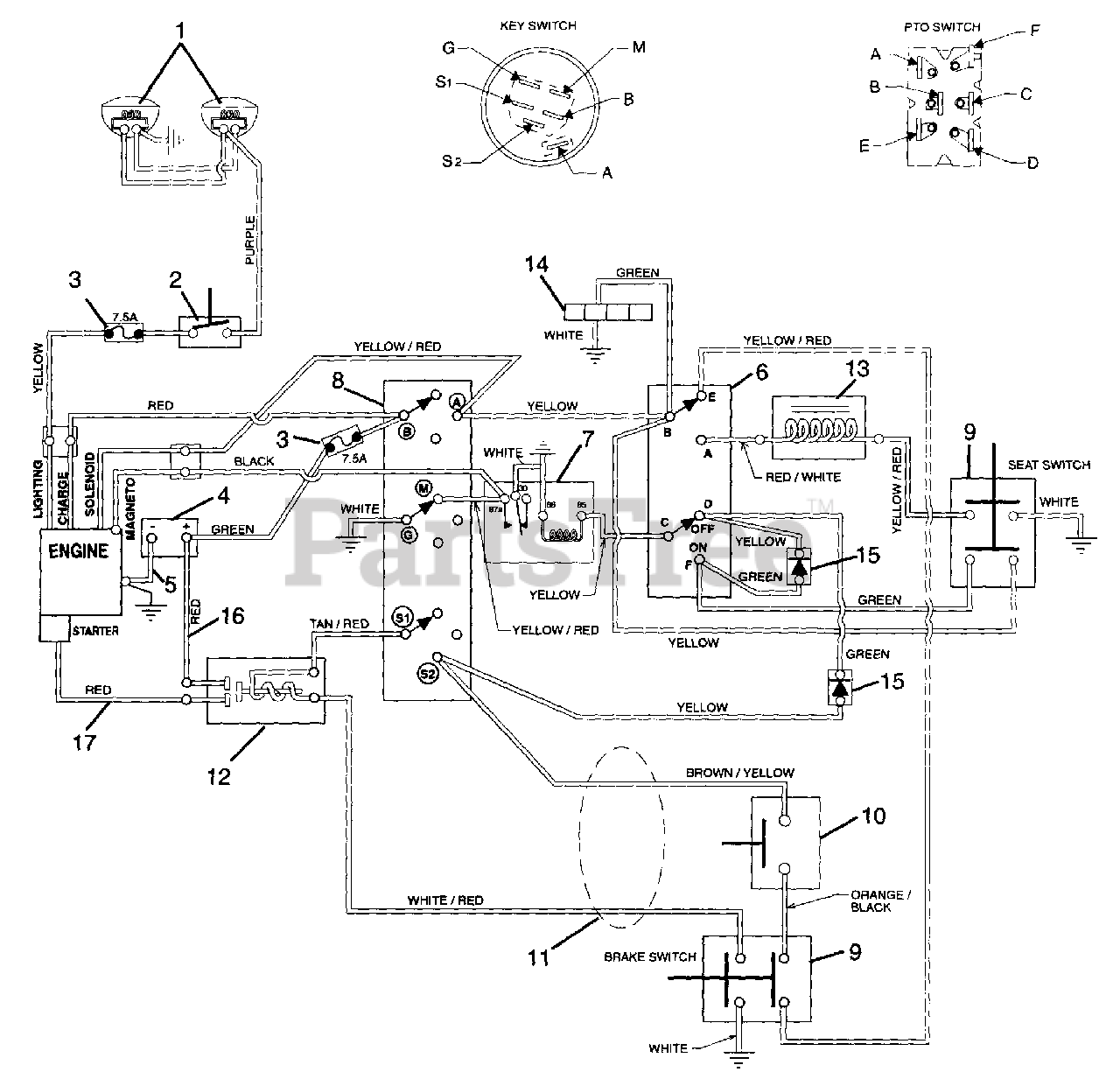

936006 (YT 12 G) - Ariens 40" Yard Tractor, 12hp Tecumseh, Gear (SN: 000101 - 001149) Electrical Parts Diagram

40" Yard Tractor, 12hp Tecumseh, Gear

Electrical Parts Diagram

  • Title

1

Ariens 03602000

HEADLIGHT- L.H.

$

$

Not available

Ariens 03602100

HEADLIGHT- R.H.

$

$

Not available

2

Ariens 03603700

LIGHT SWITCH

$

$

Not available

3

7.5 Amp Fuse

$

$

Not available

4

Ariens 03621100

BATTERY W/ TUBE

$

$

Not available

5

Ariens 03111100

GROUND CABLE .31X22.00X.31
(Superseded to 03111101)

$20.99

$

In Stock, only 1 left!

0

6

Ariens 03602400

SWITCH ASSEMBLY- PTO

$

$

Not available

7

Ariens 03042800

RELAY
(Superseded to 00432101)

$22.99

$

In Stock, Qty 20+

0

8

Ariens 03602300

KEY SWITCH

$26.99

$

Usually ships in 4-12 days

0

9

Ariens 03606600

SWITCH- DOUBLE POLE N.O./N.O.

$17.99

$

In Stock, only 1 left!

0

10

Ariens 02913100

SWITCH-NEUTRAL START N.O.

$45.99

$

In Stock, Qty 7

0

11

Ariens 03081700

MOLDED DIODE PLUG 1 AMP

$26.99

$

Usually ships in 4-12 days

0

12

Ariens 03621900

WIRE HARNESS- LT12

$

$

Not available

13

Ariens 03551000

SOLENOID

$34.99

$

In Stock, Qty 14

0

14

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

$258.99

$

In Stock, only 1 left!

0

15

Ariens 03609000

HOUR METER W/ LEADS

Note: (Optional)

$

$

Not available

16

Ariens 02743300

START CABLE 22"
(Superseded to 03287200)

$17.99

$

In Stock, only 2 left!

0

17

Ariens 02727200

STARTER CABLE 13"
(Superseded to 02727201)

$20.99

$

In Stock, Qty 9

0
