936005 (YT 15 G) - Ariens 40" Yard Tractor, 15hp Tecumseh, Gear (SN: 000101 & Above) ROTARY MOWER 40" Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Gear

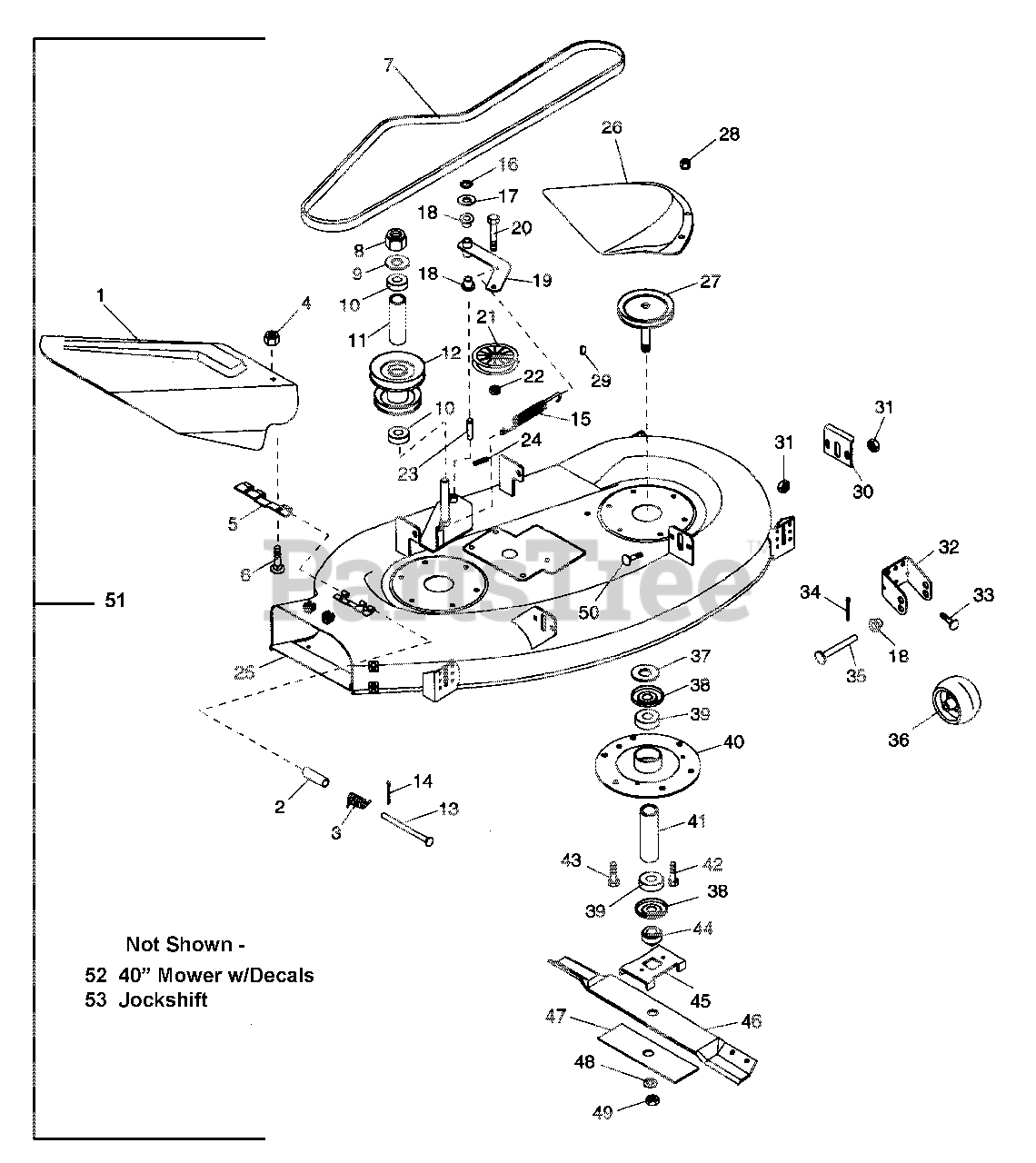

ROTARY MOWER 40" Parts Diagram

  • Title

1

Ariens 03609800

40IN. CHUTE DEFLECTOR

$89.99

$

Usually ships in 4-12 days

0

2

Ariens 02202900

BSHG-SLV .334 X .502 X 1.437

$5.99

$

In Stock, only 4 left!

0

3

Ariens 08307200

SG-TORS .095X.50X 1.0

$20.99

$

Usually ships in 4-12 days

0

4

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

5

Ariens 02709500

HINGE PLATE
(Superseded to 02709551)

$27.99

$

In Stock, only 1 left!

0

6

Ariens 06204200

BLT-RDHDSQNK .25-20X.75 GR5PL
(Superseded to 06219900)

$0.99

$

In Stock, Qty 20+

0

7

Ariens 07211500

V-BELT, 4L-WRAPPED

$50.99

$

Usually ships in 4-12 days

0

8

Ariens 06507700

NUT-LK-NYL.625-18 PL
(Superseded to 06530300)

$3.99

$

In Stock, only 3 left!

0

9

Ariens 06421200

WSHR-FL-STL .640X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

10

Ariens 05403900

BRG-BALL .625X1.375X.44
(Superseded to 05435100)

$14.99

$

In Stock, Qty 20+

0

11

Ariens 03615500

SPACER .640X.880X2.545

$27.99

$

In Stock, only 1 left!

0

12

Ariens 03602200

JACKSHAFT PULLEY

$219.99

$

Usually ships in 4-12 days

0

13

Ariens 02520500

CLEVIS PIN
(Superseded to 03624200)

$51.99

$

In Stock, only 1 left!

0

14

Ariens 06700100

PIN-COTR .09X.75 PL
(Superseded to 06706900)

$0.99

$

In Stock, Qty 10

0

15

Ariens 08311700

SG-TENS .105X.812X3.88 WLD 15

$7.99

$

In Stock, only 1 left!

0

16

Ariens 05710900

RG-RING-EXT .375X.025

$

$

Not available

17

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 05503600

BSHG-FLG .372X.500X.312X.625NY

$1.49

$

In Stock, Qty 20+

0

19

Ariens 03606900

IDLER ARM

$

$

Not available

20

Ariens 05915100

BLT-HEX .38-16X1.50 PL GR5
(Superseded to 05957900)

$1.49

$

In Stock, Qty 14

0

21

Ariens 07309300

IDLER-FLAT 3.00X.38

$37.99

$

In Stock, only 1 left!

0

22

Ariens 06512200

NUT-LK TOP .375-16 GR C YWZC

$2.49

$

Usually ships in 4-12 days

0

23

Ariens 03606400

PIN

$

$

Not available

24

Ariens 05804800

PIN-ROLL .125X.63

$

$

Not available

25

Ariens 03610000

40" PAN WELDMENT
(Superseded to 53600400)

$

$

Not available

26

Ariens 02527400

COVER

$

$

Not available

27

Ariens 03615400

L. SPINDLE SHEAVE

$90.99

$

Usually ships in 4-12 days

0

27

Ariens 03615300

R. SPINDLE SHEAVE

$75.99

$

Usually ships in 4-12 days

0

28

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

29

Ariens 06600300

KEY-WDRF .188X.75X.313 SAE 9

$1.49

$

In Stock, Qty 12

0

30

Ariens 03581700

MOWER ADJUSTMENT TAB

$

$

Not available

31

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 02747600

ROLLER CLEVIS
(Superseded to 02747651)

$27.99

$

In Stock, only 1 left!

0

33

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06701600

PIN-COTR .15 X 1.0 PL
(Superseded to 06712300)

$2.49

$

In Stock, Qty 5

0

35

Ariens 02747500

PIN-CLEV .371X3.25 YWZC

$5.99

$

In Stock, only 1 left!

0

36

Ariens 02745400

ROLLER

$15.99

$

In Stock, Qty 20+

0

37

Ariens 06408800

WSHR-FL-STL .755X1.250X.125
(Superseded to 06441500)

$3.99

$

In Stock, only 4 left!

0

38

Ariens 00341900

BEARING SLINGER

$22.99

$

In Stock, only 2 left!

0

39

Ariens 05412000

BRG-BALL .750X1.781X.61

$13.99

$

In Stock, Qty 7

0

40

Ariens 01336400

SPINDLE HOUSING
(Superseded to 01336451)

$

$

Not available

41

Ariens 02526400

SPACER .753X1.000X1.140

$26.99

$

Usually ships in 4-12 days

0

42

Ariens 05915400

BLT-HEX .38-16X.75 PL GR5
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

43

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 03037500

RETAINER HUB

$71.99

$

In Stock, only 2 left!

0

45

Ariens 03485500

BLADE TRAY 48

$20.99

$

In Stock, only 1 left!

0

46

Ariens 03607000

MOWER BLADE
(Superseded to 03624700)

$31.99

$

In Stock, Qty 5

0

47

Ariens 03616400

PLATE

$

$

Not available

48

Ariens 06300800

WSHR-LK .750X.188 MED PL
(Superseded to 06310300)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 06502500

NUT-JAM .75-10 PL
(Superseded to 06537700)

$2.49

$

In Stock, only 2 left!

0

50

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

51

Ariens 53600300

40" MOWER DECK ASSY COMPLETE

$

$

Not available

52

Ariens 53600400

40" MOWER DECK W/DECALS

Note: (Not Shown)

$

$

Not available

53

Ariens 53600800

40IN. JACKSHAFT UPDATE KIT
(Superseded to 53602500)

Note: (Not Shown)

$

$

Not available
