936005 (YT 15 G) - Ariens 40" Yard Tractor, 15hp Tecumseh, Gear (SN: 000101 & Above) ENGINE & BELT DRIVE Parts Diagram

40" Yard Tractor, 15hp Tecumseh, Gear

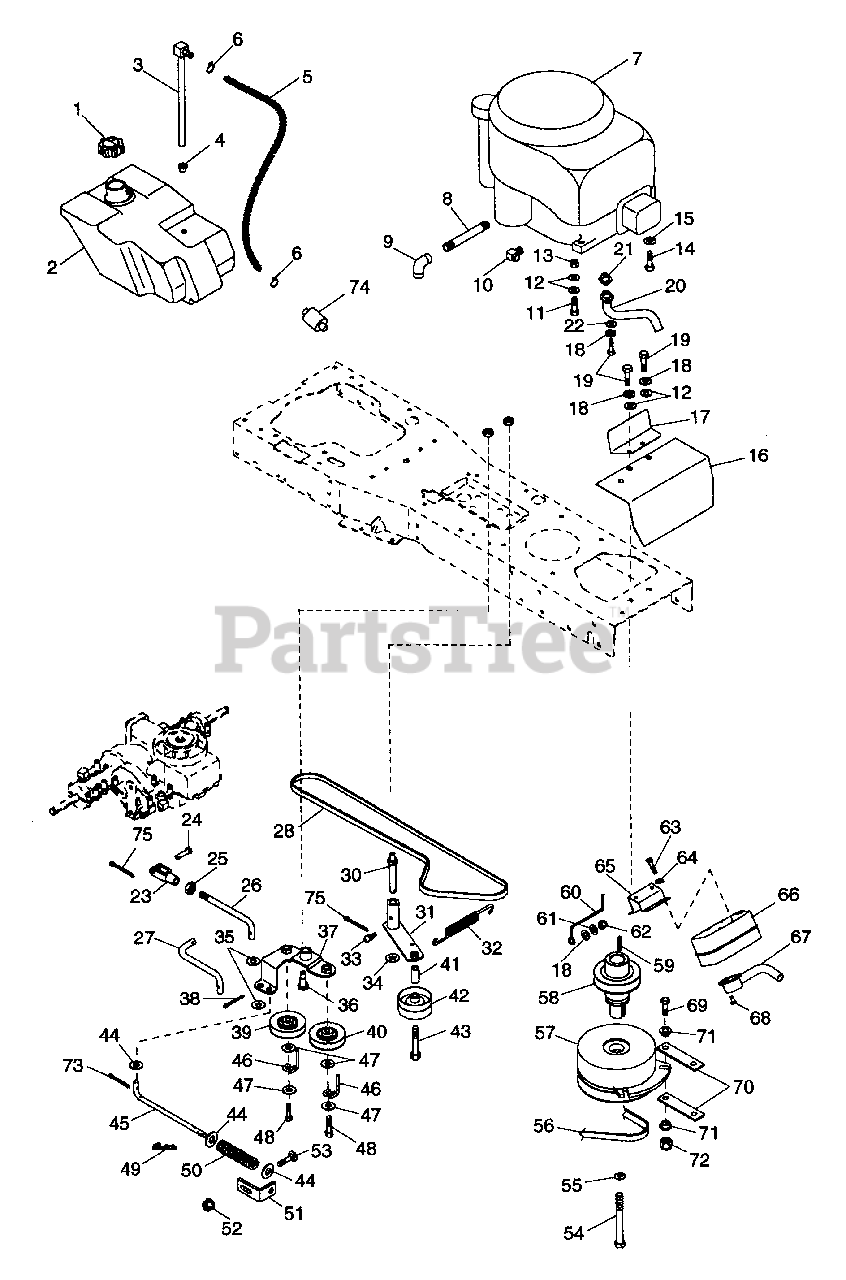

ENGINE & BELT DRIVE Parts Diagram

  • Title

1

Ariens 03601900

FUEL CAP
(Superseded to 01538400)

$15.99

$

Usually ships in 4-12 days

0

2

Ariens 03606100

FUEL TANK
(Superseded to 03627500)

$

$

Not available

3

Ariens 03606500

TANK FITTING

$

$

Not available

4

Ariens 07511400

BSHG-FLG .375 X 1.062 X .625 R

$3.49

$

In Stock, Qty 20+

0

5

Ariens 03609600

HOSE- FUEL LINE 34.00"

$

$

Not available

6

Ariens 02917200

CLAMP-HOSE WIR.490/.510X.092#8
(Superseded to 06939100)

$3.99

$

In Stock, Qty 10

0

7

Ariens 08232300

ENGINE 12.5HP TEC OHV125-

Note: (Used Only On Model(s): 936002).

$

$

Not available

7

Ariens 08233500

ENGINE 12.5HP TEC OHV125-

Note: (Used Only On Model(s): 936002).

$

$

Not available

7

Ariens 08233600

ENGINE 12.5HP TEC OHV125-

Note: (Used Only On Model(s): 936003).

$

$

Not available

7

Ariens 08232400

ENGINE 15HP TEC OHV15-

Note: (Used Only On Model(s): 936004).

$

$

Not available

7

Ariens 08233800

ENGINE 15HP TEC OHV15-

Note: (Used Only On Model(s): 936004).

$

$

Not available

7

Ariens 08232400

ENGINE 15HP TEC OHV15-

Note: (Used Only On Model(s): 936005).

$

$

Not available

8

Ariens 03475800

NIPPLE
(Superseded to 07000830)

$17.99

$

Usually ships in 4-12 days

0

9

Ariens 07023500

ELBOW .375-18 NPTF

$

$

Not available

10

Ariens 03524200

PIPE FITTING 90 DEG. X 3/8 ELB

$

$

Not available

11

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (Used Only On Model(s): 936002,003).

$1.49

$

In Stock, Qty 13

0

11

Ariens 05914000

BLT-HEX .31-18X1.50 PL GR5
(Superseded to 05952400)

Note: (Used Only On Model(s): 936004,005).

$1.49

$

In Stock, Qty 13

0

12

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (Used Only On Model(s): 936002,004).

$3.99

$

Usually ships in 4-12 days

0

12

Ariens 06409000

WSHR-FL-STL .328X.875X.062 PL
(Superseded to 06439400)

Note: (Used Only On Model(s): 936005).

$3.99

$

Usually ships in 4-12 days

0

13

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 936004,005).

$1.49

$

In Stock, Qty 20+

0

13

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

Note: (Used Only On Model(s): 936004,005).

$1.49

$

In Stock, Qty 20+

0

14

Ariens 07408800

SCR-TAP .375-16X1.25 HWH PL TR
(Superseded to 07414700)

Note: (Used Only On Model(s): 936004,005).

$2.99

$

In Stock, only 3 left!

0

15

Ariens 06303000

WSHR-LK-EXT .375X.050

Note: (Used Only On Model(s): 936004,005).

$

$

Not available

16

Ariens 03617200

SHIELD

Note: (Used Only On Model(s): 936002,003).

$

$

Not available

17

Ariens 03616600

HEAT SHIELD
(Superseded to 03645600)

Note: (Used Only On Model(s): 936002,003,004).

$

$

Not available

18

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (Used Only On Model(s): 936002).

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (Used Only On Model(s): 936003,004).

$0.99

$

In Stock, Qty 20+

0

18

Ariens 06303600

WSHR-LK .313X.078 PL MED
(Superseded to 06308600)

Note: (Used Only On Model(s): 936005).

$0.99

$

In Stock, Qty 20+

0

19

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

Note: (Used Only On Model(s): 936002,003,004).

$1.49

$

In Stock, Qty 20+

0

20

Ariens 03614800

EXHAUST TUBE WELDT- 12.5/13HP

Note: (Used Only On Model(s): 936002,003).

$

$

Not available

20

Ariens 03616500

EXHAUST TUBE WELDT- 15/16.5HP

Note: (Used Only On Model(s): 936004).

$

$

Not available

21

Ariens 03615000

GASKET- 12.5/13 TEC (#35-414)

Note: (Used Only On Model(s): 936002,003).

$5.99

$

Usually ships in 4-12 days

0

21

Ariens 03616200

GASKET:15-16.5HP TEC (#35-438)

Note: (Used Only On Model(s): 936004).

$9.99

$

Usually ships in 4-12 days

0

22

Ariens 06405700

WSHR-FL-STL .323X.625X.062 PL
(Superseded to 06436700)

Note: (Used Only On Model(s): 936002,003,004).

$1.49

$

In Stock, only 2 left!

0

23

Ariens 08800400

CLEVIS, .38-24 ADJ.

Note: (Used Only On Model(s): 936003,004).

$11.99

$

Usually ships in 4-12 days

0

24

Ariens 06811900

PIN-CLEV .375X.948 YWZC

Note: (Used Only On Model(s): 936003,004).

$4.99

$

In Stock, Qty 5

0

25

Ariens 06518800

NUT JAM .375-24 PL
(Superseded to 06534700)

Note: (Used Only On Model(s): 936003,004).

$2.49

$

In Stock, only 1 left!

0

26

Ariens 03615600

LINK

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

27

Ariens 03606000

CLUTCH LINK

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

28

Ariens 07216400

V-BELT, HA-WRAPPED

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

28

Ariens 07217700

V-BELT, HA-RAW EDGE

Note: (Used Only On Model(s): 936003,004).

$46.99

$

Usually ships in 4-12 days

0

29

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 03601700

SHOULDER STUD
(Superseded to 53603700)

$

$

Not available

31

Ariens 03601100

IDLER PIVOT ARM

$

$

Not available

32

Ariens 08305800

SG-TENS .080X.470X4.88 WLD 30

$14.99

$

Usually ships in 4-12 days

0

33

Ariens 07012600

FTG-LUBE .25-28X.256 YWZC
(Superseded to 07001806)

$

$

Not available

34

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

35

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

36

Ariens 07023400

BLT-SHLDR .38-16X1.25

$34.99

$

In Stock, only 1 left!

0

37

Ariens 03603600

IDLER PIVOT ARM

$

$

Not available

38

Ariens 06701800

PIN-COTR .12X.50 PL
(Superseded to 06711800)

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

38

Ariens 06701800

PIN-COTR .12X.50 PL
(Superseded to 06711800)

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

39

Ariens 07308900

IDLER - 2.25X.87

$34.99

$

In Stock, only 1 left!

0

40

Ariens 07309200

IDLER-V 3X.38

$37.99

$

In Stock, only 2 left!

0

41

Ariens 03604600

TUBE
(Superseded to 03638400)

$24.99

$

Usually ships in 4-12 days

0

42

Ariens 07314600

IDLER-FLAT 2.75X.38 PAINTED
(Superseded to 07333500)

$22.99

$

In Stock, Qty 9

0

43

Ariens 05904900

BLT-HEX .38-16X3.00 PL GR2
(Superseded to 05957800)

$2.49

$

In Stock, Qty 20+

0

44

Ariens 06422800

WSHR-FL-STL .328X.555X.06 PL

$

$

Not available

45

Ariens 03610100

ROD

$

$

Not available

46

Ariens 03617100

BELT FINGER
(Superseded to 03638300)

$51.99

$

Usually ships in 4-12 days

0

47

Ariens 06414500

WSHR-FL-STL .390X.750X.125 PL
(Superseded to 06444300)

$7.99

$

In Stock, Qty 8

0

48

Ariens 05902700

BLT-HEX .38-16X1.75 PL GR2
(Superseded to 05958500)

$1.49

$

In Stock, Qty 20+

0

49

Ariens 06701900

PIN-HAIR INT .06X.18X.77
(Superseded to 06700221)

$0.99

$

In Stock, Qty 13

0

50

Ariens 08324400

SG-COMP .080X.550X8.50 WLD38

$

$

Not available

51

Ariens 03604500

SPRING RETAINER BRKT

$

$

Not available

52

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

53

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

54

Ariens 05926200

SCR-CAP .44-20X4.00 GR5 HHPL
(Superseded to 05966800)

$6.99

$

Usually ships in 4-12 days

0

55

Ariens 06300500

WSHR-LK .438X.133 HVY
(Superseded to 06310700)

$2.99

$

Usually ships in 4-12 days

0

56

Ariens 07216500

V-BELT, 4L-RAW EDGE

$44.99

$

In Stock, only 1 left!

0

57

Ariens 03601800

ELECTRIC CLUTCH/BRAKE(1.8AMP)

Note: (1.8 AMP)

$258.99

$

In Stock, only 1 left!

0

58

Ariens 03605400

SHEAVE EXTENSION SHAFT
(Superseded to 03636500)

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

58

Ariens 03614200

SHEAVE EXTENSION SHAFT
(Superseded to 03636400)

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

59

Ariens 06603400

KEY-SQ .25 X 1.25 X .25 SAE

$3.99

$

In Stock, Qty 11

0

60

Ariens 03608800

BELT FINGER

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

60

Ariens 03608800

BELT FINGER

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

61

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 936002,005).

$0.99

$

In Stock, Qty 20+

0

61

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

Note: (Used Only On Model(s): 936003,004).

$0.99

$

In Stock, Qty 20+

0

62

Ariens 06506100

NUT-JAM .312-18 PL
(Superseded to 06536100)

Note: (Used Only On Model(s): 936002,005).

$0.99

$

In Stock, Qty 20+

0

62

Ariens 06506100

NUT-JAM .312-18 PL
(Superseded to 06536100)

Note: (Used Only On Model(s): 936003,004).

$0.99

$

In Stock, Qty 20+

0

63

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

Note: (Used Only On Model(s): 936002,003,004).

$0.99

$

In Stock, Qty 20+

0

64

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

Note: (Used Only On Model(s): 936002,003,004).

$

$

Not available

65

Ariens 03615700

BRACKET WELDT- MUFFLER

Note: (Used Only On Model(s): 936002,003,004).

$

$

Not available

66

Ariens 03611500

MUFFLER ASSY

Note: (Used Only On Model(s): 936002,003,004).

$242.99

$

In Stock, only 1 left!

0

67

Ariens 03614900

TAIL PIPE WELDT

Note: (Used Only On Model(s): 936002,003,004).

$

$

Not available

68

Ariens 07403400

SCR-TAP 8-32X.38 SL HWH PL 23
(Superseded to 07414500)

Note: (Used Only On Model(s): 936002,003,004).

$2.49

$

Usually ships in 4-12 days

0

69

Ariens 05928300

BLT-HEX 10-24X1.00 PL GR2
(Superseded to 05960800)

$3.99

$

Usually ships in 4-12 days

0

70

Ariens 03604700

LINK

$17.99

$

Usually ships in 4-12 days

0

71

Ariens 03015600

SPECIAL WASHER

$25.99

$

Usually ships in 4-12 days

0

72

Ariens 06506500

NUT-LK 10-24 NY PL
(Superseded to 06536000)

$0.99

$

In Stock, Qty 20+

0

73

Ariens 06700300

PIN-COTR .06X.50
(Superseded to 06712400)

$3.99

$

Usually ships in 4-12 days

0

74

Ariens 02910800

FUEL FILTER

$7.49

$

Usually ships in 4-12 days

0

75

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

Note: (Used Only On Model(s): 936002,005).

$0.99

$

In Stock, Qty 5

0

75

Ariens 06702400

PIN-COTR .12X.75 PL
(Superseded to 06707300)

Note: (Used Only On Model(s): 936003,004).

$0.99

$

In Stock, Qty 5

0
