936003 (YT 12 H) - Ariens 40" Yard Tractor, 12.5hp Tecumseh, Hydro (SN: 000101 & Above) HYDRO SPEED SELECTOR Parts Diagram

40" Yard Tractor, 12.5hp Tecumseh, Hydro

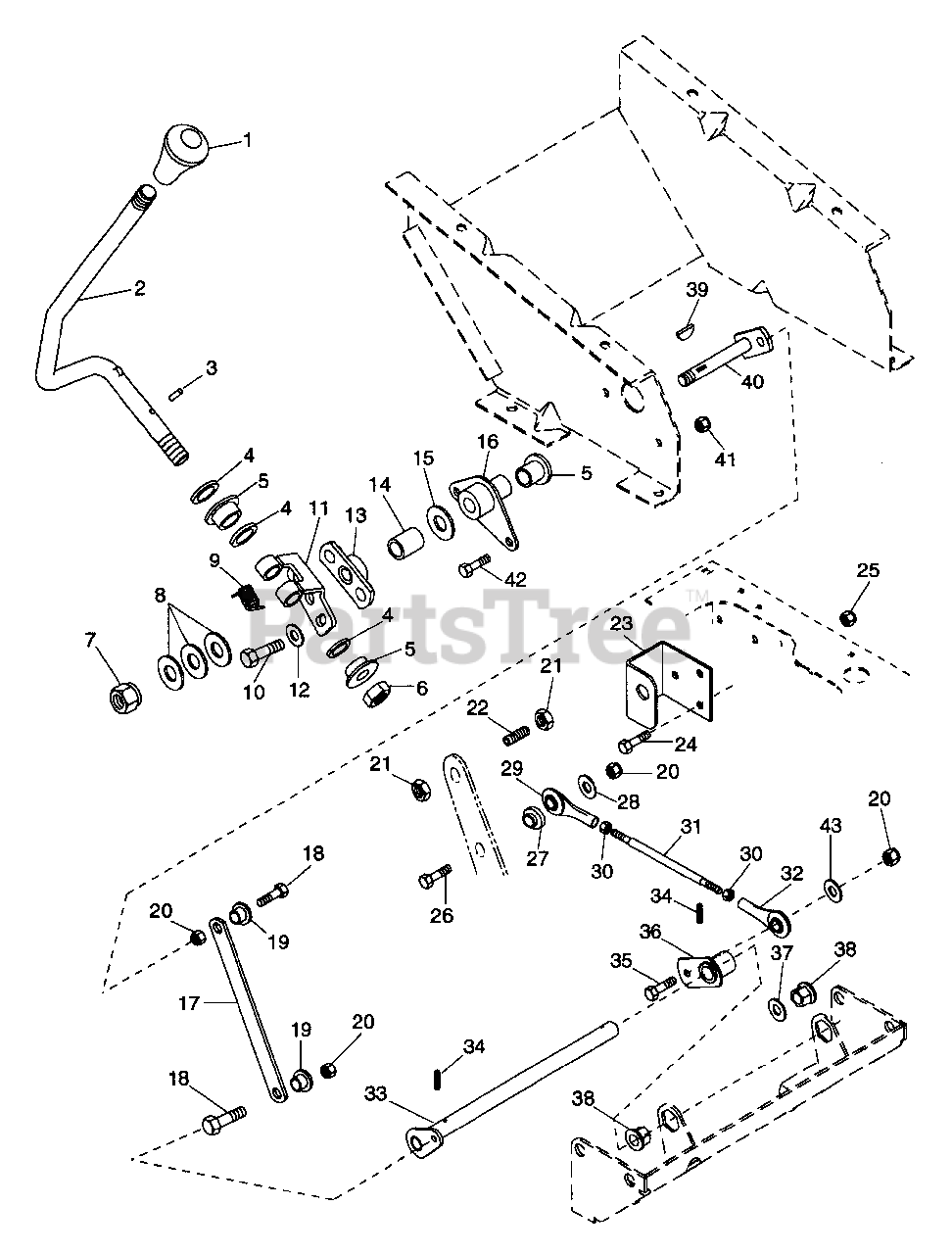

HYDRO SPEED SELECTOR Parts Diagram

  • Title

1

Ariens 07514500

KNOB

$23.99

$

Usually ships in 4-12 days

0

2

Ariens 03612500

SHIFT LEVER

$

$

Not available

3

Ariens 05800900

PIN-ROLL .125X1.00

$0.99

$

In Stock, Qty 20+

0

4

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

5

Ariens 05502500

BSHG-FLG .500X.625X.625X.875

$5.99

$

Usually ships in 4-12 days

0

6

Ariens 06512900

NUT-LK-NYL .50-13 GR 5 PL
(Superseded to 06540600)

$2.49

$

In Stock, only 3 left!

0

7

Ariens 06505400

NUT-LK-CTR .50-20 PL
(Superseded to 06530000)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 03463500

SPRING WASHER

$

$

Not available

9

Ariens 08325700

SG_TORS .08X.56X.65

$59.99

$

Usually ships in 4-12 days

0

10

Ariens 05914500

BLT-HEX .38-16X1.00 PL GR5
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

11

Ariens 03450200

OUTER ARM

$

$

Not available

12

Ariens 06409300

WSHR-FL-STL .382X.812X.062
(Superseded to 06435700)

$1.49

$

In Stock, Qty 20+

0

13

Ariens 03463400

ARM

$

$

Not available

14

Ariens 05515900

BSHG-SLV .500X.625X.500

$6.99

$

Usually ships in 4-12 days

0

15

Ariens 03463300

FRICTION WASHER

$

$

Not available

16

Ariens 03614200

SHEAVE EXTENSION SHAFT
(Superseded to 03636400)

$

$

Not available

17

Ariens 03612600

SHIFT LINK

$

$

Not available

18

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

19

Ariens 05513400

BSHG-FLG .265X.437X.250X.750

$2.49

$

In Stock, only 3 left!

0

20

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06500100

NUT-JAM .375-16 PL
(Superseded to 06500910)

$0.99

$

In Stock, Qty 20+

0

22

Ariens 06005300

SCR-SET .38-16X1.00 SKHCUP

$

$

Not available

23

Ariens 03616300

SWITCH BRACKET

$

$

Not available

24

Ariens 05900100

BLT-HEX .25-20X.75 PL GR2
(Superseded to 05946800)

$0.99

$

In Stock, Qty 20+

0

25

Ariens 06506600

NUT-LK-NYL .250-20 PL
(Superseded to 06531000)

$4.99

$

Usually ships in 4-12 days

0

26

Ariens 05905600

BLT-HEX .25-20X1.25 PL GR5
(Superseded to 05947400)

$1.99

$

In Stock, Qty 5

0

27

Ariens 05520200

BSHG-FLG .254X.371X.380X.500

$

$

Not available

28

Ariens 06400100

WSHR-FL-STL .250X.562X.049 PL
(Superseded to 06442300)

$1.99

$

Usually ships in 4-12 days

0

29

Ariens 03573200

ROD END, 1/4 RH

$

$

Not available

30

Ariens 06500400

NUT-HEX .250-28 YWZC

$1.99

$

Usually ships in 4-12 days

0

31

Ariens 03612800

SHIFT ROD

$

$

Not available

32

Ariens 03573300

ROD END, 1/4 LH

$94.99

$

Usually ships in 4-12 days

0

33

Ariens 03612100

CROSS SHAFT
(Superseded to 03632500)

$

$

Not available

34

Ariens 05804700

PIN-ROLL .125X.88

$0.99

$

In Stock, Qty 9

0

35

Ariens 05913200

BLT-HEX .25-20X1.00 GR2
(Superseded to 05947700)

$1.49

$

In Stock, Qty 9

0

36

Ariens 03612200

ARM & HUB

$

$

Not available

37

Ariens 06403900

WSHR-FL-STL .630X1.005X.062 PL
(Superseded to 06436100)

$0.99

$

In Stock, Qty 20+

0

38

Ariens 05510900

BSHG-FLG .625X.875X.750X1.19HX

$

$

Not available

39

Ariens 06600600

KEY-WDRF .125X.500X.203 SAE 3

$1.49

$

Usually ships in 4-12 days

0

40

Ariens 03612300

ROD

$

$

Not available

41

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

42

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

43

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

$0.99

$

In Stock, Qty 20+

0
