936003 (YT 12 H) - Ariens 40" Yard Tractor, 12.5hp Tecumseh, Hydro (SN: 000101 & Above) HOOD & DASH Parts Diagram

40" Yard Tractor, 12.5hp Tecumseh, Hydro

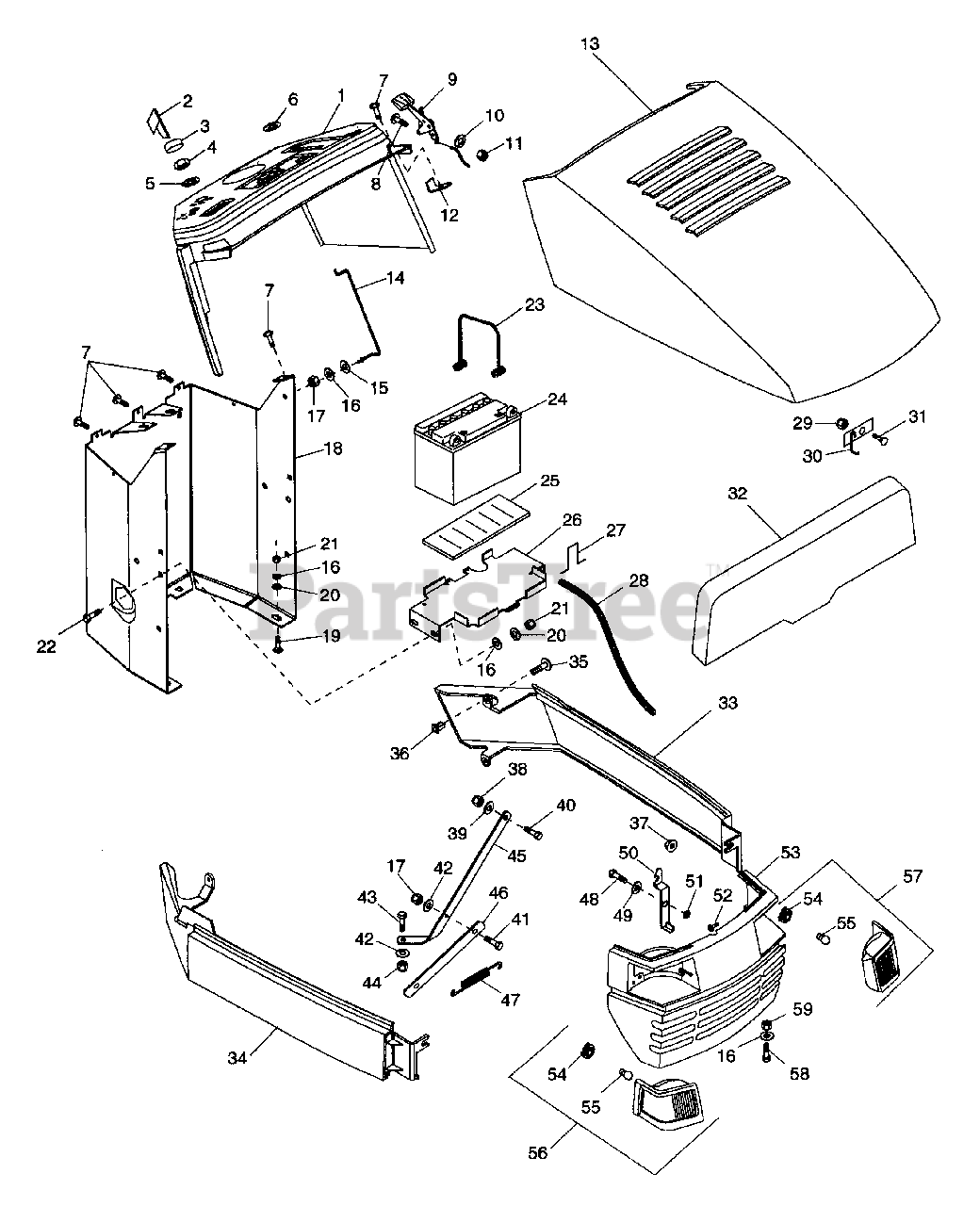

HOOD & DASH Parts Diagram

  • Title

1

Ariens 03600500

DASH
(Superseded to 03629500)

$

$

Not available

2

Ariens 02460700

KEY -W/CAP

$7.99

$

In Stock, Qty 20+

0

3

Ariens 07517700

CAP - IGNITION SWITCH

$3.99

$

Usually ships in 4-12 days

0

4

Ariens 06517400

NUT- PANEL .562-24 GRECO

$20.99

$

In Stock, only 1 left!

0

5

Ariens 06302900

WSHR-LK-INT .563X.040 PL
(Superseded to 06310900)

$2.49

$

In Stock, only 2 left!

0

6

Ariens 06418000

WSHR-FL-STL .520X.827X.062 YZ
(Superseded to 06441100)

$2.49

$

In Stock, only 2 left!

0

7

Ariens 07402600

SCR-TAP 10-24X.375 CRPH 1A
(Superseded to 07406900)

$2.49

$

Usually ships in 4-12 days

0

8

Ariens 06101200

SCR-MCH 10-24X.50 SLRH PL
(Superseded to 06117600)

$2.99

$

Usually ships in 4-12 days

0

9

Ariens 06920500

THROTTLE CONTROL

$

$

Not available

10

Ariens 06301100

WSHR-LK 10X.047 MED PL
(Superseded to 06308100)

$1.49

$

Usually ships in 4-12 days

0

11

Ariens 06505500

NUT-HEX 10-24 PL

$

$

Not available

12

Ariens 03611300

TAB

$

$

Not available

13

Ariens 03600100

HOOD- ORANGE
(Superseded to 03629100)

$

$

Not available

14

Ariens 03613800

HOOD PROP ROD

$

$

Not available

15

Ariens 01320200

WAVE WASHER .390X.655X.110

$3.49

$

In Stock, Qty 7

0

16

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

17

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

$0.99

$

In Stock, Qty 20+

0

18

Ariens 03598900

DASH TOWER
(Superseded to 03627400)

$

$

Not available

19

Ariens 06204100

BLT-RDHDSQNK.31-18X.75GR5SHTPL
(Superseded to 06220800)

$2.49

$

In Stock, Qty 20+

0

20

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

21

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

22

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

$

$

Not available

23

Ariens 07507500

BATTERY STRAP

$14.99

$

Usually ships in 4-12 days

0

24

Ariens 03603900

BATTERY
(Superseded to 03621100)

$

$

Not available

25

Ariens 03564300

BATTERY TRAY

$

$

Not available

26

Ariens 03602600

BATTERY SUPPORT
(Superseded to 53602600)

$

$

Not available

27

Ariens 02515200

HOOK
(Superseded to 03640900)

$38.99

$

Usually ships in 4-12 days

0

28

Ariens 03609700

DRAIN HOSE

$

$

Not available

29

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

30

Ariens 03614600

HOOD CATCH ASSY
(Superseded to 53603100)

$

$

Not available

31

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

32

Ariens 03608000

BAFFLE- HOOD

Note: (Used Only On Model(s): 936002,003).

$

$

Not available

32

Ariens 03616800

BAFFLE- HOOD 15/16.5HP

Note: (Used Only On Model(s): 936004,005).

$

$

Not available

33

Ariens 03600400

L.H. UPPER PANEL
(Superseded to 03629400)

$

$

Not available

34

Ariens 03600300

R.H. UPPER PANEL
(Superseded to 03629300)

$

$

Not available

35

Ariens 07406400

SCR-TAP 10-12X.50 CRPH PL A BL

$3.49

$

Usually ships in 4-12 days

0

36

Ariens 07507600

PLASTIC GROMMET

$0.99

$

In Stock, Qty 10

0

37

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

$2.99

$

In Stock, only 1 left!

0

38

Ariens 06501800

NUT-HEX .375-16
(Superseded to 06529400)

$0.99

$

In Stock, Qty 20+

0

39

Ariens 06302100

WSHR-LK .375X.094 MED PL
(Superseded to 06308800)

$0.99

$

In Stock, Qty 20+

0

40

Ariens 05900400

BLT-HEX .38-16X1.00 PL
(Superseded to 05948700)

$1.49

$

In Stock, Qty 20+

0

41

Ariens 05902800

BLT-HEX .25-20X.50 PL GR2
(Superseded to 05947900)

$0.99

$

In Stock, Qty 20+

0

42

Ariens 06404300

WSHR-FL-STL.406X.812X.065PL
(Superseded to 06436200)

$0.99

$

In Stock, Qty 20+

0

43

Ariens 05902300

BLT-HEX .38-16X.75 PL GR2
(Superseded to 05959400)

$1.49

$

In Stock, Qty 20+

0

44

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

45

Ariens 03613600

GRILLE SUPPORT

$

$

Not available

46

Ariens 03613700

GRILLE BRACE

$

$

Not available

47

Ariens 08314900

SG-TENS .035X.45X2.75 WLD 3.5

$13.99

$

In Stock, only 1 left!

0

48

Ariens 07410000

SCR-TAP 12-24X.75 HWH PL TR
(Superseded to 07414600)

$3.49

$

Usually ships in 4-12 days

0

49

Ariens 06403700

WSHR-FL-STL .281X1.250X.048PL

$

$

Not available

50

Ariens 03607300

HOOD LATCH
(Superseded to 53603100)

$

$

Not available

51

Ariens 05518200

BSHG-FLG .500X.625X.148

$

$

Not available

52

Ariens 07400100

SCR-TAP 10-12X.50 CRPH PL A

$

$

Not available

53

Ariens 03600200

GRILL
(Superseded to 03646200)

$

$

Not available

54

Ariens 03617500

LAMP SOCKET

$

$

Not available

55

Ariens 03420500

HEADLIGHT BULB, 1156

$30.99

$

In Stock, only 1 left!

0

56

Ariens 03602100

HEADLIGHT- R.H.

$

$

Not available

57

Ariens 03602000

HEADLIGHT- L.H.

$

$

Not available

58

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

59

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+
