936003 (YT 12 H) - Ariens 40" Yard Tractor, 12.5hp Tecumseh, Hydro (SN: 000101 & Above) FRAME & REAR DECK Parts Diagram

40" Yard Tractor, 12.5hp Tecumseh, Hydro

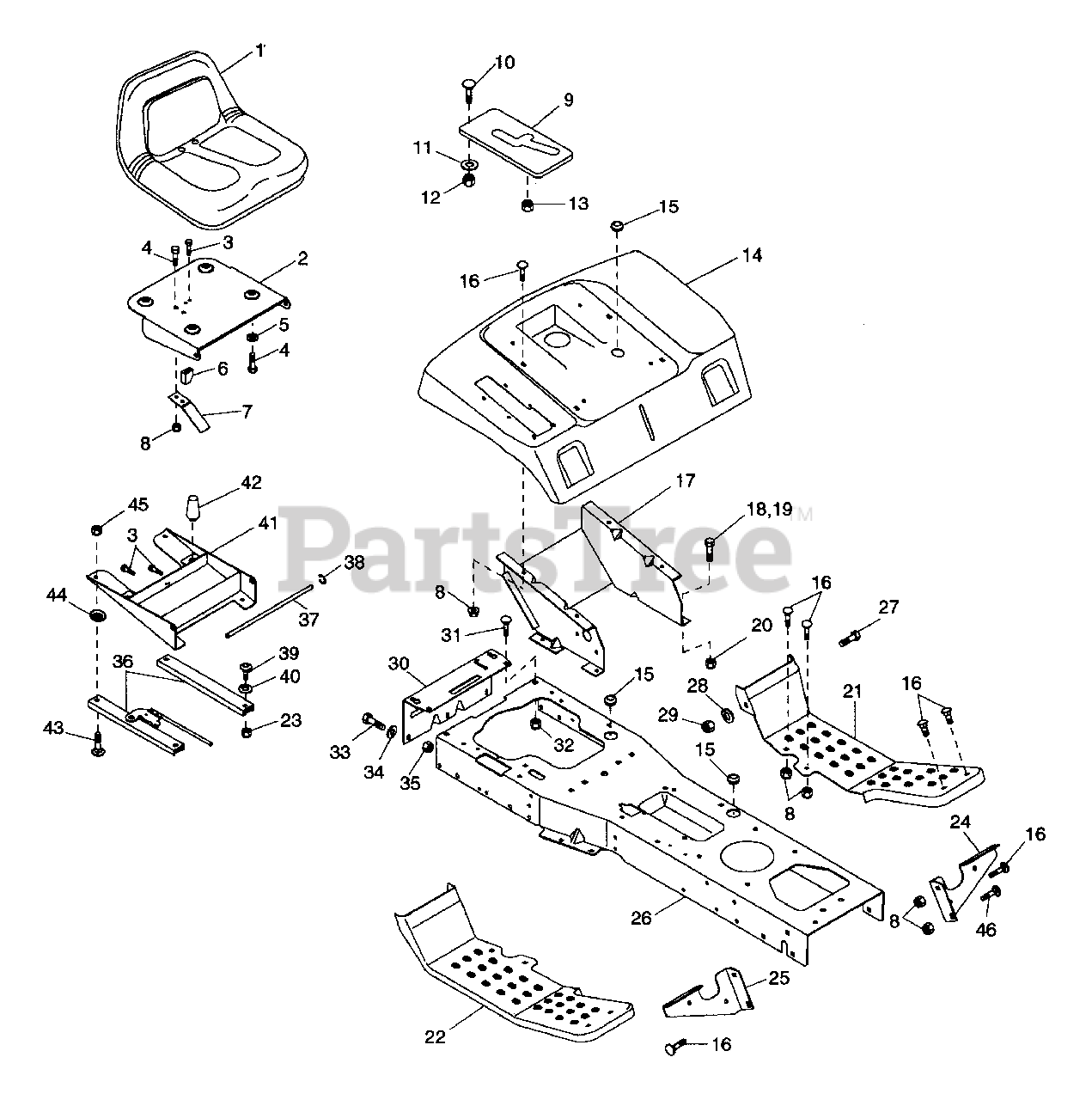

FRAME & REAR DECK Parts Diagram

  • Title

1

Ariens 03606700

SEAT- V-560
(Superseded to 00366300)

$

$

Not available

2

Ariens 03607800

SEAT PIVOT PLATE

$

$

Not available

3

Ariens 07404500

SCR-TAP 12-24X.50 HWH PL TR
(Superseded to 07411900)

$2.49

$

In Stock, Qty 11

0

4

Ariens 05902200

BLT-HEX .31-18X.75 PL GR2
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

5

Ariens 06300300

WSHR-LK .312X.097 PL HVY
(Superseded to 06307400)

$0.99

$

In Stock, Qty 20+

0

6

Ariens 03609900

ACTUATOR- PLASTIC

$

$

Not available

7

Ariens 03616700

SPRING PLATE

$

$

Not available

8

Ariens 06507800

NUT-FLG. .312-18 PL
(Superseded to 06530400)

$1.49

$

In Stock, Qty 20+

0

9

Ariens 03450000

INSERT

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

9

Ariens 03607400

INSERT

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

10

Ariens 06107300

SCR-MCH .25-20X .75 CRFL PL
(Superseded to 21056400)

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

11

Ariens 06412700

WSHR-FL-STL.281X.62X.065 PL
(Superseded to 06437300)

Note: (Used Only On Model(s): 936002,005).

$0.99

$

In Stock, Qty 20+

0

12

Ariens 06504000

NUT-LK-CTR .250-20 PL
(Superseded to 06529700)

Note: (Used Only On Model(s): 936002,005).

$0.99

$

In Stock, Qty 20+

0

13

Ariens 07008000

NUT-SELF-THRDNG FITS.25 STUDPL

Note: (Used Only On Model(s): 936003,004).

$2.99

$

In Stock, only 1 left!

0

14

Ariens 03616100

REAR DECK- YT GEAR
(Superseded to 03632100)

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

14

Ariens 03616000

REAR DECK- HYDRO

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

15

Ariens 07506500

GROMMET 1.0ID X 1.38 OD

$3.49

$

In Stock, only 1 left!

0

16

Ariens 06203300

BLT-RDHDSQNK .312-18X.62SHTPL
(Superseded to 06212200)

$1.49

$

In Stock, Qty 20+

0

17

Ariens 03606200

DECK SUPPORT

$

$

Not available

18

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

Note: (Used Only On Model(s): 936003,004).

$2.49

$

In Stock, only 2 left!

0

18

Ariens 05903400

BLT-HEX .31-18X.88 PL GR2
(Superseded to 05947800)

Note: (Used Only On Model(s): 936002,005).

$2.49

$

In Stock, only 2 left!

0

19

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

Note: (Used Only On Model(s): 936003,004).

$

$

Not available

19

Ariens 05900200

BLT-HEX .31-18X.63 PL GR 2
(Superseded to 05952200)

Note: (Used Only On Model(s): 936002,005).

$

$

Not available

20

Ariens 06504200

NUT-LK .312-18 GR A PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

21

Ariens 03605100

FOOTREST LH

$

$

Not available

22

Ariens 03605000

FOOTREST RH

$

$

Not available

23

Ariens 06501500

NUT-HEX .312-18
(Superseded to 06529200)

$0.99

$

In Stock, Qty 10

0

24

Ariens 03610200

L. FOOT REST BRACE

$

$

Not available

25

Ariens 03610300

R. FOOT REST BRACE

$

$

Not available

26

Ariens 03603800

MAIN FRAME

$

$

Not available

27

Ariens 05908000

BLT-HEX .25-20X.63 PL GR2
(Superseded to 05932000)

$1.99

$

In Stock, only 1 left!

0

28

Ariens 06300200

WSHR-LK .250X.077 HVY PL
(Superseded to 06308000)

$

$

Not available

29

Ariens 06503200

NUT-HEX .250-20 PL
(Superseded to 06533200)

$0.99

$

In Stock, Qty 13

0

30

Ariens 03601600

DRAW BAR

$

$

Not available

31

Ariens 06207800

BLT-RDHDSQNK .375-16X.75 GR5PL
(Superseded to 06223900)

$1.49

$

In Stock, only 4 left!

0

32

Ariens 06503900

NUT-LK-CTR .375-16 GR A PL
(Superseded to 06529600)

$1.49

$

In Stock, Qty 20+

0

33

Ariens 05913500

BLT-HEX .31-18X.75 PL GR5
(Superseded to 05947000)

$1.49

$

In Stock, Qty 20+

0

34

Ariens 06400700

WSHR-FL-STL.312X.734X.065PL
(Superseded to 06435800)

$0.99

$

In Stock, Qty 20+

0

35

Ariens 06512400

NUT-LK-TOP .312-18 GR C PL
(Superseded to 06529800)

$1.49

$

In Stock, Qty 20+

0

36

Ariens 03600800

SEAT SLIDES -(RAME TAK-3010-4)

Note: (RAME TAK 3010-4)

$104.99

$

Usually ships in 4-12 days

0

37

Ariens 03604900

PIVOT ROD

$

$

Not available

38

Ariens 05710600

RG-RTNG-EXT .375X.035 TYP E

$0.99

$

In Stock, Qty 20+

0

39

Ariens 07008100

SCR-CAP BTHD.31-18X.50 GR5 YZ

$

$

Not available

40

Ariens 06303200

WSHR-LK-EXT .313X.030 PL

$2.49

$

Usually ships in 4-12 days

0

41

Ariens 03607200

SEAT BOX

$

$

Not available

42

Ariens 03600700

SEAT SPRING BUMPER

$

$

Not available

43

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

44

Ariens 03418300

SEAT SLIDE SPACER

$4.49

$

Usually ships in 4-12 days

0

45

Ariens 06506200

NUT-LK-NYL.312-18 PL
(Superseded to 06530200)

$0.99

$

In Stock, Qty 20+

0

46

Ariens 06203100

BLT-RDHDSQNK .31-18X1.0 SHT PL
(Superseded to 06200237)

$2.49

$

In Stock, only 3 left!

0

46

Ariens 03608300

BELT FINGER
(Superseded to 03638300)

Note: (Used Only On Model(s): 936002,005).

$51.99

$

Usually ships in 4-12 days

0

46

Ariens 03608300

BELT FINGER
(Superseded to 03638300)

Note: (Used Only On Model(s): 936003,004).

$51.99

$

Usually ships in 4-12 days

0
