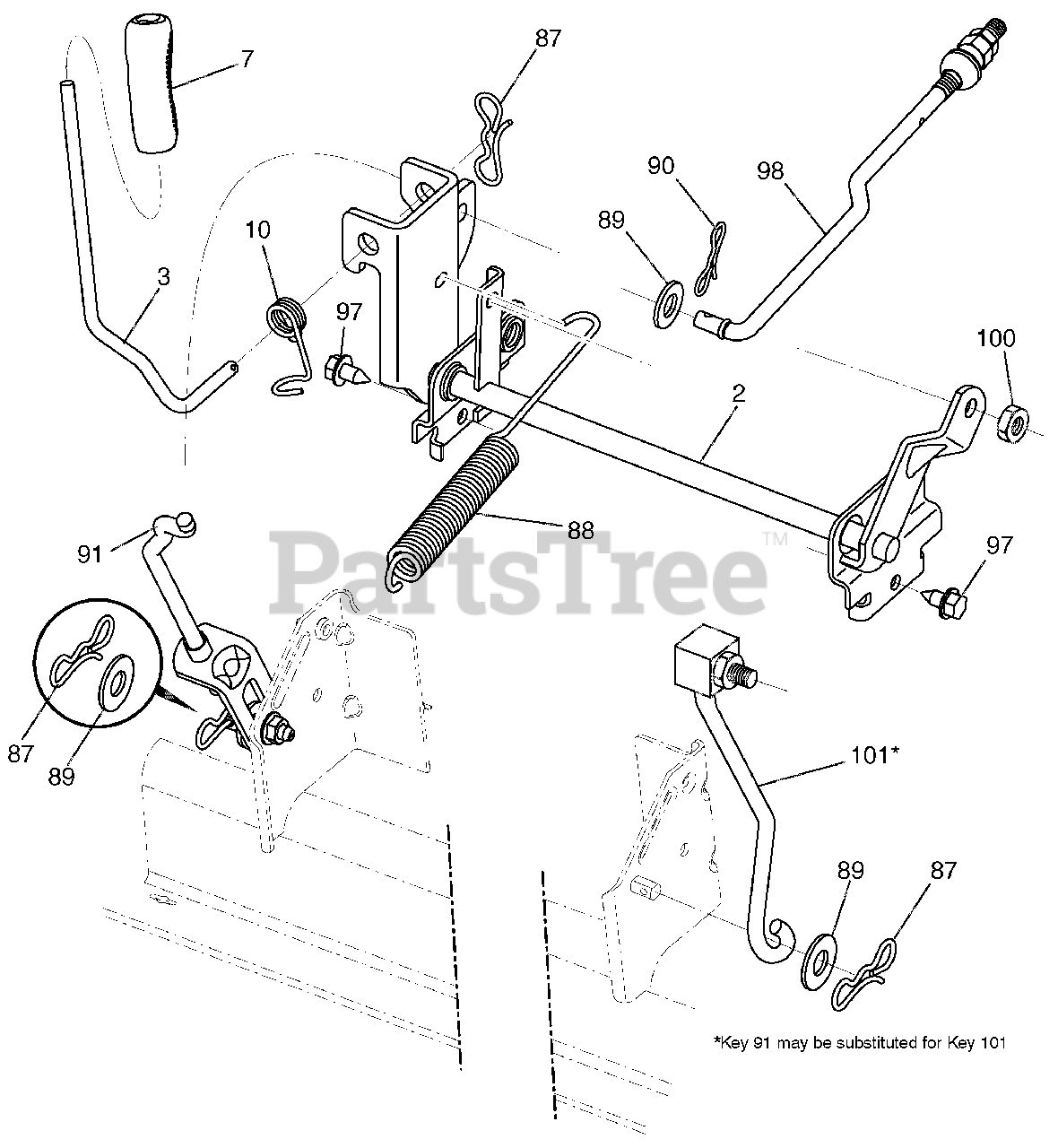

936001 (960460031-00) - Ariens 46" Precision Hydro Tractor Mower Lift Parts Diagram

46" Precision Hydro Tractor

Mower Lift Parts Diagram

  • Title

2

Ariens 21547240

SHAFT ASM.LIFT.CROSS.HD.
(Superseded to 21547008)

$109.99

$

In Stock, only 1 left!

0

3

Ariens 21546358

LEVER.LIFT.HANDLE.LT

$

$

Not available

7

Ariens 21547565

GRIP LEVER 5625 LD BLACK 428

$

$

Not available

10

Ariens 21546397

SPRING.TORSION.HANDLE.LIFT

$6.49

$

In Stock, only 2 left!

0

87

Ariens 21546322

PIN.COTTER.7/16.BOW TIE LOCK

$3.99

$

Usually ships in 4-12 days

0

88

Ariens 21546638

SPRING.LIFT ASSIST

$11.99

$

In Stock, Qty 6

0

89

Ariens 21546292

WASHER.CLEAR ZINC

$6.49

$

In Stock, Qty 20+

0

90

Ariens 21546321

PIN.COTTER.5/16.BOW TIE LOCK

$3.99

$

Usually ships in 4-12 days

0

91

Ariens 21546344

LINK ASM.LIFT.LH.REAR

$

$

Not available

97

Ariens 21546181

SCREW.HEXWSH THDR3/8-16X3/4.BL
(Superseded to 07400129)

$1.49

$

In Stock, Qty 20+

0

98

Ariens 21546360

LINK ASM.SUSP.FRONT.MWR.11

$

$

Not available

100

Ariens 21546794

NUT.CENTERLOCK.3/8-16 UNC.

$3.49

$

In Stock, Qty 9

0

101

Ariens 21546620

LINK ASM.LIFT.FIXED.38/42/46"

$18.99

$

In Stock, only 1 left!

0
